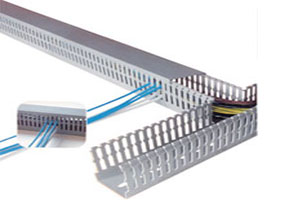

Wiring Ducts

Wiring Ducts - Narrow Slot
Article No. Type Description Duct Size
W X H (mm)
Duct Size
W X H (Inch)
Meter/Box
01 17 01250 TBWDN25X25LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 25 0.98 x 0.98 120
01 17 01066 TBWDN25X40LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 40 0.98 x 1.57 96
01 17 01586 TBWDN25X45LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 45 0.98 x 1.77 96
01 17 01251 TBWDN25X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 60 0.98 x 2.36 48
01 17 01588 TBWDN25X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 80 0.98 x 3.15 24
01 17 01584 TBWDN25X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 100 0.98 x 3.94 24
01 17 01252 TBWDN30X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 30 x 80 1.18 x 3.15 48
01 17 01068 TBWDN40X40LG2 Wiring Duct slotted wall, Light Grey, 2 meter 40 x 40 1.57 x 1.57 64
01 17 01070 TBWDN40X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 40 x 60 1.57 x 2.36 48
01 17 01072 TBWDN40X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 40 x 80 1.57 x 3.15 32
01 17 01253 TBWDN40X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 40 x 100 1.57 x 3.94 16
01 17 01590 TBWDN45X45LG2 Wiring Duct slotted wall, Light Grey, 2 meter 45 x 45 1.77 x 1.77 64
01 17 01592 TBWDN60X40LG2 Wiring Duct slotted wall, Light Grey, 2 meter 60 x 40 2.36 x 1.57 24
01 17 01074 TBWDN60X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 60 x 60 2.36 x 2.36 36
01 17 01076 TBWDN60X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 60 x 80 2.36 x 3.15 24
01 17 01254 TBWDN60X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 60 x 100 2.36 x 3.94 12
01 17 01596 TBWDN80X40LG2 Wiring Duct slotted wall, Light Grey, 2 meter 80 x 40 3.15 x 1.57 16
01 17 01598 TBWDN80X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 80 x 60 3.15 x 2.36 12
01 17 01255 TBWDN80X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 80 x 80 3.15 x 3.15 16
01 17 01594 TBWDN80X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 80 x 100 3.15 x 3.94 8
01 17 01582 TBWDN100X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 100 x 60 3.94 x 0.98 12
01 17 02670 TBWDN100X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 100 x 80 3.94 x 3.15 8
01 17 01256 TBWDN100X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 100 x 100 3.94 x 3.94 8
01 17 02672 TBWDN120X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 120 x 80 4.72 x 3.15 8
Wiring Ducts - Un-Slotted (Solid Wall)
01 17 01236 TBWDS25X25LG2 Wiring Duct solid wall, Light Grey, 2 meter 25 x 25 0.98 x 0.98 120
01 17 01084 TBWDS25X40LG2 Wiring Duct solid wall, Light Grey, 2 meter 25 x 40 0.98 x 1.57 96
01 17 01604 TBWDS25X45LG2 Wiring Duct solid wall, Light Grey, 2 meter 25 x 45 0.98 x 1.77 96
01 17 01237 TBWDS25X60LG2 Wiring Duct solid wall, Light Grey, 2 meter 25 x 60 0.98 x 2.36 48
01 17 01606 TBWDS25X80LG2 Wiring Duct solid wall, Light Grey, 2 meter 25 x 80 0.98 x 3.15 24
01 17 01602 TBWDS25X100LG2 Wiring Duct solid wall, Light Grey, 2 meter 25 x 100 0.98 x 3.94 24
01 17 01238 TBWDS30X80LG2 Wiring Duct solid wall, Light Grey, 2 meter 30 x 80 1.18 x 3.15 48
01 17 01085 TBWDS40X40LG2 Wiring Duct solid wall, Light Grey, 2 meter 40 x 40 1.57 x 1.57 64
01 17 01083 TBWDS40X60LG2 Wiring Duct solid wall, Light Grey, 2 meter 40 x 60 1.57 x 2.36 48
01 17 01086 TBWDS40X80LG2 Wiring Duct solid wall, Light Grey, 2 meter 40 x 80 1.57 x 3.15 32
01 17 01239 TBWDS40X100LG2 Wiring Duct solid wall, Light Grey, 2 meter 40 x 100 1.57 x 3.94 16
01 17 01608 TBWDS45X45LG2 Wiring Duct solid wall, Light Grey, 2 meter 45 x 45 1.77 x 1.77 64
01 17 01610 TBWDS60X40LG2 Wiring Duct solid wall, Light Grey, 2 meter 60 x 40 2.36 x 1.57 24
01 17 01088 TBWDS60X60LG2 Wiring Duct solid wall, Light Grey, 2 meter 60 x 60 2.36 x 2.36 36
01 17 01087 TBWDS60X80LG2 Wiring Duct solid wall, Light Grey, 2 meter 60 x 80 2.36 x 3.15 24
01 17 01240 TBWDS60X100LG2 Wiring Duct solid wall, Light Grey, 2 meter 60 x 100 2.36 x 3.94 12
01 17 01614 TBWDS80X40LG2 Wiring Duct solid wall, Light Grey, 2 meter 80 x 40 3.15 x 1.57 16
01 17 01616 TBWDS80X60LG2 Wiring Duct solid wall, Light Grey, 2 meter 80 x 60 3.15 x 2.36 12
01 17 01241 TBWDS80X80LG2 Wiring Duct solid wall, Light Grey, 2 meter 80 x 80 3.15 x 3.15 16
01 17 01612 TBWDS80X100LG2 Wiring Duct solid wall, Light Grey, 2 meter 80 x 100 3.15 x 3.94 8
01 17 01600 TBWDS100X60LG2 Wiring Duct solid wall, Light Grey, 2 meter 100 x 60 3.94 x 2.36 12
01 17 02736 TBWDS100X80LG2 Wiring Duct solid wall, Light Grey, 2 meter 100 x 80 3.94 x 3.15 8
01 17 01242 TBWDS100X100LG2 Wiring Duct solid wall, Light Grey, 2 meter 100 x 100 3.94 x 3.94 8
01 17 02737 TBWDS120X80LG2 Wiring Duct solid wall, Light Grey, 2 meter 120 x 80 4.72 x 3.15 8
Wiring Ducts - Wide Slot
01 17 02546 TBWDW25X25LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 25 0.98 x 0.98 120
01 17 02547 TBWDW25X40LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 40 0.98 x 1.57 96
01 17 02548 TBWDW25X45LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 45 0.98 x 1.77 96
01 17 02549 TBWDW25X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 60 0.98 x 2.36 48
01 17 02517 TBWDW25X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 80 0.98 x 3.15 24
01 17 02550 TBWDW25X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 25 x 100 0.98 x 3.94 24
01 17 02519 TBWDW30X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 30 x 80 1.18 x 3.15 48
01 17 02551 TBWDW40X40LG2 Wiring Duct slotted wall, Light Grey, 2 meter 40 x 40 1.57 x 1.57 64
01 17 02552 TBWDW40X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 40 x 60 1.57 x 2.36 48
01 17 02521 TBWDW40X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 40 x 80 1.57 x 3.15 32
01 17 02553 TBWDW40X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 40 x 100 1.57 x 3.94 16
01 17 02554 TBWDW45X45LG2 Wiring Duct slotted wall, Light Grey, 2 meter 45 x 45 1.77 x 1.77 64
01 17 02555 TBWDW60X40LG2 Wiring Duct slotted wall, Light Grey, 2 meter 60 x 40 2.36 x 1.57 24
01 17 02556 TBWDW60X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 60 x 60 2.36 x 2.36 36
01 17 02523 TBWDW60X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 60 x 80 2.36 x 3.15 24
01 17 02557 TBWDW60X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 60 x 100 2.36 x 3.94 12
01 17 02558 TBWDW80X40LG2 Wiring Duct slotted wall, Light Grey, 2 meter 80 x 40 3.15 x 1.57 16
01 17 02559 TBWDW80X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 80 x 60 3.15 x 2.36 12
01 17 02525 TBWDW80X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 80 x 80 3.15 x 3.15 16
01 17 02560 TBWDW80X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 80 x 100 3.15 x 3.94 8
01 17 02561 TBWDw100X60LG2 Wiring Duct slotted wall, Light Grey, 2 meter 100 x 60 3.94 x 0.98 12
01 17 02674 TBWDW100X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 100 x 80 3.94 x 3.15 8
01 17 02562 TBWDW100X100LG2 Wiring Duct slotted wall, Light Grey, 2 meter 100 x 100 3.94 x 3.94 8
01 17 02676 TBWDW120X80LG2 Wiring Duct slotted wall, Light Grey, 2 meter 120 x 80 4.72 x 3.15 8
TOOLS AND ACCESSORIES
01 17 00687 TRIT Rivet installation tool
01 17 00688 TWTCT Wiring Duct cutting tool
01 17 00689 TNR Rivet
