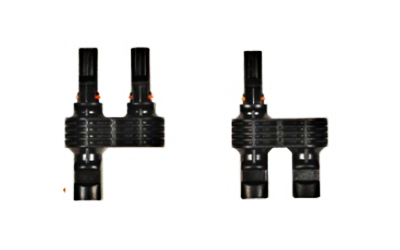

‘elmex’ has developed branch connectors EBPV4M and EBPV4F to facilitate parallel connection of photovoltaic male or female straight connectors depending on on-site application. The branch connector has 3 branches, 2 for inputs either male or female and 1 for output either male or female. ‘elmex’ branch connector are constructed using simple metallic component, optimizing its performance. The branch connector is easy to connect and disconnect without help of any accessory and this it is easy to use. ‘elmex’ branch connector is IP67 protected and has mating compatibility with ‘elmex’ make straight connector EMPV4.
| Description | Elmex Specification |
| Rated Voltage | 1000 V DC |
| Rated Current | 25 A(2.5 mm2), 30 A(4.0 mm2, 6.0 mm2) |
| Test Voltage | 6 KV (50 Hz) |
| Contact Material | Copper with Tin Plating |
| Degree of Protection | IP 67 |
| Operating Temperature | -45°C to 90°C |
| Safety Class | II |
| Contact Resistance | < 0.5 Nm |
| Insertion Force | ≤50 N |
| Withdrawal Force | ≥50 Nm |
| Suitable Cable | 2.5 mm2/4.0 mm2/6.0 mm2 |
