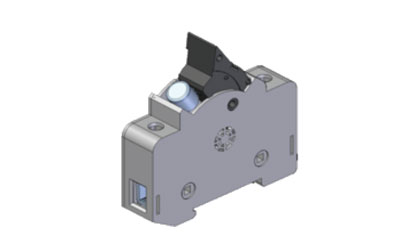

'elmex’ introduces fuse terminal block for photovoltaic applications. The fuse block is constructed as per Standard IEC 60269-1 and is suitable for cylindrical fuse size 10mm x 38mm. The fuse terminal block find applications in the array junction box for string protection.
| Description | Elmex Specification |
| Rated Voltage | 1000 V DC |
| Rated Current | 30A |
| Degree of Protection | IP 20 |
| Dimensions (W x H x P, in mm) | 78 x 62 x18 |
| Fuse Link Size (in mm) | 10 x 38 |
| Fuse Link Type | gPV (Cylindrical) |
| Fuse Link Rated Current (Range) | 1A - 30A |
