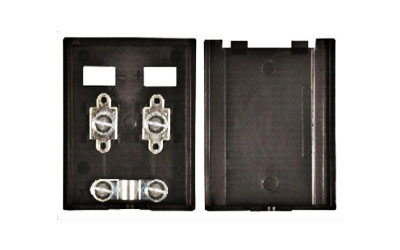

‘elmex’ has developed Junction Box suitable for Solar Street Light Panel application. ‘elmex’ street light Junction Box is suitable for 1000 VDC application and is designed with sliding snap fit locking arrangement. ‘elmex’’ EPVJB3 & EPVJB6 are suitable with 2-In and 1-Out cable connection
Description | Elmex Specification EPVJB3 | Elmex Specification EPVJB6 |
Rated Voltage | 1000 V DC | 1000 V DC |
Rated Current | 6A | 3A |
Degree of Protection | IP 65 | IP 65 |
Contact Material | Brass with Tin and Nickel Plating | Brass with Tin and Nickel Plating |
Operating Temperature | - 40°C to 85°C | - 40°C to 85°C |
Application | 30 W to 50 W | 3 W to 20 W |
