| Output Contact | 2 C/O (DPDT) |
| Range | 1/3/10/30 sec/min/hr |
| Operating Modes | ON delay / Interval |
| Accuracy | Setting: ± 5% of full scale, Repeat: ±0.5% of 50ms (whichever is greater) |
| Supply Voltage | 20 to 240V AC, 12 TO 240V DC |
| Size | 48MM x 48MM |
| Mounting Type | Plug / Panel mount |
| Certification | CE , RoHS, UL RoHS |

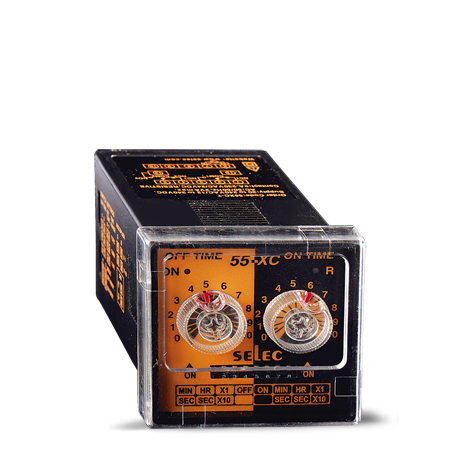

| Output Contact | 2 C/O (DPDT) |
| Operating Mode | Cyclic with unequal ON time & OFF time |
| Accuracy | Setting: ± 5% of full scale, Repeat: ±0.5% of 50ms (whichever is greater) |
| Reset | On interruption of power Reset time less than 100ms |
| Range | 1/10/sec/min/hr |
| Supply Voltage | 20 to 240V AC, 12 TO 240V DC |
| Size | 46MM x 46MM |
| Mounting Type | Plug / Panel mount |
| Certification | CE , RoHS, UL |
| Output Contact | 1C/O (SPDT) |
| Range | 3/10/30/60 sec/min |
| Operating Modes | ON delay / Interval |
| Supply Voltage | 230 V AC & 24V AC/DC,110 V AC & 24V AC/DC, |
| Size | 48MM x 48MM |
| Mounting Type | Plug / Panel mount |
| Certification | CE & UL |
