IP 66/67, fur uncut cables

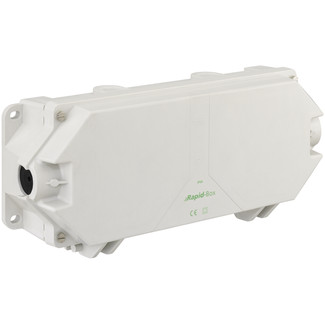

Rapid-Box 10-50² KV 2 x S

Junction box
190 x 446 x 106 mm
Article number: 30112101

Junction box and connection enclosure certified in accordance with EN 61 439, Maintenance-free terminal for uncut cables in feed-through, contacting at junction using maintenance-free spring clamp technology, Simple attachment by external attachment points, halogen-free enclosure of special Duroplast, suitable for outdoor installation in accordance with EN 61439-2, terminal can withstand a rated current of max. 100 A, clamping range for uncut cables 10² - 50², clamping range for cut cables 2.5² - 35²


Rapid-Box 10-50² KV 1 x S

Junction box
190 x 446 x 106 mm
Article number: 30111101

Junction box and connection enclosure certified in accordance with EN 61 439, Maintenance-free terminal for uncut cables in feed-through, contacting at junction using maintenance-free spring clamp technology, Simple attachment by external attachment points, halogen-free enclosure of special Duroplast, suitable for outdoor installation in accordance with EN 61439-2, terminal can withstand a rated current of max. 100 A, clamping range for uncut cables 10² - 50², clamping range for cut cables 2.5² - 35²

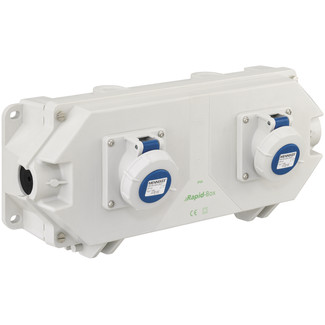

Rapid-Box 10-50² STV 2 x 3-pole

Junction box
190 x 446 x 161 mm
Article number: 30114101

Junction box and connection enclosure certified in accordance with EN 61 439, Maintenance-free terminal for uncut cables in feed-through, contacting at junction using maintenance-free spring clamp technology, Simple attachment by external attachment points, halogen-free enclosure of special Duroplast, suitable for outdoor installation in accordance with EN 61439-2, terminal can withstand a rated current of max. 100 A, clamping range for uncut cables 10² - 50², clamping range for cut cables 2.5² - 35²

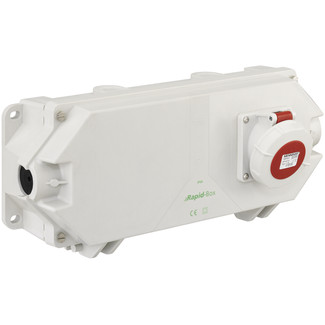

Rapid-Box 10-50² STV 1 x 5-pole

Junction box
190 x 446 x 161 mm
Article number: 30115101

Junction box and connection enclosure certified in accordance with EN 61 439, Maintenance-free terminal for uncut cables in feed-through, contacting at junction using maintenance-free spring clamp technology, Simple attachment by external attachment points, halogen-free enclosure of special Duroplast, suitable for outdoor installation in accordance with EN 61439-2, terminal can withstand a rated current of max. 100 A, clamping range for uncut cables 10² - 50², clamping range for cut cables 2.5² - 35²

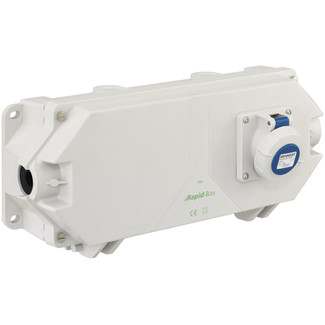

Rapid-Box 10-50² STV 1 x 3-pole

Junction box
190 x 446 x 161 mm
Article number: 30113101

Junction box and connection enclosure certified in accordance with EN 61 439, Maintenance-free terminal for uncut cables in feed-through, contacting at junction using maintenance-free spring clamp technology, Simple attachment by external attachment points, halogen-free enclosure of special Duroplast, suitable for outdoor installation in accordance with EN 61439-2, terminal can withstand a rated current of max. 100 A, clamping range for uncut cables 10² - 50², clamping range for cut cables 2.5² - 35²


Rapid-Box 2,5-16² KV 1 x S

Junction box
190 x 446 x 106 mm
Article number: 30101101

Junction box and connection enclosure certified in accordance with EN 61 439, Maintenance-free terminal for uncut cables in feed-through, contacting at junction using maintenance-free spring clamp technology, Simple attachment by external attachment points, halogen-free enclosure of special Duroplast, suitable for outdoor installation in accordance with EN 61439-2, Terminal can withstand a rated current of max. 63 A, Clamping range for uncut cables 2.5² - 16², clamping range for cut cables 2.5² - 10²


Rapid-Box 2.5-16² STV 2 x 3-pole

Junction box
190 x 446 x 161 mm
Article number: 30104101

Junction box and connection enclosure certified in accordance with EN 61 439, Maintenance-free terminal for uncut cables in feed-through, contacting at junction using maintenance-free spring clamp technology, Simple attachment by external attachment points, halogen-free enclosure of special Duroplast, suitable for outdoor installation in accordance with EN 61439-2, Terminal can withstand a rated current of max. 63 A, Clamping range for uncut cables 2.5² - 16², clamping range for cut cables 2.5² - 10²
