IP68, PC, cast resin

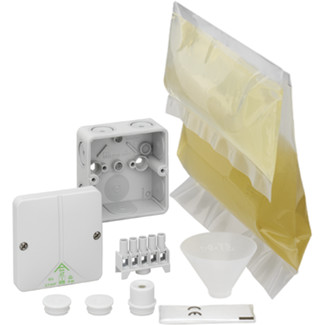

Abox XT 025-2,52

Junction box | Customizable
80 x 80 x 52 mm
Article number: 49240201

Junction box - Industrial Quality - with connecting terminals for encapsulating acc. DIN EN 60670 and DIN EN 60529, weather-resistant and shockproof, for the assembly in flooded areas and in the ground without traffic loads, Ui=690V, with self-sealing, soft inlet membranes, M20, seal range 2 - 16 mm, with cast resin bag 250 ml (marking-free), funnel, ventilation seals and disposable gloves, Attention: Note the expiration date of the cast resin bag

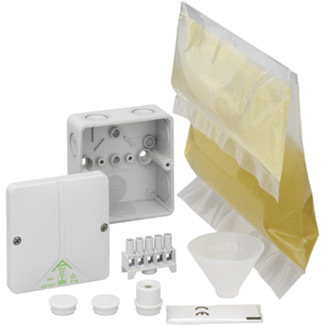

Abox XT 040-42

Junction box | Customizable
93 x 93 x 55 mm
Article number: 49240401

Junction box - Industrial Quality - with connecting terminals for encapsulating acc. DIN EN 60670 and DIN EN 60529, weather-resistant and shockproof, for the assembly in flooded areas and in the ground without traffic loads, Ui=690V, with self-sealing, soft inlet membranes, M20, seal range 2 - 16 mm, with cast resin bag 350 ml (marking-free), funnel, ventilation seals and disposable gloves, Attention: Note the expiration date of the cast resin bag

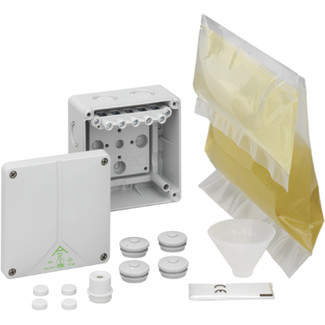

Abox XT 060-62

Junction box | Customizable
110 x 110 x 67 mm
Article number: 49240601

Junction box - Industrial Quality - with connecting terminals for encapsulating acc. DIN EN 60670 and DIN EN 60529, weather-resistant and shockproof, for the assembly in flooded areas and in the ground without traffic loads, Ui=690V, with double-membrane seals M25, seal range 9 - 16 mm, with cast resin bag 600 ml (marking-free), funnel, ventilation seals and disposable gloves, Attention: Note the expiration date of the cast resin bag

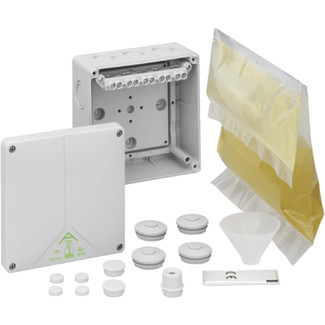

Abox XT 100-102

Junction box | Customizable
140 x 140 x 79 mm
Article number: 49241001

Junction box - Industrial Quality - with connecting terminals for encapsulating acc. DIN EN 60670 and DIN EN 60529, weather-resistant and shockproof, for the assembly in flooded areas and in the ground without traffic loads, Ui=690V, with double-membrane seals M32, seal range 14 - 21 mm, with cast resin bag 1200 ml (marking-free), funnel, ventilation seals and disposable gloves, Attention: Note the expiration date of the cast resin bag
