Application :-

• These are special PVC data cables used for flexible use with free movement without tensile stress of forced movements in dry, moist and wet rooms but not suitable for open air, wherever the construction requirements call for a minimum outer diameter.

Technical Data :-

• Standard : Based on VDE 0812
• Nominal Voltage : 0.14 mm² = 350 V; >/= 0.25 mm² = 500 V
• Insulation Resistance : Min. 20 GΩ x cm
• Temperature Range : Flexing -5°C to +70°C.
• Fixed installation -30°C to +70°C
• Minimum Bending Radius : For flexible use 10 x cable ø
• Test Voltage : Up to 0.25 mm² = 1200 V. From 0.34 mm² = 2000 V
• Breakdown Voltage : Up to 0.25 mm² = 2400 V. From 0.34 mm² = 4000 V

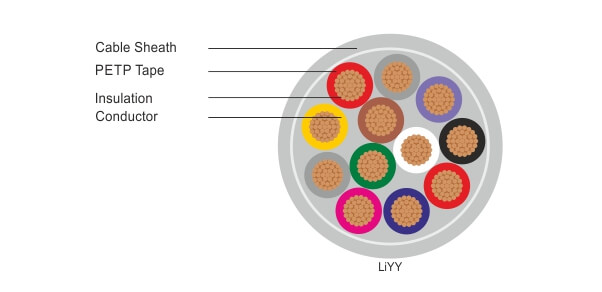

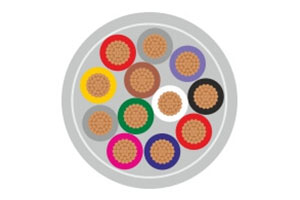

Cable Construction :-

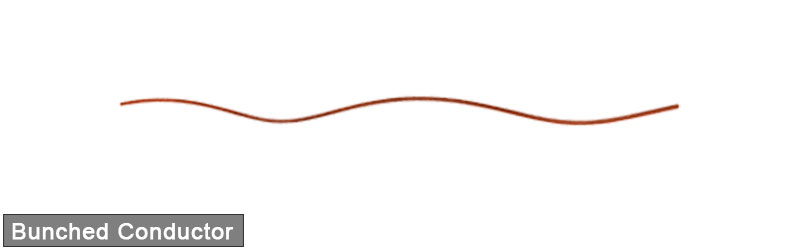

• Bare copper, fine wire conductors, bunch stranded DIN VDE 0295 cl. 5, EN 60228 cl. 5.

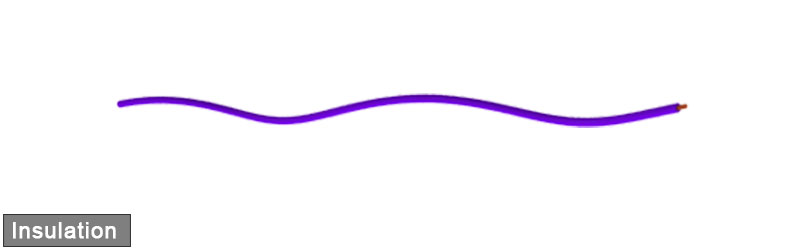

• Special PVC core insulation TI2, to EN 50363-3.
• Conductor make-up for 0.14 mm² = 8 x 0.10 mm., 0.25 mm² = 14 x 0.15 mm., 0.34 mm² = 19 x 0.15 mm.
• Core colours as per DIN 47100.

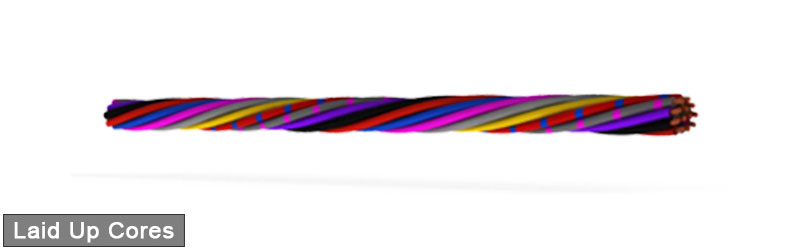

• Cores stranded in layers with short lay-length.

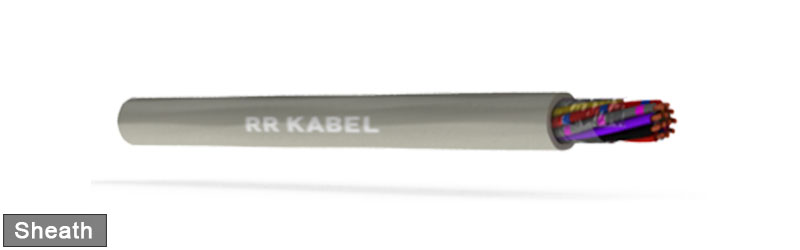

• Special PVC outer sheath TM2, to EN 50363-4.1.
• Colour grey (RAL 7032).
