Description :-

• India’s 1st REACH and RoHS Compliant Cable | Heat Resistant and Flame Retardant Cable.

Application :-

• Suitable for wiring in all types of residential and commercial infrastructure, where fire and electrical safety is utmost important.

Technical Data :-

• Approvals : IS 694 marked, FIA/TAC
• Voltage Grade : Up to and including 1100V

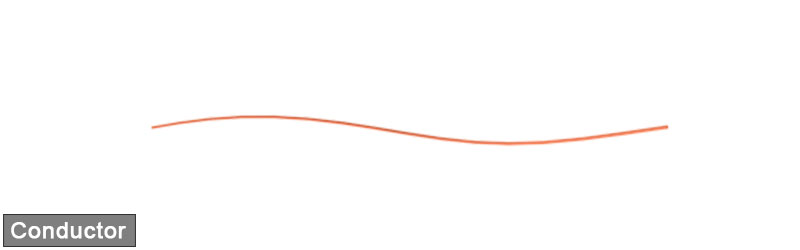

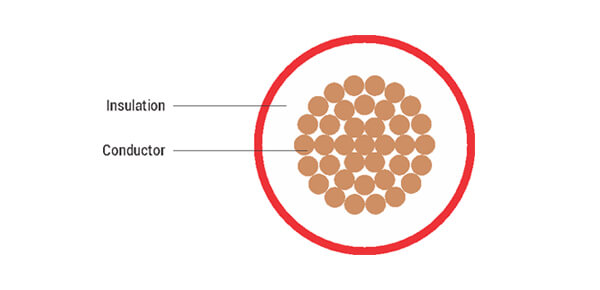

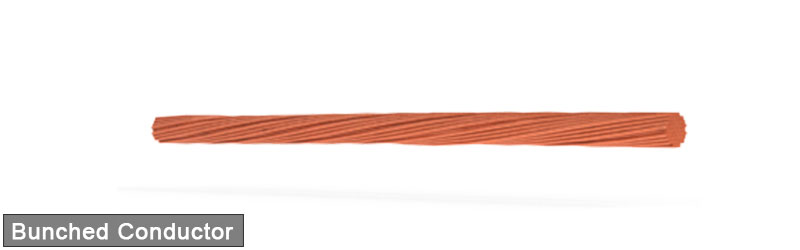

• Conductor : Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility. The strands are twisted with high precision to impart circularity for the conductor.

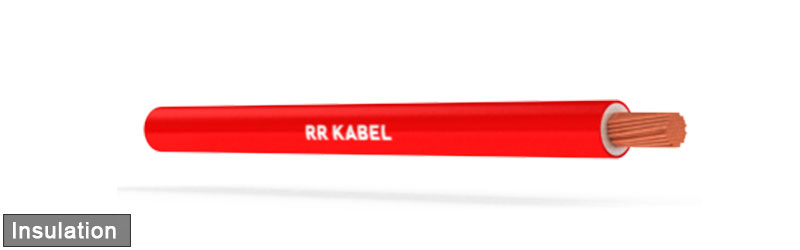

• Insulation : Specially formulated heat resistant & flame retardant PVC insulation is used. The HR FR property retards the propagation of flame without compromising safety.
• Insulation Conformity : IS 5831, Type C – HR 85°C + FR
• Colours : Red, yellow, blue, black, green, grey & white
• Marking : The cables are printed with marking of ‘GUARDEX HR FR’ upto 4 Sq. mm & "RR KABEL HR FR" for size 6 Sq. mm and onwards
• Packing : 90 mtr. coil is packed in protective cartons. Project packing of 180 mtr. also available.

Cable Design Parameters :-

• Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – grey, 07 – white.

Properties :-
