Applications :-

• Solar cables are intented for use in photovoltaic power supply systems and similar applications as free hanging, movable, fixed installation and buried in ground in constructional covered systems. The cables can be used indoor, outdoor, in hazard explosion areas, in industry and agriculture. They are suitable for applications in equipment with protective insulation (protecting Class 2).

Standard :-

• Adapted to PV systems, 2 Pfg 1169 / 08.2007.

Thermal parameters :-

• Max. Permissible Ambient Temperature : +90°C (stationary and in motion )
• Max. Permissible Operating Temperature of The Conductor : +120°C, Interpretation according to IEC 60216 : permanent temperature., 120°C for 20,000 h ( = 2.3 years ), at max. 90°C permanent temperature ( = 30 years ).
• Short – Circuit Temperature : +200°C (at the conductor max. 5 sec. )
• Damp – Heat Test : According to EN 60068 – 2 – 78. 1,000h at 90°C and 85% humidity.
• Min. Permissible Ambient Temperature : -40°C (stationary and in motion)
• Resistance to Cold : Bending test at low temperature according to DIN EN 60811 – 1 – 4, Impact test similar to DIN EN 50305.
• Minimum Bending Radius : Fixed Installation approx. 4 x cable Ø

Electrical Parameters :-

• Voltage Rating : AC 0.6 / 1.0 kV
• Max. PV – System Voltage : DC up to 2.0 kV possible
• Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 kV
• Max. Permissible Operating Voltage in DC Systems : 0.9 / 1.8 kV
• Test Voltage : AC 6 kV / DC 10 kV (15 min.)

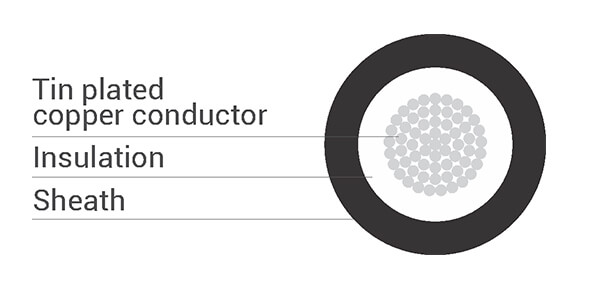

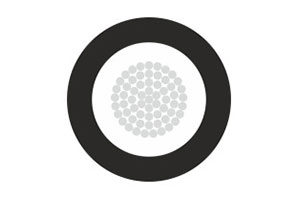

Cable Construction :-

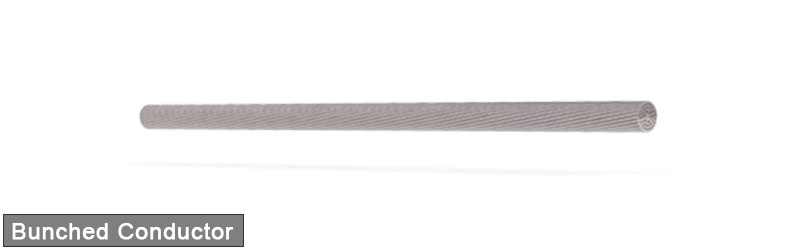

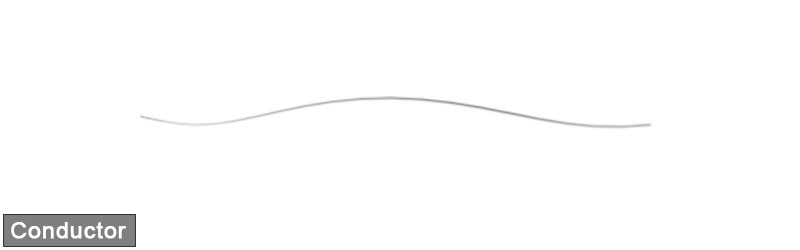

• Conductor : Annealed tinned copper, fine wire conductors, bunch stranded EN 60228 Cl. 5

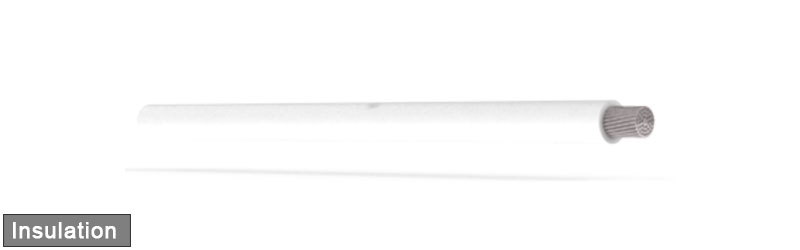

• Insulation : Crosslinked polyolefin (XLPO)
• Core Identification : Red, black or natural

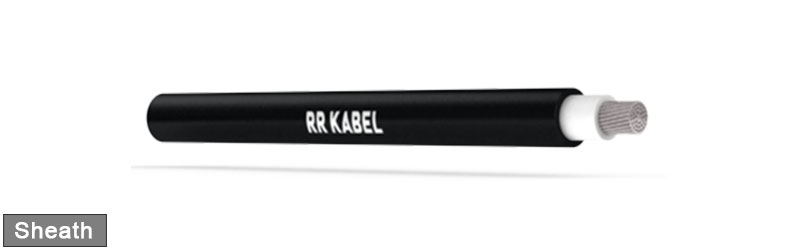

• Sheath : Crosslinked polyolefin (XLPO)
• Cable Colour : Black
