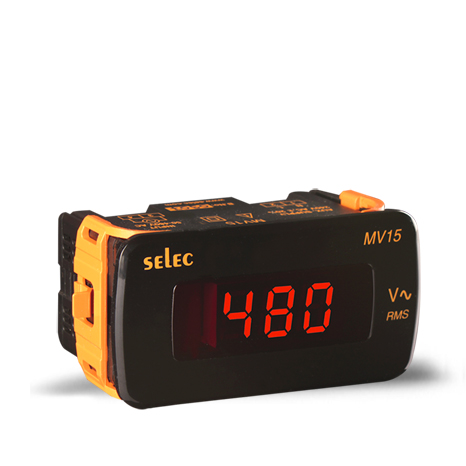

| Display Type | 7 segment LED |
| Display Configuration | 3 Digits |
| Electrical Connection | 1Ø-2 wire |
| Accuracy | ±0.5% of full scale over rated operating condition |
| Measuring Range | 50 - 480V AC (516V max) |
| Supply Voltage | 240V AC (±20%), 50/60 Hz , 110V AC (±20%), 60Hz |
| Size | 48 x 96mm |
| Mounting Type | Panel mount |
| Certification | CE, RoHS & UL |
| Display Type | 7 Segment LED |
| Display Configuration | 3 Digits |
| Electrical Connection | 1Ø-2 wire |
| Accuracy | ±0.5% of full scale over rated operating condition |
| Measuring Range | 50 - 480V AC (516V max) |
| Supply Voltage | 240V AC ±20% (50/60 Hz) , 110V AC ±20% (60Hz) |
| Size | 72 x 72mm |
| Mounting Type | Panel mount |

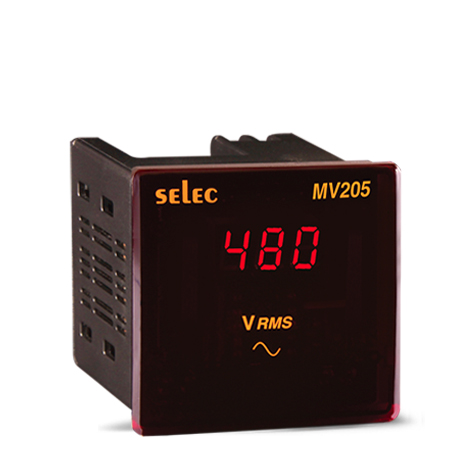

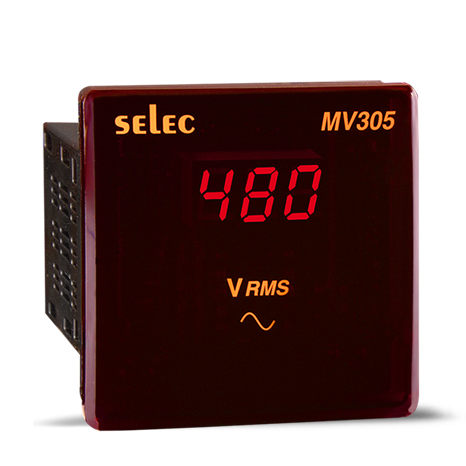

| Display Type | 7 Segment LED |
| Display Configuration | 3 Digits |
| Electrical Connection | 1Ø-2 wire |
| Accuracy | ±0.5% of full scale over rated operating condition |
| Measuring Range | 50 - 480V AC (516V max) |
| Supply Voltage | 240V AC (±20%) 50/60 Hz , 110V AC (±20%) 60Hz |
| Size | 96 x 96mm |
| Mounting Type | Panel mount |

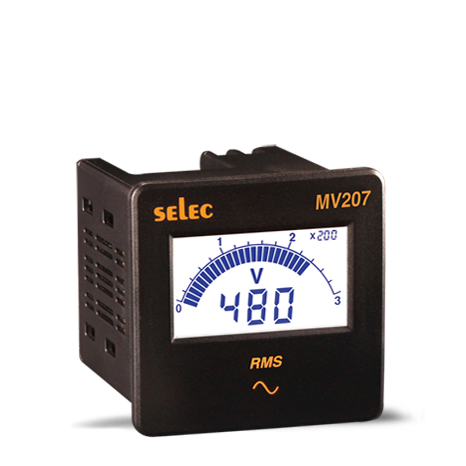

| Display Types | LCD with backlight and analog style bargraph Indication |
| Display Configuration | 3 Digits |
| Electrical Connection | 3Ø-4 wire, 3Ø-3 wire |
| Accuracy | ±0.5% of full scale over rated operating condition |
| Measuring Range | 50 - 480V AC (516V max) |
| Supply Voltage | 240V AC ±20% (50/60 Hz) , 110V AC ±20% (60Hz) |
| Size | 72 x 72mm |
| Mounting Type | Panel mount |
| Certification | CE, RoHS & UL |

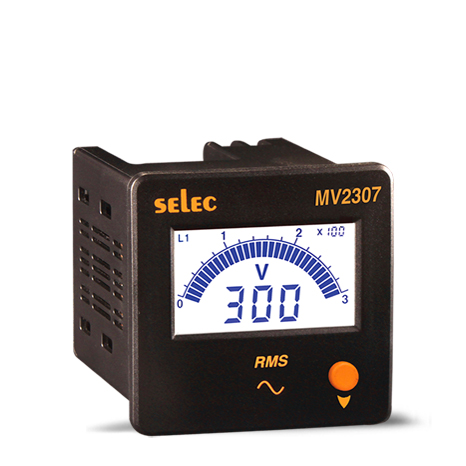

| Display Types | LCD with backlight and analog style bargraph Indication |
| Display Configuration | 3 Digits |
| Electrical Connection | 3Ø-4 wire, 3Ø-3 wire |
| Accuracy | ±0.5% of full scale over rated operating condition |
| Measuring Range | 50 - 480V AC (516V max) |
| Supply Voltage | 240V AC ±20% (50/60 Hz) , 110V AC ±20% (60Hz) |
| Size | 72 x 72mm |
| Mounting Type | Panel mount |
| Certification | CE, RoHS & UL |
