| Display Type | LED |
| Display Configuration | 4 digits |
| Range | 4 to 9999 RPM |
| Counting Direction | Uni-directional(Up) |
| Features | Measures upto 9999 RPM , Inbuilt Sensor Supply |
| Sensor type | PNP |
| Sensor supply | Inbuilt, 12V DC(±10%), 30 mA |
| Input type | Voltage pulse: 3 to 30 V DC from proximity switches, encoder solid state devices, potential free contacts |
| Input Speed | 4 to 9999 pulses per minute |
| Supply Voltage | 90-270V AC/DC |
| Size | 48mm x 48mm |
| Mounting Type | Panel mount |
| Display Type | LED |
| Display Configuration | 4 digits |
| Range | 4 to 9999RPM |
| Counting Direction | Uni-directional(Up) |
| Features | RPM indicator |
| Sensor type | PNP/NPN |
| Sensor supply | Inbuilt, 12V DC(±10%), 30 mA |
| Input type | Voltage pulse: 3 to 30 V DC from proximity switches, encoder solid state devices, potential free contacts |
| Input Speed | 4 to 9999 pulses per minute |
| Supply Voltage | 90-270V AC/DC |
| Size | 72mm x 72mm |
| Mounting Type | Panel mount |
| Display Type | LED |
| Display Configuration | 4 digits |
| Range | 4 to 9999 RPM |
| Counting Direction | Uni-directional(Up) |
| Features | RPM indicator |
| Sensor type | PNP |
| Sensor supply | Inbuilt, 12V DC(±10%), 30 mA |
| Input type | Voltage pulse: 3 to 30 V DC from proximity switches, encoder solid state devices, potential free contacts |
| Input Speed | 4 to 9999 pulses per minute |
| Supply Voltage | 90-270V AC/DC |
| Size | 48mm x 96mm |
| Mounting Type | Panel mount |

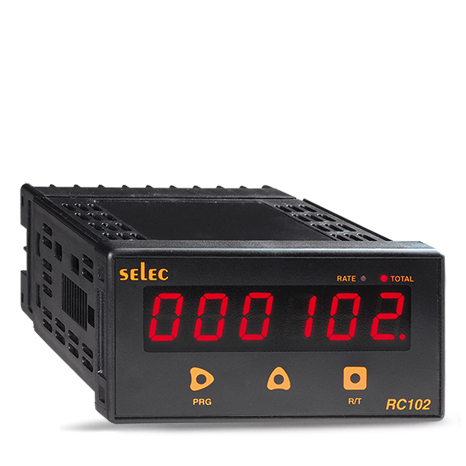

| Display Type | LED |
| Display Configuration | Count: 6 digits, Rate: 4 digits |
| Range | Count: 0.01 to 999999, Rate: 4.00 to 9999rpm |
| Reset | Front, Remote |
| Counting Direction | Uni-directional(Up) |
| Features | Counter, Rate indicator, Programmable input scaling |
| Sensor type | PNP/NPN |
| Sensor supply | Inbuilt, 12V DC(±10%), 30 mA |
| Input type | Voltage pulse: 3 to 30 V DC from proximity switches, encoder solid state devices, potential free contacts |
| Input Speed | a) 0 to 30Hz b)0 to 2.5kHz |
| Supply Voltage | 90-270V AC/DC |
| Size | 48mm x 96mm |
| Mounting Type | Panel mount |
| Certification | CE & UL |
