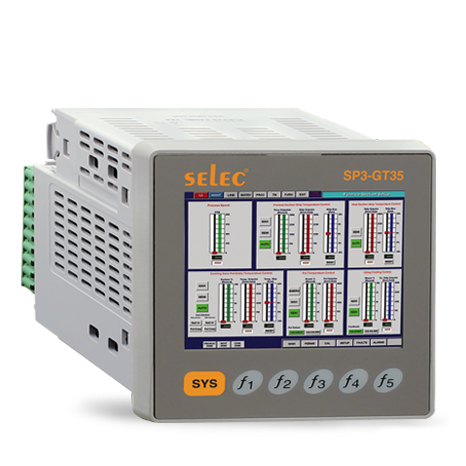

| Display Types | 3.5” LCD with Touch Screen + 6 Keys (5 user configurable) |
| Size | 99 X 99 mm |
| Digital Inputs | 4 Digital Inputs on Power Supply cards + As per Flexys card selection |
| Analog Inputs | As per Flexys card selection |
| Digital Outputs | As per Flexys card selection |
| Analog Outputs | As per Flexys card selection |
| No. of Slots | 3 |
| RTC with Time Switch function | Available |
| Code Memory | 256K |
| Communication Interface | RS485 based MODBUS RTU Protocol |
| Expansion | Yes |
| Supply Voltage | 180-270 VAC, 50/60 Hz |
| Mounting type | Panel Mount |

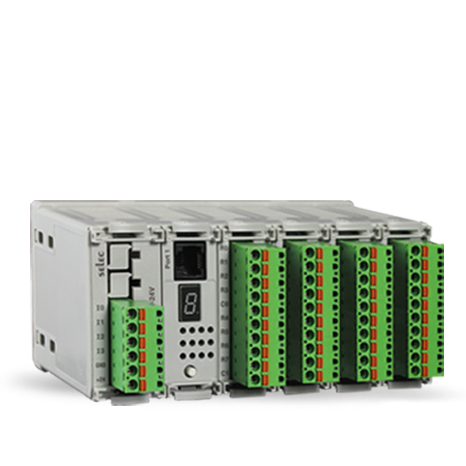

| Display Types | 12 LEDs to indicate card and communication status for selectable slot, one 7 segment to display slot no. |
| Size | 140 x 93.6 mm |
| Digital Inputs | 4 Digtal Inputs on Power supply card + As per Flexys card selection |
| Analog Inputs | As per Flexys card selection |
| Digital Outputs | As per Flexys card selection |
| Analog Outputs | As per Flexys card selection |
| No. of Slots | 4 |
| RTC with Time Switch function | Available |
| Code Memory | 351K |
| Communication Interface | RS485 based MODBUS RTU Protocol, Proprietary Protocol |
| Expansion | Yes |
| Supply Voltage | 180-270 VAC, 18 - 26 VDC |
| Mounting Type | Din Rail |

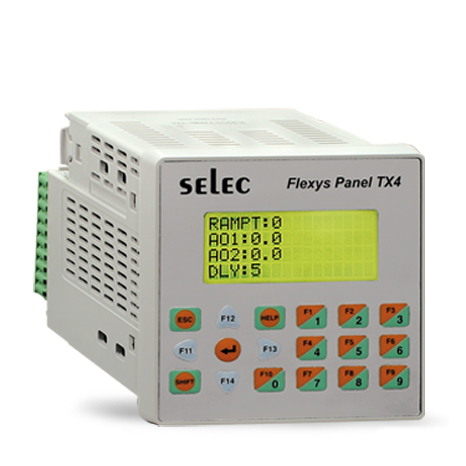

| Display Types | 4 x 16 characters LCD (with backlight) + 18 keys (14 user configurable) |
| Size | 99 X 99 mm |
| Digital Inputs | 4 Digital Inputs on Power Supply cards + As per Flexys card selection |
| Analog Inputs | As per Flexys card selection |
| Digital Outputs | As per Flexys card selection |
| Analog Outputs | As per Flexys card selection |
| No. of Slots | 4 |
| RTC with Time Switch function | Available |
| Code Memory | 351K |
| Communication Interface | RS485 based MODBUS RTU Protocol, Proprietary Protocol |
| Expansion | Yes |
| Supply Voltage | 180-270 VAC, 18 - 26 VDC |
| Mounting Type | Panel mount |

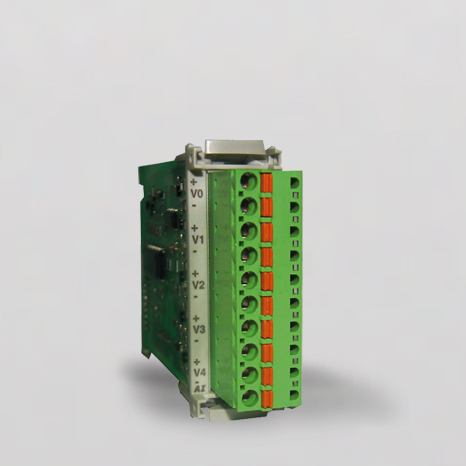

| Digital Inputs | 10 / 14 PNP Type |
| Analog Inputs | 4 Channel – Universal Input (TC, RTD, 0-10V, 0-20mA) |
| 4 Channel – TC, RTD | |
| 6 Channels – 0-10V, 0-20mA | |
| 4 Channel – Load Cell | |
| Digital Outputs | 8 – Relay, Transistor |
| Output Rating | 5A @230VAC / 24VDC (Relay) |
| Source type 100mA @24V DC (Transistor) | |
| Analog Outputs | 4 Channel – 0-10V, 0-20mA |
| Combination Card | 4 Digital Inputs, 4 Digital Outputs |
| 3 Analog Input – Universal, 2 Analog Output - Universal |
