2YSLCY-JB-SERVO

Application :-
  • Connecting cable between frequency convertor and motor. This motor power supply cable is used for the frequency converters and assures electromagnetic compatibility in plants and buildings Handling equipment, for SIMOVERT drives, they are particularly suitable for use with industrial pumps,Ventilators, conveyor belts and air-conditioning installations and similar applications.
Technical Data :-
  • Standard :Adapted DINVDE 0207/0250/0295
  • Nominal Voltage : UO / U 600 / 1000V
  • Control core pairs : 250V / AC
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V

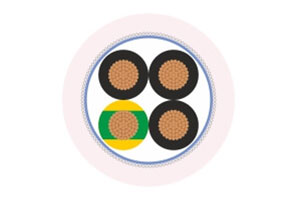

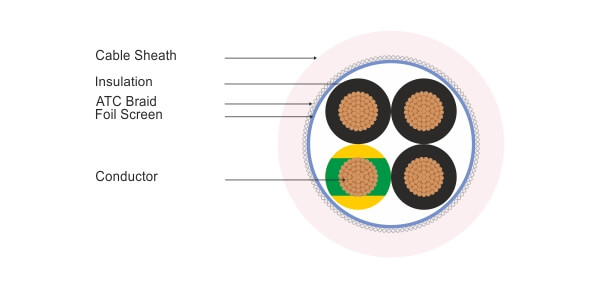

Cable Construction :-

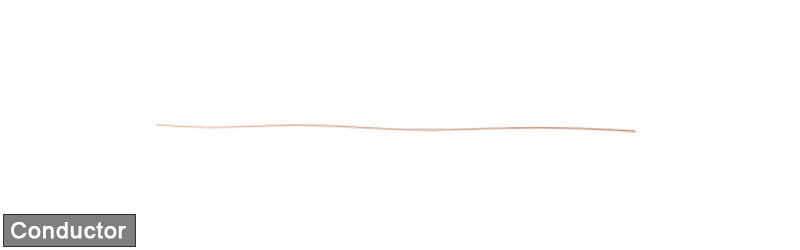

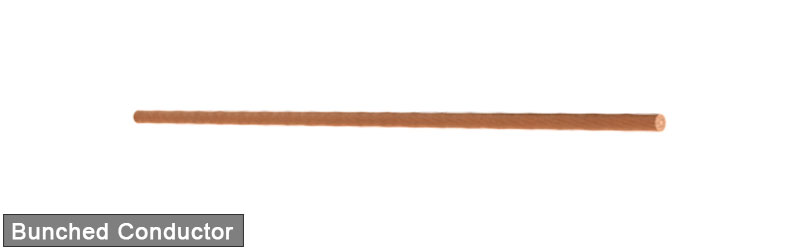

  • Bare copper, fine wire conductors, according to EN 60228 cl. 5.

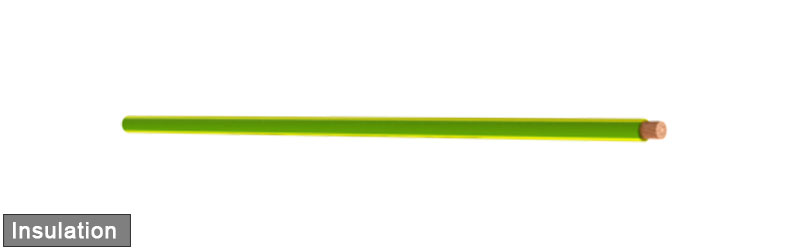

  • PE ( polyethylene ) core insulation.
  • Core colours : black, brown, grey, green-yellow.

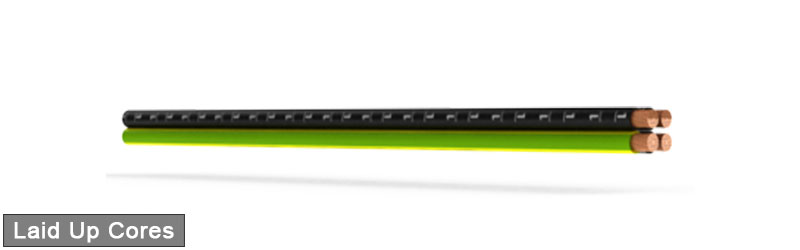

  • Cores stranded in concentric layers.

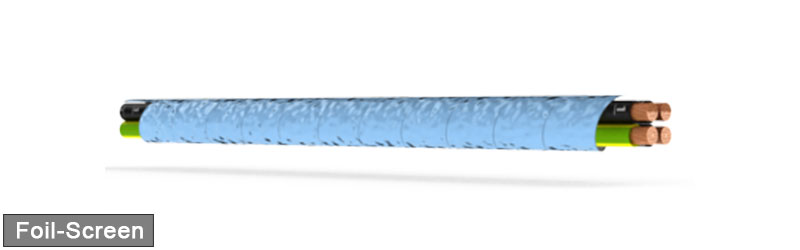

  • 1. screening with special aluminum foil.
  • 2. screening with copper braiding, tinned copper.

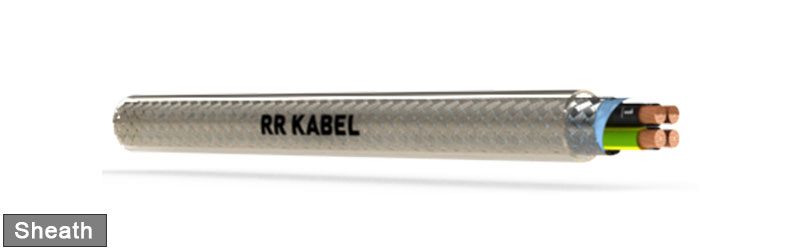

  • Transparent special PVC outer sheath.
Cable Design Parameters :-
Part NumberNo. of Cores & Nominal Cross Sectional Area(Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0408010101164 G 1.511.472.9167
0408010201164 G 2.512.4110.0215
0408010301164 G 4.015.6193.3363
0408010401164 G 6.017.0269.0462
0408010501164 G 10.019.6435.0660
0408010601164 G 16.022.1698.3955
0408010701164 G 25.026.31045.71390
0408010801164 G 35.029.51431.61842
0408010901164 G 50.035.82010.32656
0408011001164 G 70.040.32784.53579
0408011101164 G 95.046.53146.14371
0408011201164 G 120.053.24687.66190
0408011301164 G 150.057.35643.87315
0408011401164 G 185.062.36959.58853
0408011501163 x 1.5 + 3 G 0.2511.465.1158
0408011601163 x 2.5 + 3 G 0.512.299.4202
0408011701163 x 4 + 3 G 0.7514.4174.0308
0408011801163 x 6 + 3 G 115.7237.6391
0408011901163 x 10 + 3 G 1.518.0375.2554
0408012001163 x 16 + 3 G 2.520.2603.9809
0408012101163 x 25 + 3 G 423.8906.31174
0408012201163 x 35 + 3 G 626.91250.81581
0408012301163 x 50 + 3 G 1032.61798.92317
0408012401163 x 70 + 3 G 1036.42380.32988
0408012501163 x 95 + 3 G 1642.02825.83730
0408012601163 x 120 + 3 G 1647.83991.95072
0408012701163 x 150 + 3 G 2551.64946.46193
0408012801163 x 185 + 3 G 3556.56217.87691
