A2XFY/2XFY-A2XWY/2XWY-3 CORE

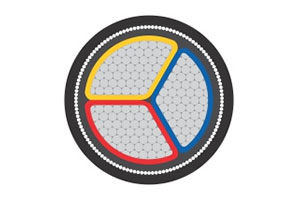

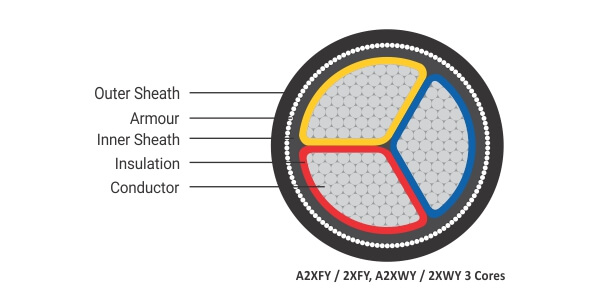

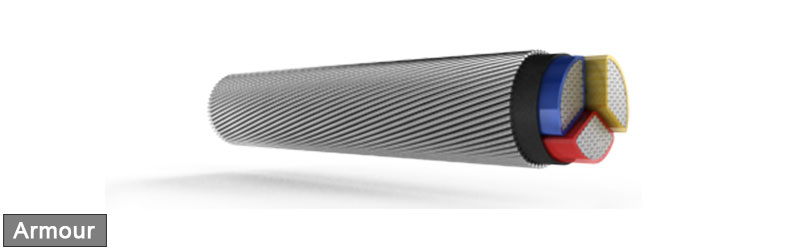

Cable Construction :-

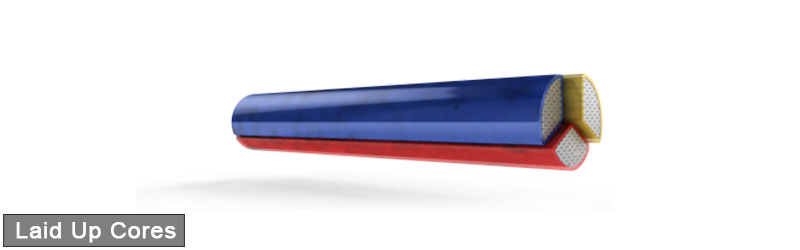

  • 1.1 kV, 3 cores AL / CU conductor, XLPE insulated, galvanised steel strip / wire armoured cables as per IS 7098 Part – 1.

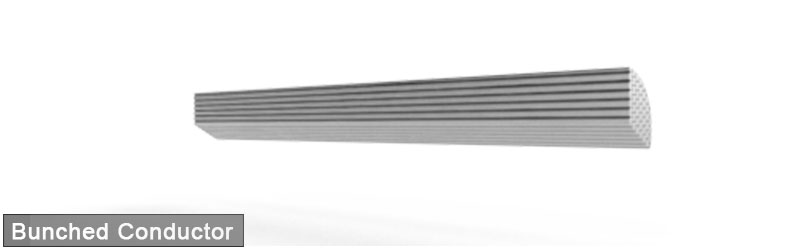

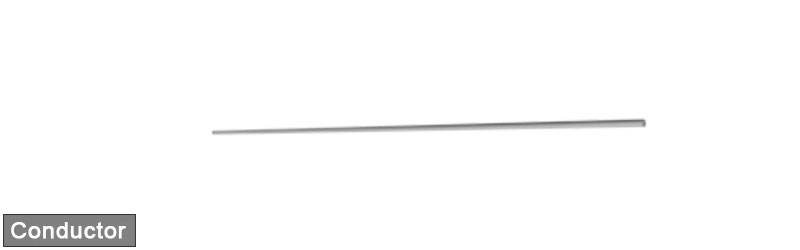

  • Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded compacted shape Cl. 2 as per IS 8130.
  • In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded Cl. 2,round as per IS 8130.
  • Above 10 Sq. mm conductor are stranded compacted shaped Cl. 2 as per IS 8130.

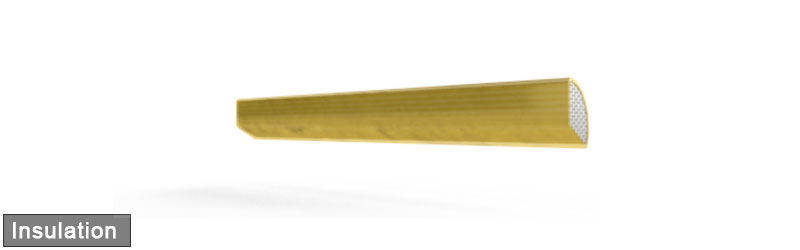

  • Insulation Material : Crosslinked polyethylene (XLPE)
  • Core Colours : Red, yellow, blue

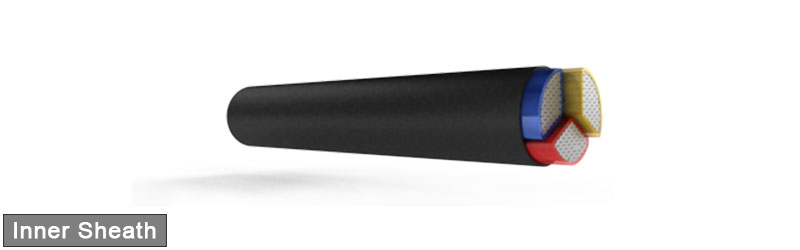

  • Inner Sheath : PVC / PVC tape as per IS 7098 ( P-1 )
  • Armouring : Single armouring of galvanised steel strip / wire

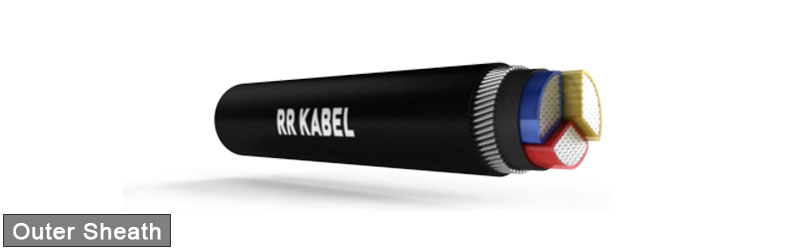

  • Outer Sheath : PVC Type ST – 2 as per IS 5831 (Option : FR Type / FRLS Type)
  • Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters :-
  • While ordering, in addition to the part number the following details shall also be advised: Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2). Sheath Type – PVC Type ST – 2 (FR or FRLS).
PartNumberNominal Cross Sectional Area (Sq. mm)Nominal Thickness of Insulation(mm)Minimum Thickness of Inner Sheath(mm)Armouring with flat strip (A2XFaY/ 2XFaY)Armouring with Round Wire (AYWaY/YWaY)
Nominal Thickness of Arm. Strip(mm)MinimumThickness of Outer Sheath(mm)Approx. Overall Dia.(mm)Approx Net Wt.of Cable (kg/km)Nominal Diameter of Wire(mm)Minimum Thickness of Outer Sheath(mm)Approx. Overall Dia.(mm)Approx Net Wt.of Cable (kg/km)
AL Cable A2XFaYCU Cable 2XFaYAL Cable AYWaYCU Cable YWaY
11200030000440.70.3N/AN/AN/AN/AN/A1.41.2418430510
11200030000660.70.3N/AN/AN/AN/AN/A1.41.2419470600
112000300010100.70.3N/AN/AN/AN/AN/A1.41.2420520750
112000300016160.70.30.81.24195908901.61.40207301020
112000300025250.90.30.81.402179011901.61.40239401400
112000300035350.90.30.81.402394014901.61.402511301750
112000300050501.00.30.81.4026109019901.61.562913302180
112000300070701.10.40.81.5629145026902.01.563218203070
112000300095951.10.40.81.5632174034902.01.563522103950
1120003001201201.20.40.81.5635210041902.01.723926704840
1120003001501501.40.50.81.7242252052002.01.884334506150
1120003001851851.60.50.81.8844299063002.52.044838307160
1120003002402401.70.60.82.0449374081902.52.205347208870
1120003003003001.80.60.82.20544490100002.52.3658613011380
1120003004004002.00.70.82.52605590129903.22.6865739014410
1120003005005002.20.70.82.68666890159903.22.8472998018490
1120003006306302.40.70.82.84748540199904.03.00811182022560
