JZ-CY

Application :-
  • For use as a data cable in control circuits, in tool-making and machine industries as well as a signal cable in computer systems and electronics. The more usual PVC inner sheath has been removed in the cable, thus reducing the total diameter of the cables considerably and thereby reducing the bending radius, total weight etc. The high covering percentage of the copper screening offers interference-free signal transfer etc. The dense screening assures disturbance-free transmission of all signals and impulses.
Standard :-
  • Adapted to DIN VDE 0245, 0281 Part 13.
Technical Data :-
  • Nominal Voltage : U / U 300 / 500V O
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C.
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V
  • Breakdown Voltage : Min. 8000V

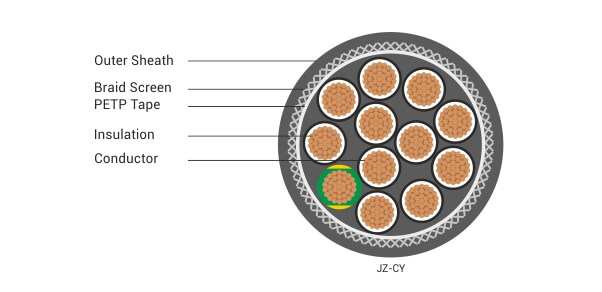

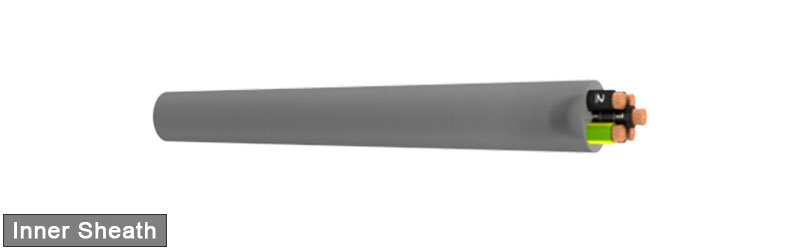

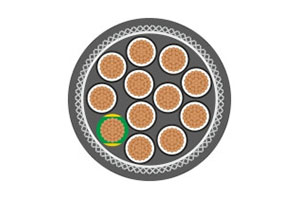

Cable Construction :-

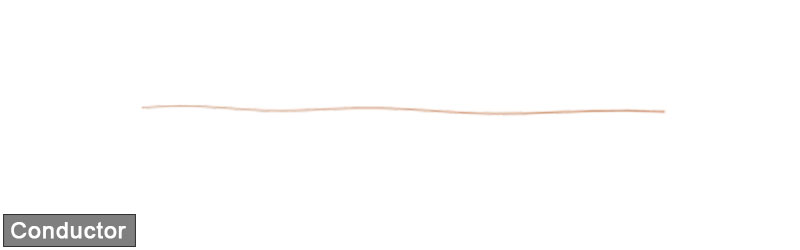

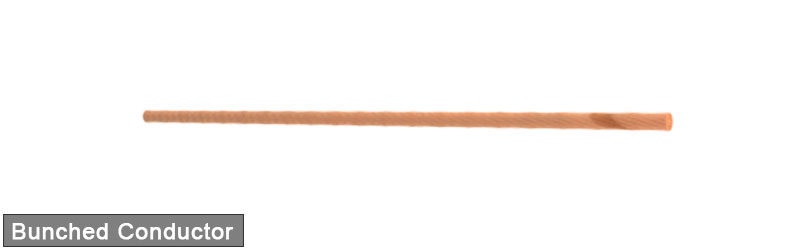

  • Bare copper, fine wire conductors, to EN 60228 Cl.5.

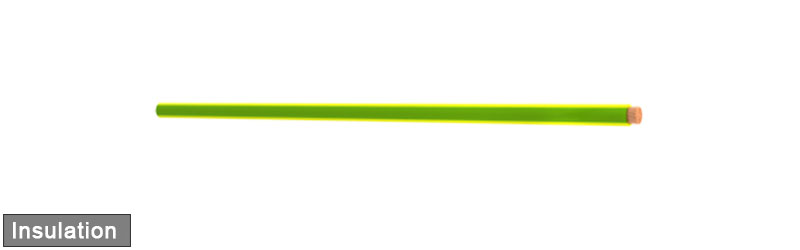

  • Core insulation of special PVC TI2, EN 50363-3.
  • Black Core with continuous white numbering to DIN VDE 0293.
  • Green/Yellow earth core in outer layer (3 cores and above).

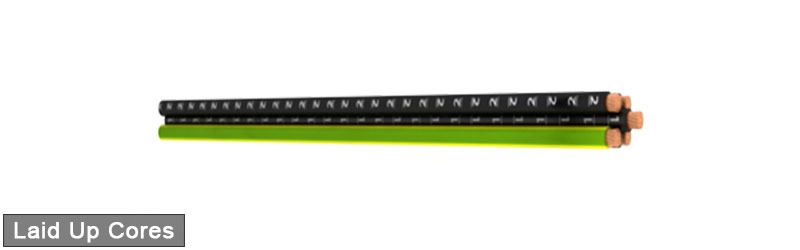

  • Cores stranded in layers with optimal lay-length.
  • Tinned copper, braided screen, approx 85% coverage.

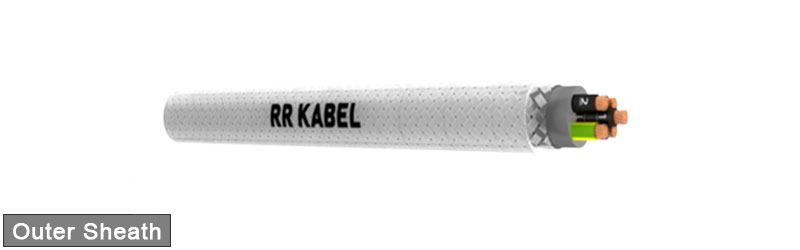

  • Outer Sheath of Special PVC, TM2 to DIN/BS EN 50363-4.1.
  • Colour grey (RAL 7001).
Cable Design Parameters :-
Part NumberNo. of Cores and Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
03120181000118G 113.9180.0328.9
03120251000125G 115.9266.1439.8
0312002011052 x 1.57.139.473.9
0312003111053G 1.57.551.792.7
0312003011053 x 1.57.551.792.7
0312004111054G 1.58.266.2115.9
0312004011054 x 1.58.266.2115.9
0312005111055G 1.58.980.9138.7
0312005011055 x 1.58.980.9138.7
0312007111057G 1.59.9108.0182.3
0312007011057 x 1.59.9108.0182.3
03120121110512G 1.513.0175.1298.0
03120181110518G 1.515.6276.0450.8
03120251110525G 1.517.9377.6596.4
03120341110534G 1.520.8488.3787.3
0312003112053G 2.58.980.9136.6
0312004112054G 2.59.9102.9174.0
0312005112055G 2.511.0125.0213.7
0312007112057G 1.511.9168.4272.9
03120121120512G 2.516.0301.0477.1
03120181120518G 2.519.0433.3688.1
03120251120525G 2.522.2588.0924.6
0312004100044G 411.6153.4250.4
0312007100047G 414.4256.1412.1
0312004100064G 614.2222.7370.5
0312007100067G 617.0396.3600.0
0312004100104G 1017.2384.1589.2
0312005100105G 1019.5475.8748.2
0312004100164G 1620.2616.3877.4
0312005100165G 1622.6760.41093.1
0312004100254G 2525.1937.41347.6
0312005100255G 2528.01160.01676.0
0312004100354G 3528.01300.41769.2
