JZ-YCY

Application :-
  • For use as a data and control cable in machinery, computer systems etc. as well as a signal cable for electronics. The high level of screening ensures a high degree of interference protection. The screening density assures disturbance-free transmission of all signals and impulses.
Standard :-
  • Requirements adapted to DIN VDE 0245, 0281 Part 13.
Technical Data :-
  • Nominal Voltage : U /U 300 / 500V O
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C.
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V
  • Breakdown Voltage : Min. 8000V

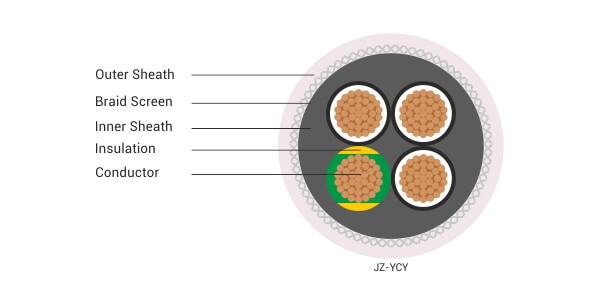

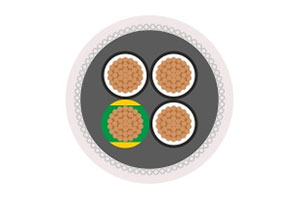

Cable Construction :-

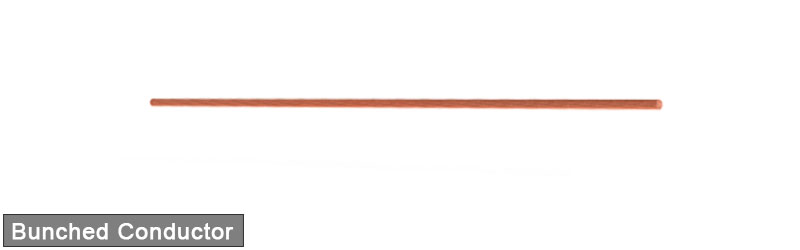

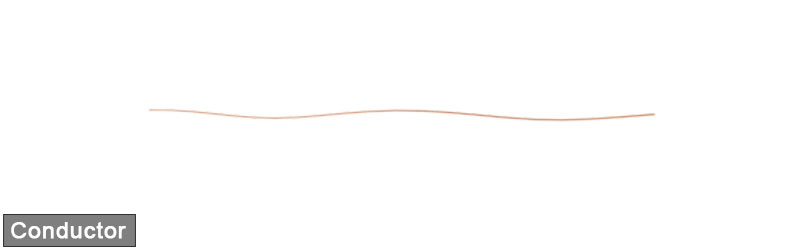

  • Bare copper, fine wire conductors, to EN 60228 Cl.5.

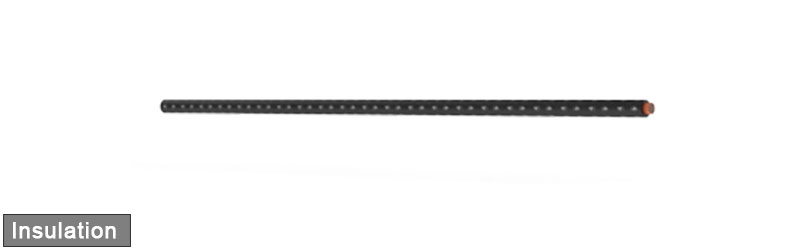

  • Core insulation of PVC TI2 EN 50363-3.
  • Black Core with continuous white numbering to DIN VDE 0293.
  • Green/Yellow earth core in outer layer (3 cores and above).

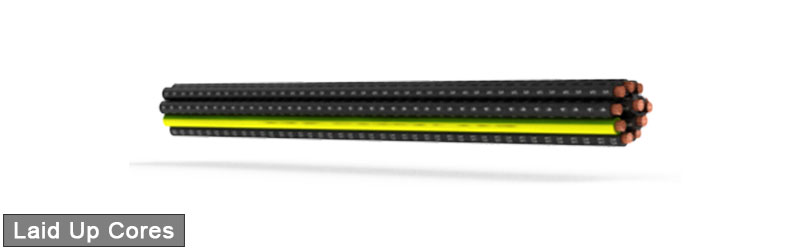

  • Cores stranded in layers with optimal lay-length.
  • Special PVC inner jacket.

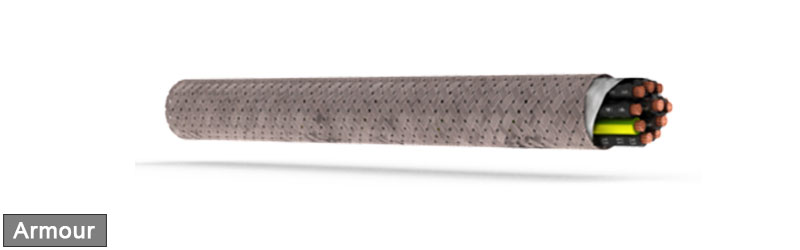

  • Tinned copper, braided screen, approx 85% coverage.

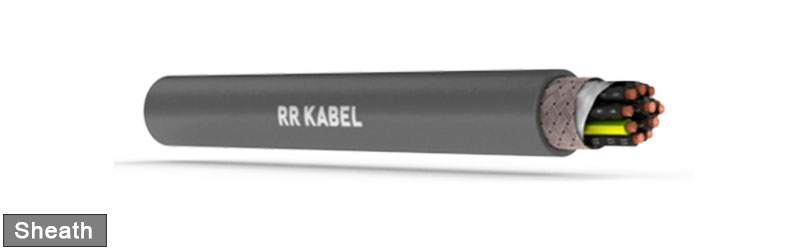

  • Transparent special PVC outer sheath.
Cable Design Parameters :-
Part NumberNo. of Cores and Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0310002010502 x 0.5721.668.2
0310003110503G 0.57.327.678.0
0310003010503 X 0.57.327.678.0
0310004110504G 0.57.932.591.7
0310004010504 X 0.57.932.591.7
0310005110505G 0.58.438.7105.7
0310005010505 X 0.58.438.7105.7
0310007110507G 0.58.947.7122.6
0310007010507 X 0.58.947.7122.6
03100121105012G 0.511.375.2198.2
03100120105012 X 0.511.375.2198.2
03100181105018G 0.513.3102.2273.5
03100251105025G 0.515.2153.7371.7
03100301105030G 0.516.1178.7423.1
03100401105040G 0.518.2228.0542.5
0310002010752 x 0.757.427.579
0310003110753G 0.757.936.295
0310003010753 X 0.757.936.295
0310004110754G 0.758.442.4109
0310004010754 X 0.758.442.4109
0310005110755G 0.758.948.7123
0310005010755 X 0.758.948.7123
0310007110757G 0.759.764.0152
0310007010757 X 0.759.764.0152
03100121107512G 0.7512.3101.1246
03100120107512 X 0.7512.3101.1246
03100181107518G 0.7514.5160.6355
03100180107518 X 0.0.7514.5160.6355
03100251107525G 0.7516.6214.1472
03100341107534G 0.7518.9279.0615
03100400107540 X 0.7520.5337.4728
03100411107541G 0.7520.6345.2740
0310002000012 x 17.932.091
0310003100013G 18.242.2105
0310003000013 x 18.242.2105
0310004100014G 18.750.7121
0310004000014 x 18.750.7121
0310005100015G 19.561.3146
0310007100017G 110.279.5176
03100121000112G 113.3146.2308
03100161000116G 114.6185.5380
03100181000118G 115.5202.5423
03100251000125G 117.5271.5554
03100341000134G 120.2354.0734
03100411000141G 122.0437.1882
03100501000150G 123.8521.91044
0310002011052 x 1.58.542.1110
0310003111053G 1.58.956.0130
0310003011053 x 1.58.956.0130
0310004111054G 1.59.669.1155
0310004011054 x 1.59.669.1155
0310005111055G 1.510.399.2193
0310005011055 x 1.510.399.2193
0310007111057G 1.511.3124.6237
0310007011057 x 1.511.3124.6237
03100121110512G 1.514.8198.6397
03100181110518G 1.517.2279.6548
03100251110525G 1.520.1375.2746
03100341110534G 1.522.8497.4977
03100411110541G 1.524.7611.91168
03100501110550G 1.527.1730.11402
0310002012052 x 2.59.961.2154
0310003112053G 2.510.399.1193
0310004112054G 2.511.3121.1234
0310005112055G 2.512.6146.4289
0310007112057G 1.513.9192.3364
03100121120512G 2.517.6304.4585
0310002000042 x 411.4104.4222
0310004100044G 413.4173.2333
0310005100045G 414.7212.4405
0310002000062 x 613.6141.6312
0310004100064G 615.8250.2474
0310005100065G 617.3303.7573
0310002000102 x 1016.4220.4468
0310003100103G 1017.4308.7579
0310004100104G 1019.0395.2715
0310005100105G 1021.2482.7884
0310007100107G 1023.2653.41124
0310002000162 x 1618.6367.3672
0310004100164G 1622.2657.41075
0310005100165G 1626.7807.21433
0310004100254G 2528.7984.11703
0310005100255G 2531.61210.52083
0310004100354G 35321352.02235
0310005100355G 3535.51670.12760
