Application :-

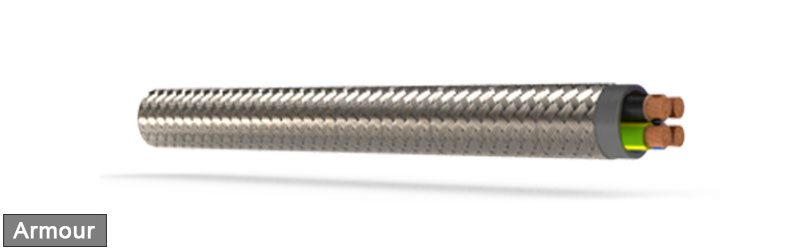

• JB-YSY cables are used as measuring and control cables in tool machinery, plant installation, power stations and in data equipment. The steel braid ensures best possible protection against mechanical damage. The galvanized coating on the steel wire braiding not only helps protect against corrosion, but also notably improves the soldering properties.

Standard :-

• Adapted to DIN/BS EN 50525-2-51.

Technical Data :-

• Nominal Voltage : U / U 300 / 500V up to 1.5 mm². U /U 450/750V at 4.0 mm² and above O O
• Insulation Resistance : Min. 20 GΩ x cm
• Temperature Range : Flexing -5°C to +70°C.
• Fixed installation -30°C to +70°C
• Minimum Bending Radius : Flexing 20 x cable ø. Fixed installation 6 x cable ø
• Test Voltage : 4000V
• Breakdown Voltage : Min. 8000V

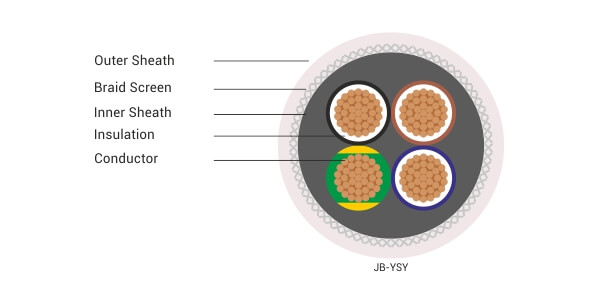

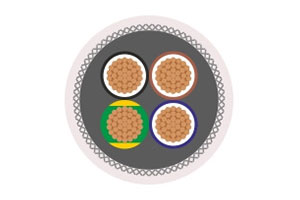

Cable Construction :-

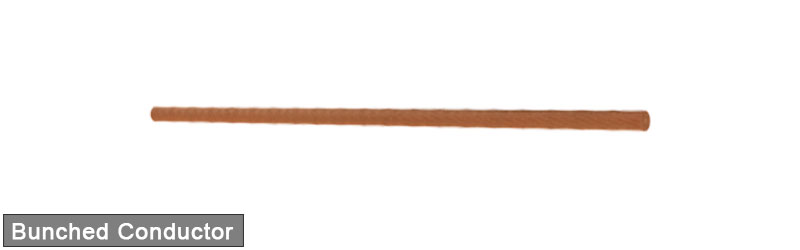

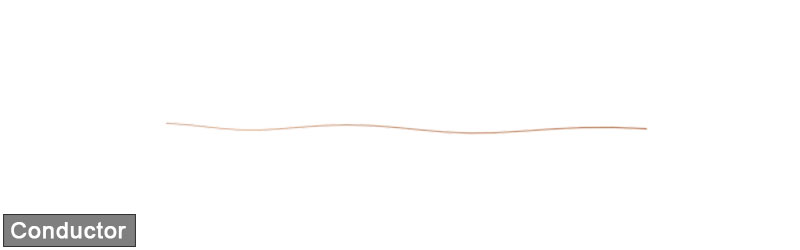

• Bare copper, fine wire conductors, bunch stranded EN 60228 Cl. 5.

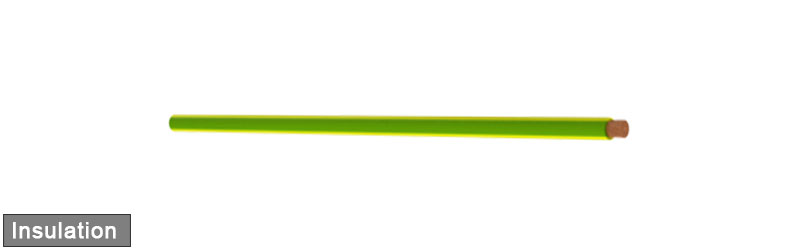

• Core insulation of TI2, EN 50363-3.
• Cores colour coded as per JB/OB colour code.
• Green/yellow earth core in outer layer (3 cores and above).

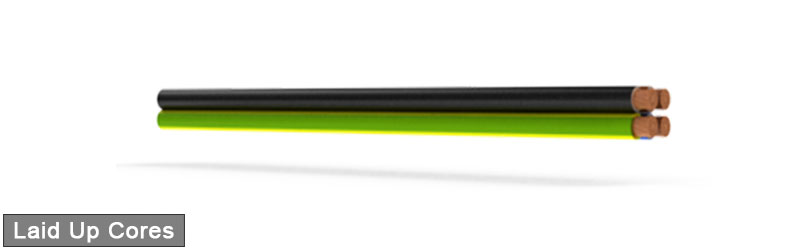

• Cores stranded in layers with optimal lay-length.

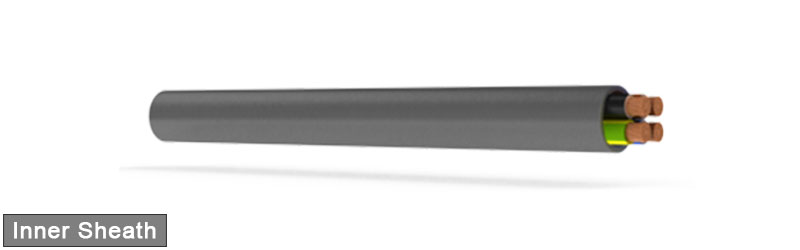

• Special PVC inner jacket.
• Tinned copper, braided screen, approx 85% coverage.

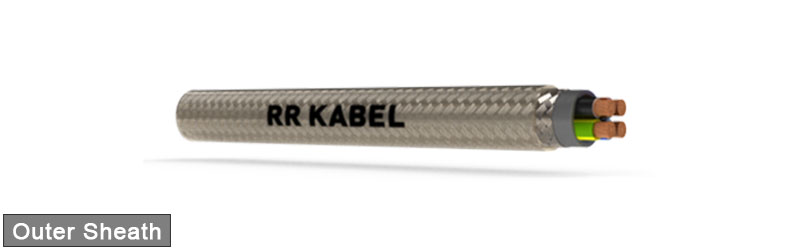

• Transparent special PVC outer sheath.
• Core identification code : As per VDE 0293-302/HD 308 S2

Cable Design Parameters :-

• Please complete the part numbers for these cables by adding the suffix (in place of ‘z’) for the sheath colour required, 1 – black (RAL 9005), 2 – grey (RAL 7001), 3 – white (RAL 9010).
