FIREX LSOH

Description :-
  • India’s 1st Fire-Safe Cable with HFFR Insulation and Unilay Conductor. Halogen Free Flame Retardant Cable – Non -Toxic and Non – Corrosive | Does not Propagate Flame and Fire
Application :-
  • Wiring in all installations where fire safety is of utmost importance like schools, theaters, commercial complexes, apartments, high rise buildings, laboratories, etc.
Technical Data :-
  • Voltage Grade : Up to and including 1100 V

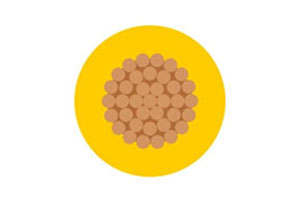

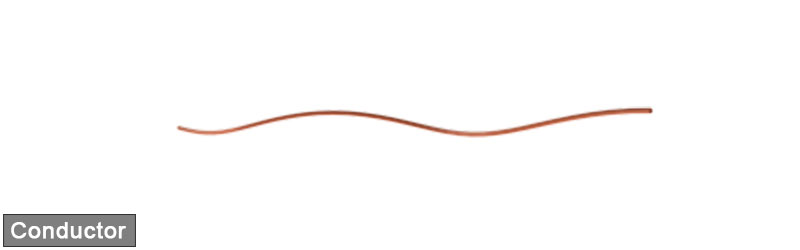

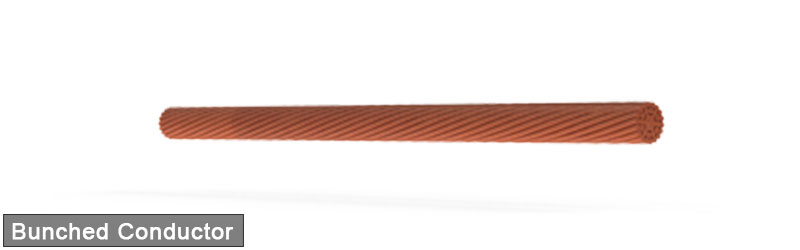

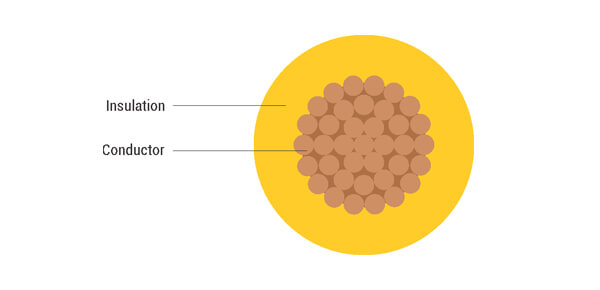

  • Conductor : Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility. The drawn strands are uni-laid with high precision and compacted. Thus forming a perfectly circular conductor which enables reduction in overall diameter for space saving in high density wiring.
  • Conductor Speciality : The strands do not get cut when stripping the insulation. The conductor offers perfect contact at pins, terminals and sockets. Thus, eliminating spot heating and sparking.

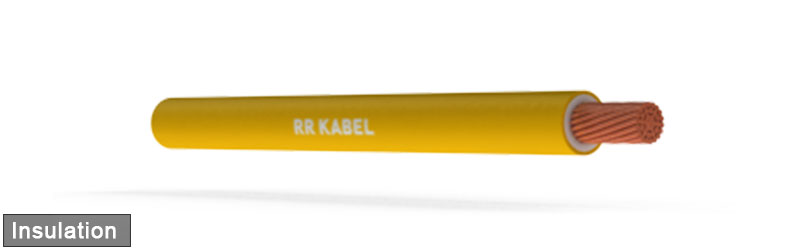

  • Insulation : Specially formulated grade of halogen free flame retardant (HFFR) compound is used. The insulation does not burn readily. It does not melt and drip, smoke is negligible, transparent, non-toxic. The victims trapped in fire do not suffocate and this facilitate fire fighting operations. Unlike PVC, the smoke emitted is non-corrosive.
  • Colours : Red, yellow, blue, black, green, grey and white
  • Marking : The cables are printed with marking of ‘FIREX HFFR’ upto 4 Sq. mm & “RR KABEL HFFR” for size 6 Sq. mm and onwards
  • Packing : 90 mtr. coils packed in protective cartons
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – grey, 07 – white.
Part NumberNominal Cross Sectional Area (Sq. mm)Nominal Insulation Thickness (mm)Number *Nominal Dia. of StrandsApprox. Overall Diameter (mm)Max. DC Conductor Resistance at 20OC (Ω/km)Current Rating (Amps)
CasingConcealed
01040101xx7010.737/0.202.619.51211
01040102xx701.50.737/0.223.013.31615
01040103xx702.50.861/0.223.67.982319
01040104xx7040.861/0.304.14.953026
01040105xx706*0.884/0.304.63.303833
Properties :-
TestTest MethodValues
Limited Oxygen IndexASTM – D 2863≥ 32%
Limited Temp. IndexASTM – D 2863> 250OC
Smoke Density (Light Absorption)ASTM – D 2843< 10%
Acid Gas GenerationIEC – 60754 – 1< 5%
