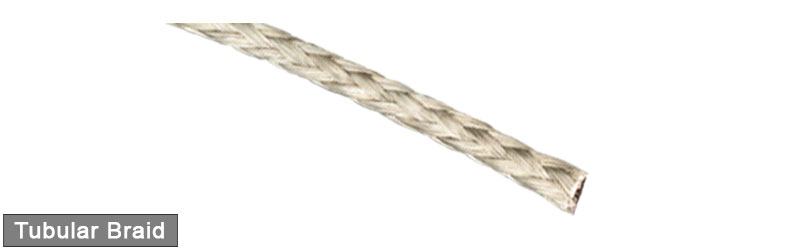

TUBULAR BRAIDS

Applications :-
  • Tubular braids are used for covering and shielding. They protect the cables and electrical conductors against interference and to realize a safe data transfer.
Technical Data :-
  • Material : Annealed electrolytic grade copper wire., Wire Diameter – 0.16 to 0.3 mm.
  • Packing : In rings or spools or wooden drums.
Cable Construction :-
  • Surface : Plain copper or Tinned.
Cable Design Parameters :-
  • Kindly complete the part numbers by adding the suffix (in place of ‘c’) for the conductor type required: 0 = Plain/Bare Copper, 1 = Tinned Copper.
Part NumberNominal Cross-Sectional Area (Sq. mm)No. of WiresStrand Diameter (mm)Width (mm)Thickness (mm)
12100101000c7.9036 X 70.28.525
12100102000c10.2036 X 90.21027
12100103000c12.4536 X 110.21229
12100104000c35.8036 X 140.32570
12100105000c51.1048 X 150.32590
