This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The types mentioned here are suitable for indoor laying and are equipped with a special PVC sheath.
Technical Data :-
Standard : Adapted to DIN 19245 & EN 50170
Operating Top Level Voltage: Max. 250 V (not for purpose of high current and power installation)
Insulation Resistance : Min. 5000 GΩ x cm
Temperature Range : Flexing -5°C to +70°C.
Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 12 x cable ø. Fixed installation 6 x cable ø
Mutual Capacitance : Approx. 35 nF/km
Characteristic Impedance : f>1 MHz
Cross-talk Attenuation : Min. 80 dB up to 1 MHZ
Inductance : Approx. 0.65 mH/km
Conductor Resistance (loop) at 20°C : 110 Ω/km

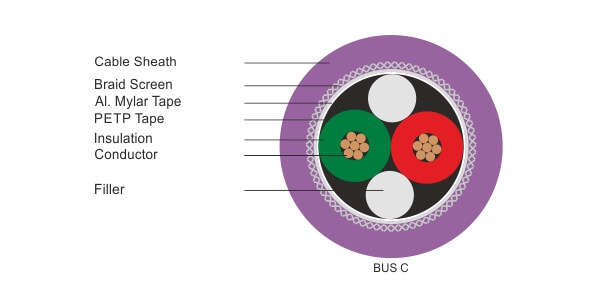

Cable Design Parameters :-
Part Number
No. of Pairs & Nominal Cross Sectional Area (Sq. mm)
Approx. Cable Diameter (mm)
Approx. Copper Weight (kg/km)
Approx Cable Weight (kg/km)
50800121064
1 x 2 x 0.64 mm
8.2 ± 0.5 mm
22
98.0
Need More Information?
Please email us and our support staff will contact you back

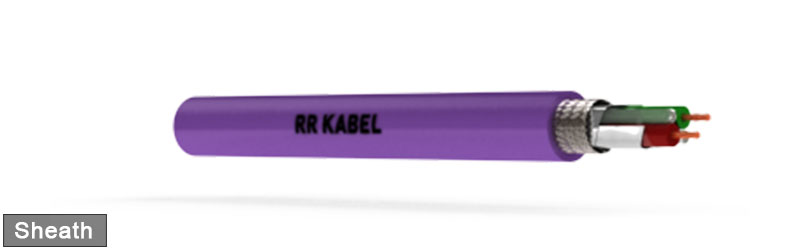

 1 X 2 X 0.64/Sheath.jpg)

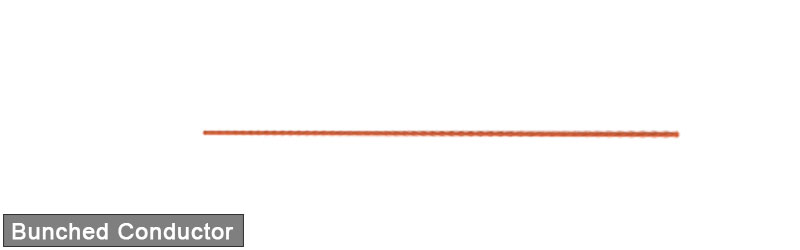

 1 X 2 X 0.64/Bunched-Conductor.jpg)

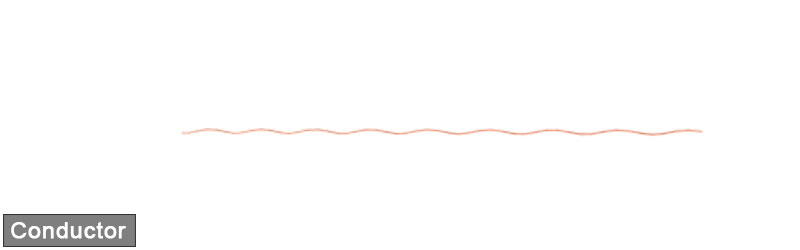

 1 X 2 X 0.64/Conductor.jpg)

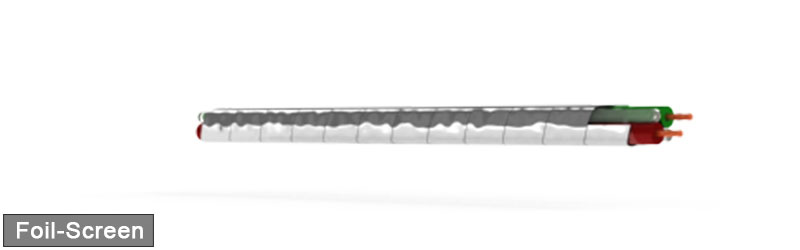

 1 X 2 X 0.64/Foil-Screen.jpg)

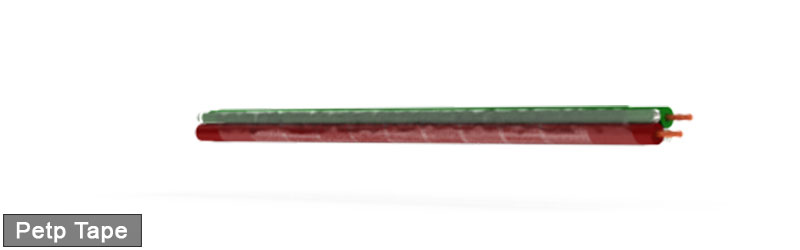

 1 X 2 X 0.64/Petp-Tape.jpg)

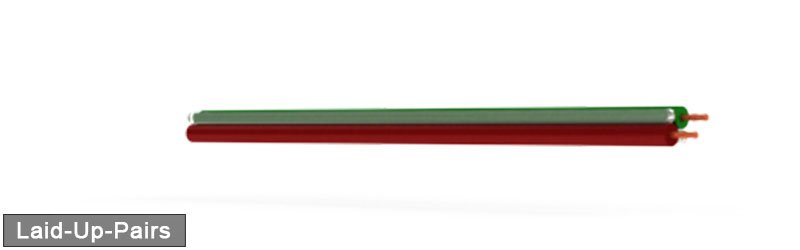

 1 X 2 X 0.64/Laid-Up-Pairs.jpg)

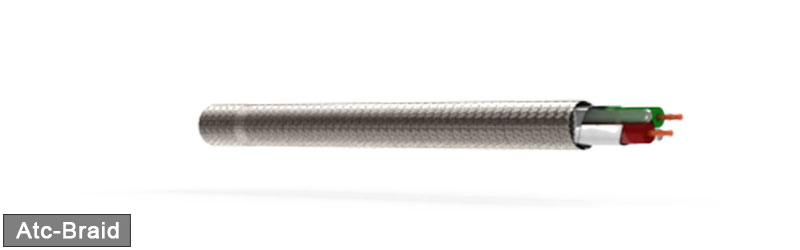

 1 X 2 X 0.64/Atc-Braid.jpg)
