JZ-40415 CP

Application :-
  • For use as a data and control cable in machinery, computer systems etC as well as a signal cable for electronics. The high level of degree of interference protection. The screening density assures disturbance-free transmission of all signals and impulses. screening ensures a high. Such cables can also be used for outdoor applications for the permitted temperature range.
Technical Data :-
  • Standard : In acC to HD 21.13 S1 resp. VDE 0281-13 and HD 22.10 S1
  • Nominal Voltage : U / U 300 / 500 V O
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C.
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 20 x cable ø. Fixed installation 6 x cable ø
  • Test Voltage : Core/core: 4000V. Core/screen: 2000V

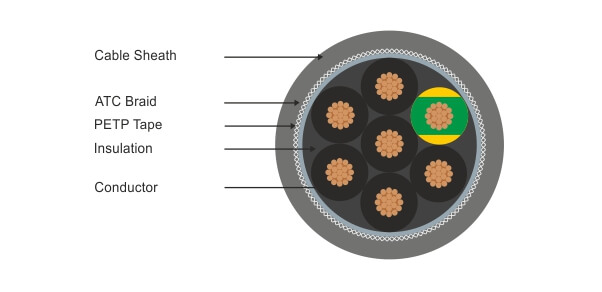

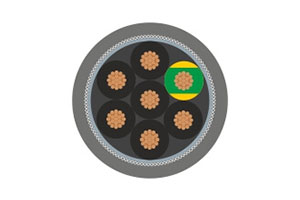

Cable Construction :-

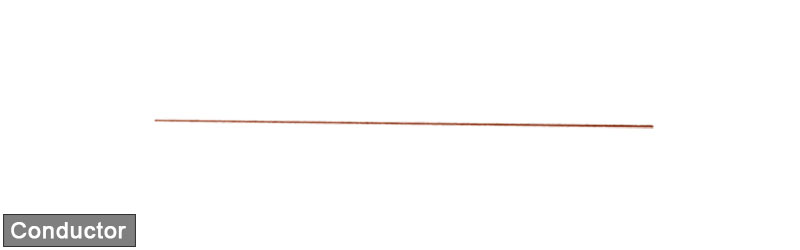

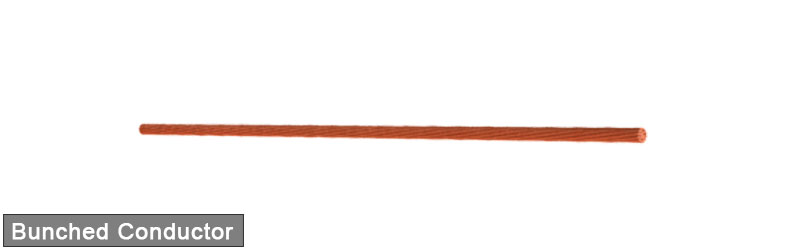

  • Bare copper, fine wire conductors, bunch stranded EN 60228 Cl. 5.

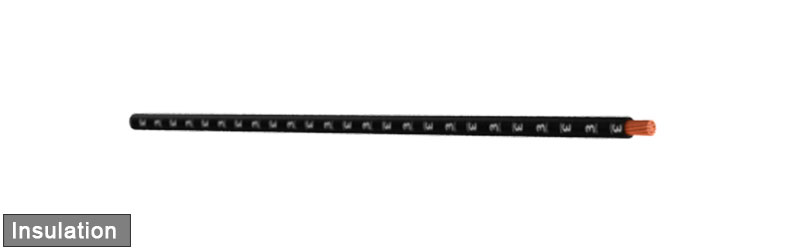

  • Core insulation of PVC TI2, EN 50363-3.
  • Black core with continuous white numbering to DIN VDE 0293.
  • Green/yellow earth core in outer layer (3 cores and above).

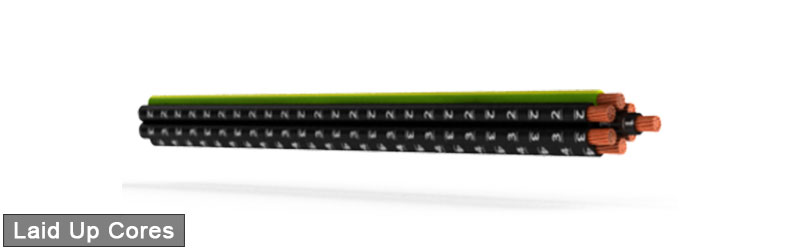

  • Cores stranded in layers with optimal lay-length.

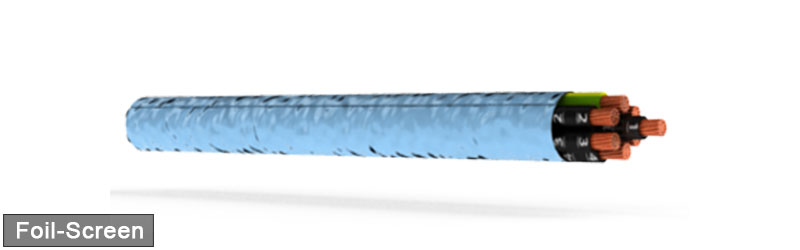

  • PETP tape.

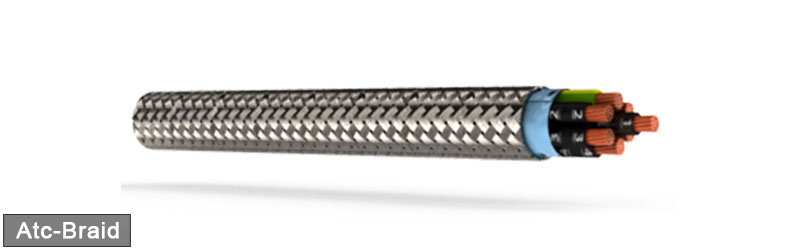

  • Tinned copper, braided screen, approx 85% coverage.

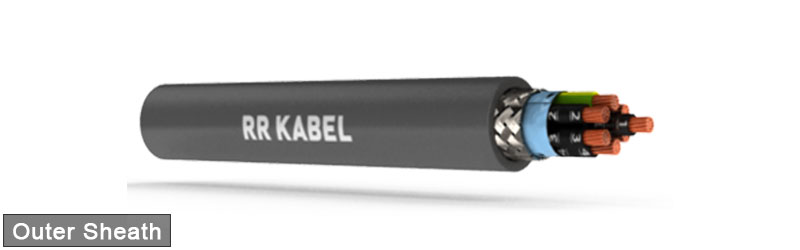

  • Special polyurethane outer sheath (PUR).
  • Sheath colour : Grey (RAL 7001).
Cable Design Parameters :-
Part NumberNo. of Cores & Nominal Cross Sectional Area(Sq. mm)Approx. CableDiameter (mm)Approx. CopperWeight (kg/km)Approx. CableWeight (kg/km)
0403002010502 x 0.55.819.345
0403003110503G 0.56.125.556
0403003010503 x 0.56.125.556
0403004110504G 0.56.530.164
0403004010504 x 0.56.530.164
0403005110505G 0.57.035.875
0403005010505 x 0.57.035.875
0403007110507G 0.57.546.792
0403007010507 x 0.57.546.792
04030121105012G 0.59.974.2152
04030120105012 x 0.59.974.252
04030181105018G 0.511.5104.3210
04030180105018 x 0.511.5104.3210
04030251105025G 0.513.4140.0278
04030250105025 x 0.513.4140.0278
0403002010752 x 0.756.225.754
0403003110753G 0.756.532.365
0403003010753 x 0.756.532.365
0403004110754G 0.757.040.478
0403004010754 x 0.757.040.478
0403005110755G 0.757.748.995
0403005010755 x 0.757.748.995
0403007110757G 0.758.364.5119
0403007010757 x 0.758.364.5119
04030121107512G 0.7510.9103.2194
04030181107518G 0.7512.7147.4271
04030251107525G 0.7514.8219.5372
04030250107525 x 0.7514.8219.5372
0403002000012 x 16.530.561
0403003100013G 16.840.375
0403003000013 x 16.840.375
0403004100014G 17.351.091
0403004000014 x 17.351.091
0403005100015G 18.160.7110
0403005000015 x 18.160.7110
0403007100017G 18.880.5140
0403007000017 x 18.880.5140
04030121000112G 111.5131.2229
04030181000118G 113.9188.5337
04030251000125G 115.9277.9452
0403002011052 x 1.57.140.875
0403003111053G 1.57.553.895
0403003011053 x 1.57.553.895
0403004111054G 1.58.269.0119
0403004011054 x 1.58.269.0119
0403005111055G 1.58.984.4142
0403005011055 x 1.58.984.4142
0403007111057G 1.59.9112.9187
0403007011057 x 1.59.9112.9187
04030121110512G 1.513.0183.5306
04030181110518G 1.515.6288.5463
04030251110525G 1.517.9395.0614
04030341110534G 1.520.8511.9811
0403003112053G 2.58.984.4140
0403004112054G 2.59.9107.5179
0403005112055G 2.511.0130.8219
0403007112057G 2.511.9176.5281
04030121120512G 2.516.0314.8491
04030181120518G 2.519.0454.1709
04030251120525G 2.522.2617.0954
0403004100044G 411.6160.8258
0403007100047G 414.4269.0425
0403004100064G 614.2233.7382
0403007100067G 617.0415.7619
0403004100104G 1017.2402.9608
0403005100105G 1019.5499.3772
0403004100164G 1620.2647.6909
0403005100165G 1622.6799.61132
0403004100254G 2525.1986.21396
0403005100255G 2528.01220.91737
0403004100354G 3528.01369.01838
