AYFY/YFY-AYWY/YWY-2 CORE

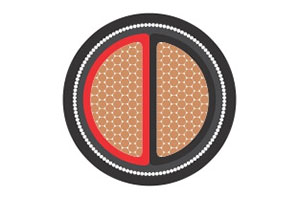

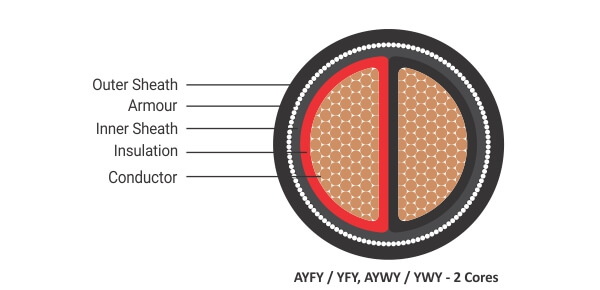

Cable Construction :-
  • 1.1 kV, 2 cores AL / CU conductor, PVC insulated, galvanised steel strip / wire armoured cables as per IS 1554 Part – 1.

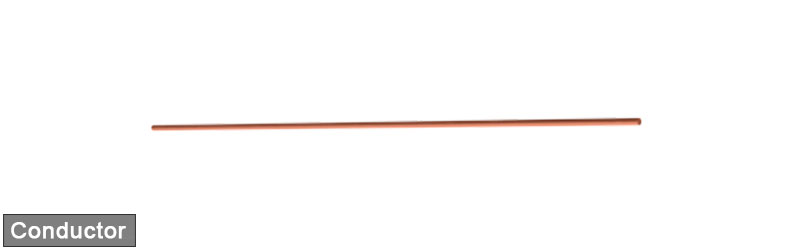

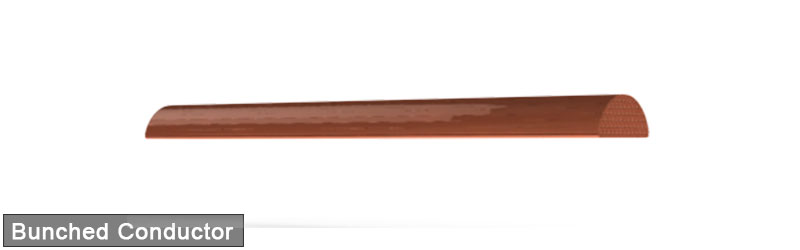

  • Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact round or compact shape conductor Cl. 2 as per IS 8130
  • In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded round Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded round or stranded compact conductor Cl. 2 as per IS 8130
  • Above 10 Sq. mm conductor are stranded round or compact round or compacted shaped Cl. 2 as per IS 8130.

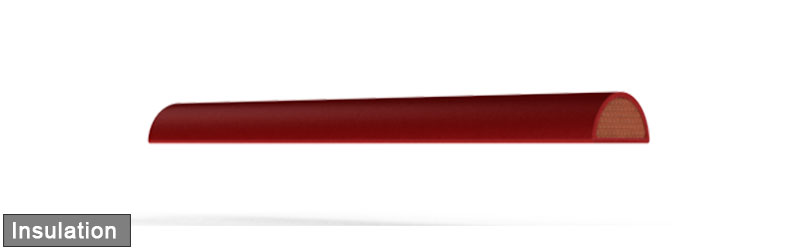

  • Insulation : PVC Type – A, as per IS 5831. (Option : HR PVC Type – C, as per IS 5831)

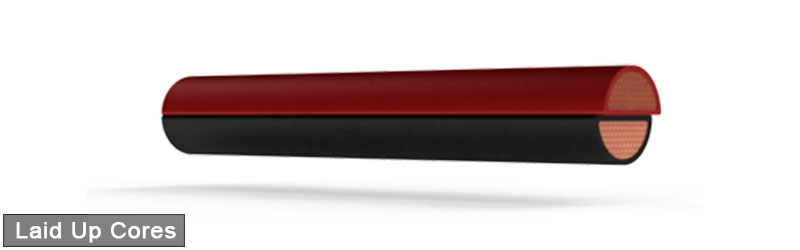

  • Core Color : Red, black

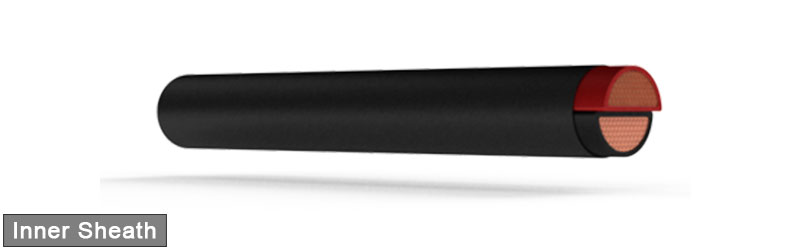

  • Inner Sheath : PVC / PVC tape as per IS 1554 (P – 1)
  • Armouring : Single armouring of aluminum wire or aluminum strip as per IS 1554 P – 1

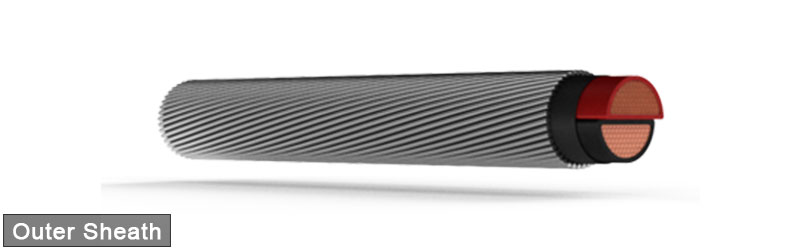

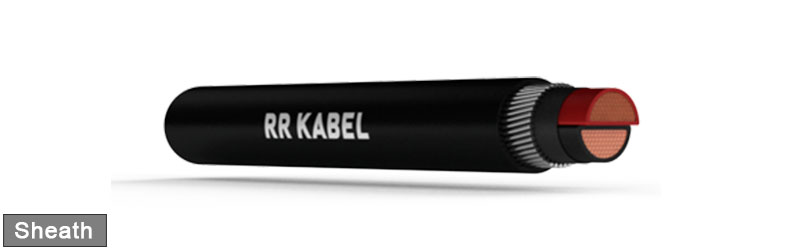

  • Outer Sheath : PVC Type ST-1 as per IS 5831. (Option : PVC Type – ST 2 as per IS 5831 / FR Type / FRLS Type)
  • Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters :-
  • While ordering, in addition to the part number the following details shall also be advised: Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2). Insulation Type – PVC Type A / C. Sheath Type – PVC Type ST – 1 / FR / FRLS; PVC Type ST – 2 / FR /FRLS.
PartNumberNominal Cross Sectional Area (Sq. mm)Minimum No. of Strands in ConductorNominal Thickness of Insulation (mm)Minimum Thick. of Inner Sheath (mm)Armouring with Flat AL Strip (AYFaY/YFaY)Armouring with Round Wire (AYWaY/YWaY)
ALCUNominal Thick. of Arm. Strip (mm)Minimum Thick. of Out. Sheath(mm)Approx. Overall Dia.(mm)Approx Net Wtof Cable (kg/km)Nominal Diameter of Wire (mm)Minimum Thick. of Out. Sheath (mm)Approx. Overall Dia. (mm)Approx Net Wtof Cable (kg/km)
AL Cable AYFaYCU Cable YFaYAL Cable AYWaYCU Cable YWaY
1107002000044_1/71.00.3N/AN/AN/AN/AN/A1.41.2418600650
110700200006611/71.00.3N/AN/AN/AN/AN/A1.41.2419660730
11070020001010161.00.3N/AN/AN/AN/AN/A1.41.2420750870
11070020001616661.00.30.81.40185807801.61.4020750950
11070020002525661.20.30.81.402070010001.61.40229001200
11070020003535661.20.30.81.402280012301.61.402310301450
11070020005050661.40.40.81.4025100016201.61.562613001900
1107002000707012121.40.40.81.5627120020501.61.562915002350
1107002000959515151.60.40.81.5630155027202.01.563320503200
11070020012012015181.60.50.81.5632180032902.01.723524003900
11070020015015015181.80.50.81.7235210039702.01.723727604600
11070020018518530302.00.60.81.8838250048002.01.884132005500
11070020024024030342.20.60.82.0443310060802.52.044742007200
11070020030030030342.40.70.82.2048370074002.52.205050008700
11070020040040053532.60.70.82.3653450094503.22.5258660011500
11070020050050053533.00.70.82.68565600118003.22.8464800014000
11070020063063053533.40.70.82.84666900147004.03.00721100018800
