JZ-YSY

Application :-
  • These cables are used as measuring and control cables in tool machinery, plant installation, power stations and in data equipment. The braided screen offers best possible protection against mechanical damage. The galvanised coating on the steel wire braiding not only helps protect against corrosion, but also notably improves the soldering performance.
Standard :-
  • Adapted to DIN VDE 0245, 0281, 0293, 0295.
Technical Data :-
  • Nominal Voltage : U / U 300 / 500V O
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C.
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V
  • Breakdown Voltage : Min. 8000V

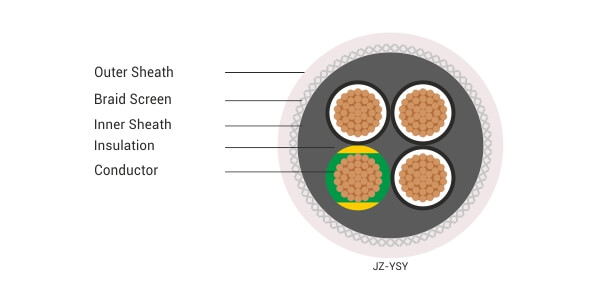

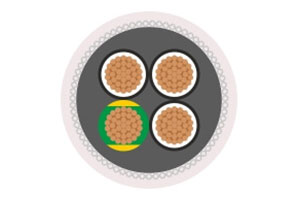

Cable Construction :-

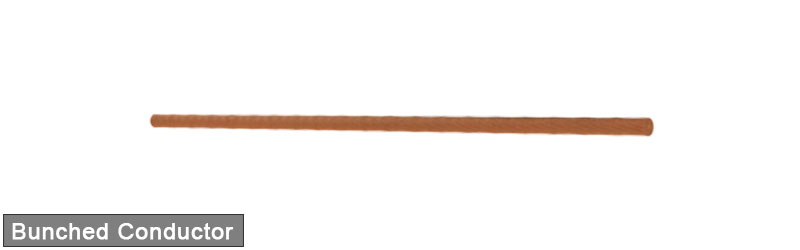

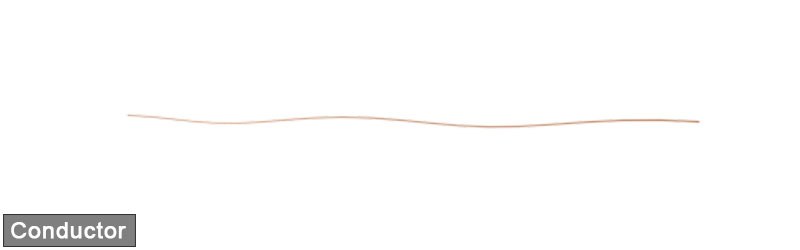

  • Bare copper, fine wire conductors, to EN 60228 Cl.5.

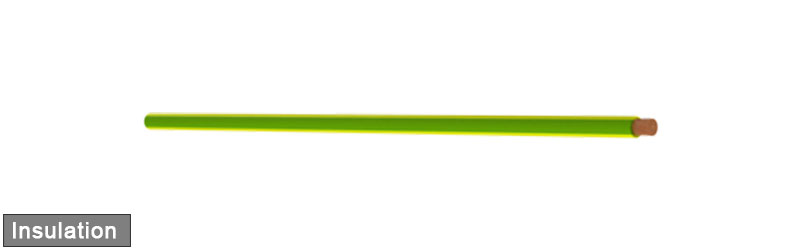

  • Core insulation of PVC TI2, EN 50363-3.
  • Black Core with continuous white numbering to DIN VDE 0293.
  • Green/Yellow earth core in outer layer (3 cores and above).

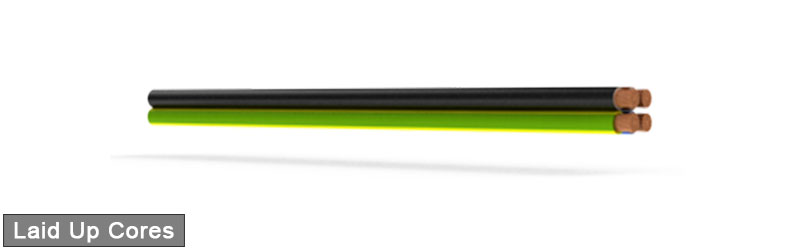

  • Cores stranded in layers with optimal lay-length.

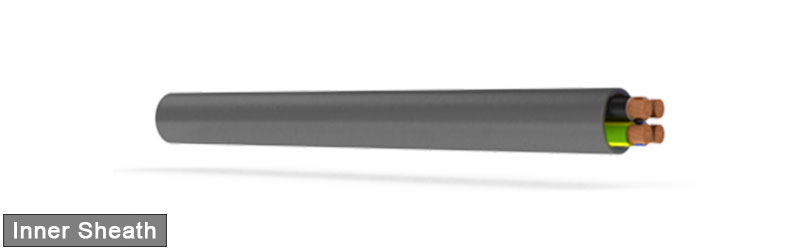

  • Special PVC inner jacket.

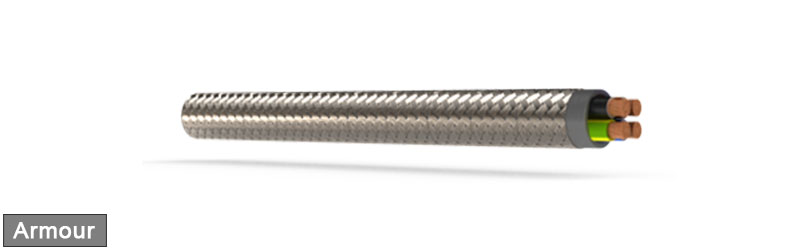

  • Galvanized steel wire screening.

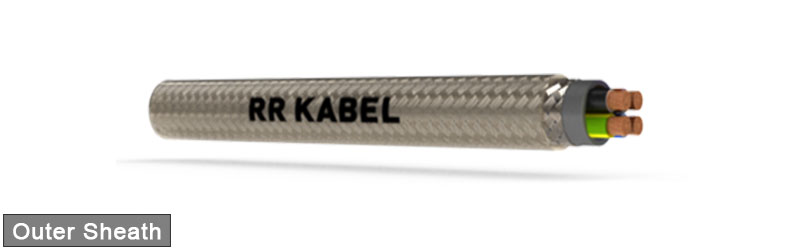

  • Special PVC outer jacket.
  • Colour transparent (also available in grey).
Cable Design Parameters :-
Part NumberNo. of Cores and Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
03110105011z7G 0.59.729.4155
03110106011z10G 0.511.642223
03110107011z12G 0.511.950.4237
03110108011z14G 0.512.558.8261
03110109011z18G 0.513.975.5319
03110110011z21G 0.514.988.1360
03110111011z25G 0.515.6104.9397
03110112011z30G 0.516.5125.9445
03110113011z40G 0.518.8167.9588
03110114011z61G 0.521.9256801
03110115021z2 x 0.758.212.699
03110116011z3G 0.758.518.9111
03110117011z4G 0.759.225.2142
03110118011z5G 0.759.731.5157
03110119011z7G 0.7510.344.1179
03110120011z9G 0.7512.456.7254
03110121011z12G 0.7512.975.5282
03110122011z15G 0.7514.194.4335
03110123011z18G 0.7514.9113.3389
03110124011z25G 0.7517157.4512
03110125011z34G 0.7519.3214650
03110126011z50G 0.7522.8314.8905
03110127021z2 x 18.516.8109
03110128011z3G 18.825.2135
03110129011z4G 19.533.6155
03110130011z5G 110.142173
03110131011z7G 11158.8207
03110132011z8G 112.567.1265
03110133011z9G 113.275.5291
03110134011z12G 113.9100.7333
03110135011z14G 114.4117.5362
03110136011z18G 115.9151.1452
03110137011z20G 116.8167.9500
03110138011z25G 118.1209.8597
03110139011z34G 120.5285.4761
03110140011z41G 122.2344.1896
03110141011z50G 124.2419.71070
03110142011z65G 127.2545.61355
03110143021z2 x 1.59.324.1143
03110144011z3G 1.59.736.1161
03110145011z4G 1.510.248.2181
03110146011z5G 1.511.160.2213
03110147011z7G 1.511.984.3265
03110148011z8G 1.51496.3330
03110149011z12G 1.515.4144.5430
03110150011z14G 1.515.9168.5469
03110151011z18G 1.517.6216.7574
03110152011z25G 1.520.3300.9771
03110153011z32G 1.522.1385.2926
03110154011z41G 1.524.9493.61174
03110155011z50G 1.527.1601.91403
03110156011z3G 2.511.160.2211
03110157011z4G 2.512.180.3267
03110158011z5G 2.513.2100.3314
03110159011z7G 2.514.3140.4392
03110160011z12G 2.518.2240.8626
03110161011z18G 2.521.4361.1875
03110162011z25G 2.524.4501.61159
03110163011z3G 412.795.7295
03110164011z4G 414127.6358
03110165011z5G 415.1159.5420
03110166011z7G 416.4223.3530
03110167011z4G 616.2191.4498
03110168011z5G 617.7239.3593
03110169011z7G 619.2335749
03110170011z4G 1019.4325.9745
03110171011z5G 1021.5407.3908
03110172011z7G 1023.4570.31147
03110173011z4G 1622.4542.81086
03110174011z5G 1624.6678.51324
03110175011z4G 2528.9844.41704
03110176011z5G 2531.81055.52093
03110177011z4G 3532.211892247
