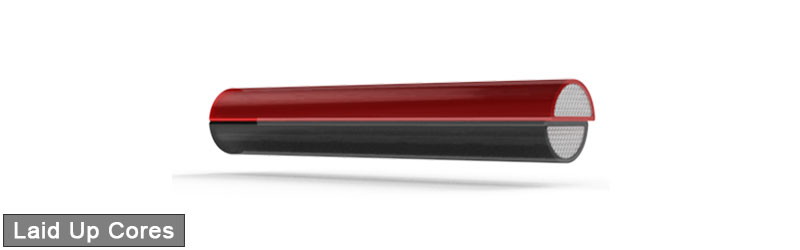

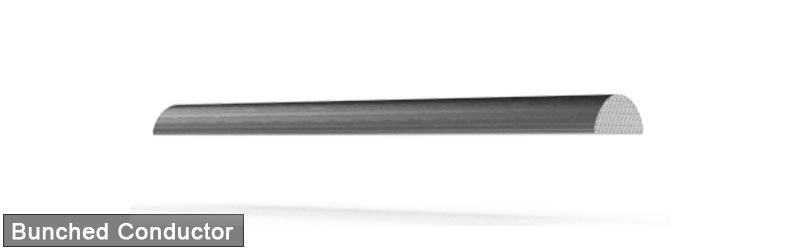

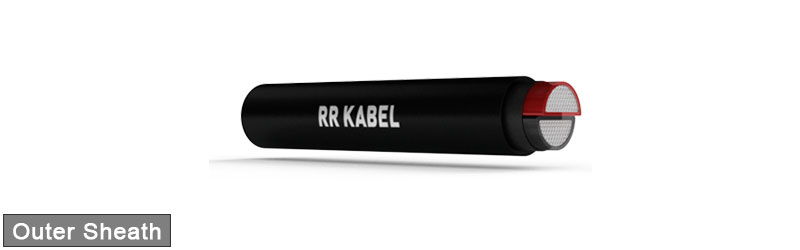

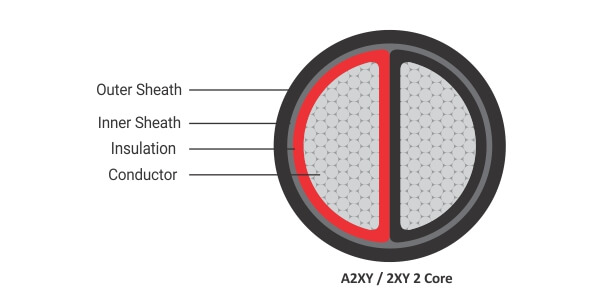

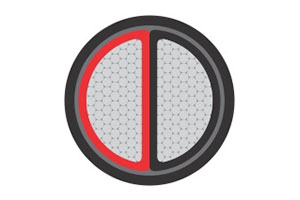

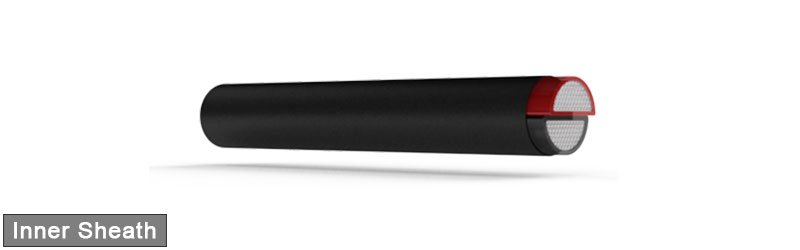

Part Number | Nominal Cross Sectional Area (Sq. mm) | Nominal Thickness of Insulation (mm) | Minimum Thickness of Inner Sheath (mm) | Nominal Thicknessof Outer Sheath (mm) | Approx.Overall Diameter (mm) | Approx. Net Wt. of Cable (kg/km) | |
---|---|---|---|---|---|---|---|
AL Cable A2XY | CU Cable 2XY | ||||||
111400200004 | 4 | 0.7 | 0.3 | 1.8 | 13 | 180 | 235 |
111400200006 | 6 | 0.7 | 0.3 | 1.8 | 14 | 220 | 300 |
111400200010 | 10 | 0.7 | 0.3 | 1.8 | 17 | 280 | 400 |
111400200016 | 16 | 0.7 | 0.3 | 1.8 | 17 | 300 | 440 |
111400200025 | 25 | 0.9 | 0.3 | 2.0 | 19 | 340 | 650 |
111400200035 | 35 | 0.9 | 0.3 | 2.0 | 20 | 415 | 840 |
111400200050 | 50 | 1.0 | 0.3 | 2.0 | 22 | 520 | 1090 |
111400200070 | 70 | 1.1 | 0.3 | 2.0 | 25 | 680 | 1500 |
111400200095 | 95 | 1.1 | 0.4 | 2.2 | 28 | 880 | 2010 |
111400200120 | 120 | 1.2 | 0.4 | 2.2 | 31 | 1080 | 2500 |
111400200150 | 150 | 1.4 | 0.4 | 2.2 | 33 | 1295 | 3060 |
111400200185 | 185 | 1.6 | 0.5 | 2.4 | 37 | 1630 | 3840 |
111400200240 | 240 | 1.7 | 0.5 | 2.6 | 41 | 2070 | 4970 |
111400200300 | 300 | 1.8 | 0.6 | 2.8 | 44 | 2520 | 6160 |
111400200400 | 400 | 2.0 | 0.6 | 3.0 | 48 | 3200 | 7830 |
111400200500 | 500 | 2.2 | 0.7 | 3.4 | 54 | 4040 | 9990 |
