A2XY/2XY-1 CORE

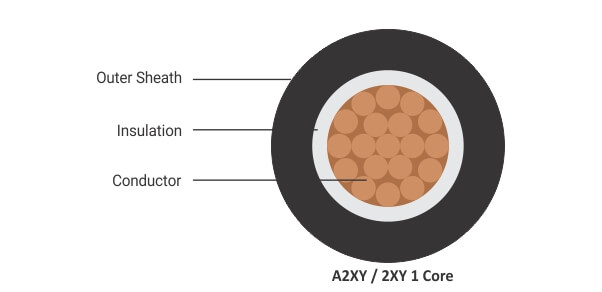

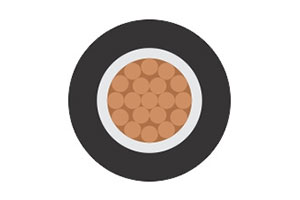

Cable Construction :-
  • 1.1 kV, 1 cores AL / CU conductor, XLPE insulated, unarmoured cables as per IS 7098 Part – 1.

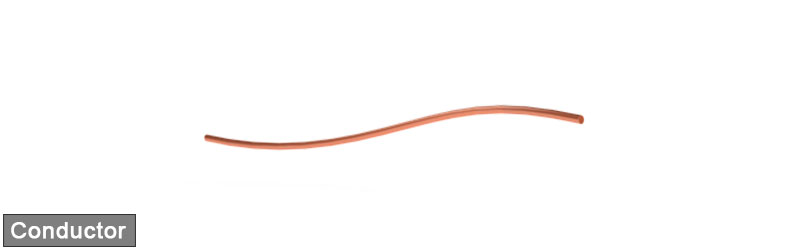

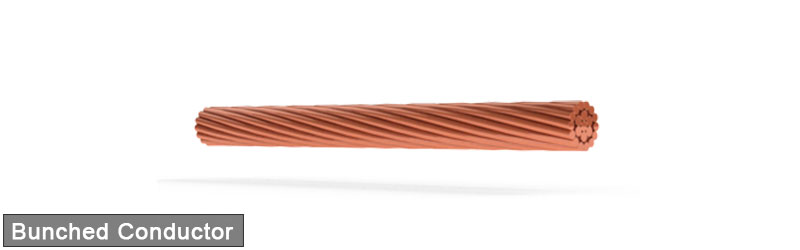

  • Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact Cl. 2 as per IS 8130
  • In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm & above stranded round or stranded compact Cl. 2 as per IS 8130

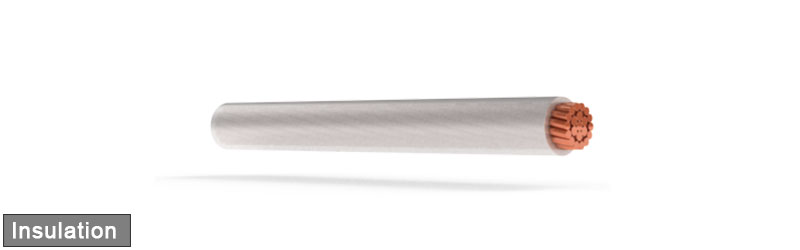

  • Insulation Material : Crosslinked polyethylene (XLPE)
  • Core Colours : Red or yellow or blue or black or natural

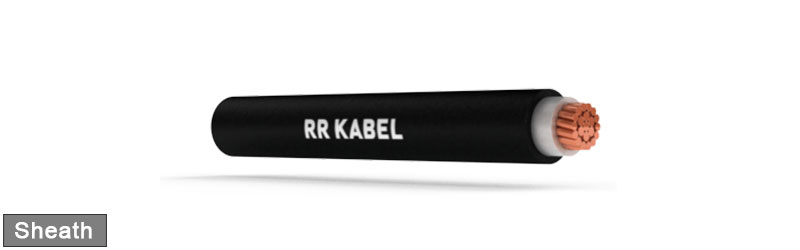

  • Outer Sheath : PVC Type ST – 2 as per IS 5831 (Option: FR Type / FRLS Type)
  • Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters :-
  • While ordering, in addition to the part number the following details shall also be advised: Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2). Sheath Type – PVC Type ST – 2 (FR or FRLS).
Part NumberNominal Cross Sectional Area(Sq. mm)Nominal Thickness of Insulation(mm)Nominal Thicknessof Outer Sheath(mm)Approx.Overall Diameter(mm)Approx. Net Wt. of Cable (kg/km)
AL Cable A2XYCU Cable 2XY
111300100016160.71.811125225
111300100025250.91.812170330
111300100035350.91.813205425
111300100050501.01.815250550
111300100070701.11.816335750
111300100095951.11.8184251000
1113001001201201.21.8205151250
1113001001501501.42.0226151520
1113001001851851.62.0247701880
1113001002402401.72.0279652415
1113001003003001.82.03011602980
1113001004004002.02.23314803800
1113001005005002.22.23618404815
1113001006306302.42.24023506150
1113001008008002.62.44728307840
11130010100010002.82.65136709800
