SERVO FD 95810 P

Application :-
  • For use in power chains or moving machine parts. Suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipment used in automation engineering assembly lines, production lines and in all kinds of machines and plant engineering.
Technical Data :-
  • Standard : Requirement adapted to DINVDE 0245, 0281
  • Nominal Voltage : UO / U 300 / 500V
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V

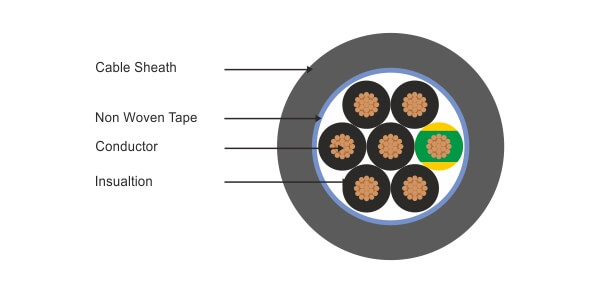

Cable Construction :-

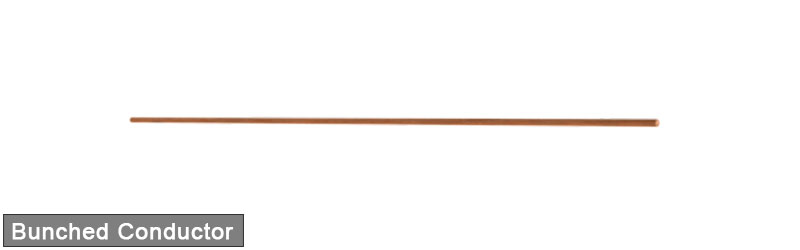

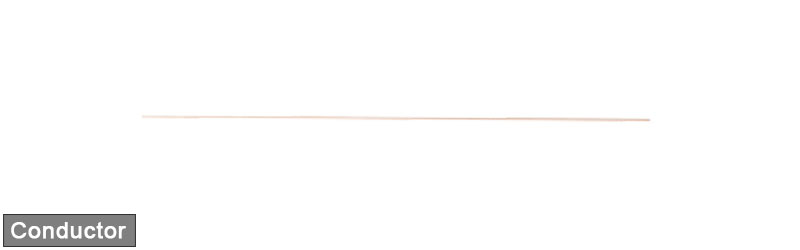

  • Bare copper, fine wire conductors, to EN 60228 Cl.6.

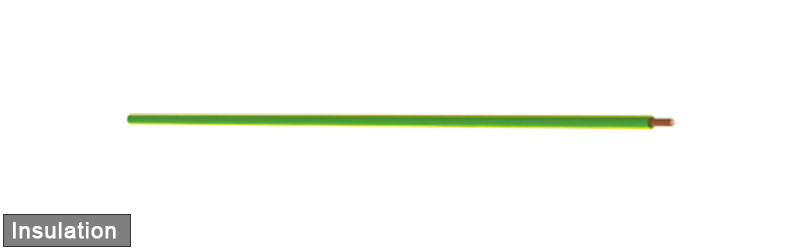

  • Core insulation of special PVC TI2 EN 50363-3.
  • Black core with continuous white numbering according to DINVDE 0293.
  • Green-yellow earth core in the outer layer (3 cores and above).

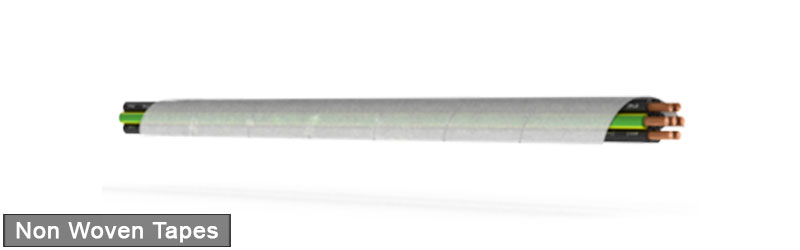

  • Non woven wrapping.

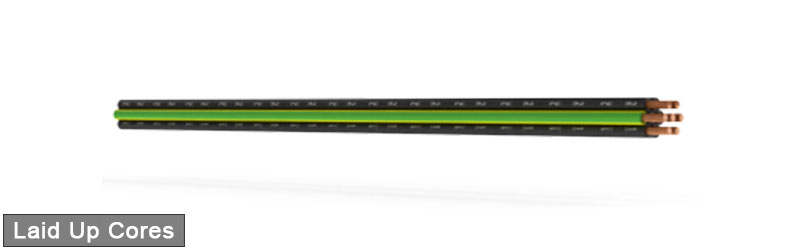

  • Cores stranded in layers with short lay-length.

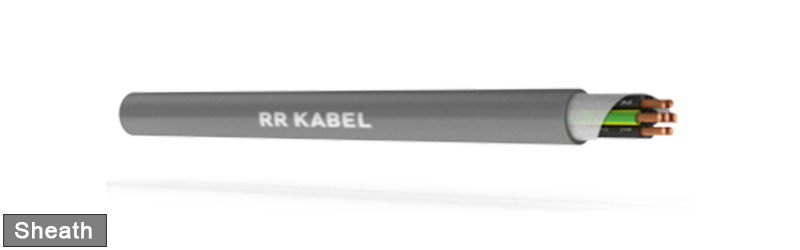

  • Outer sheath of special PVC, TM2 to DIN/BS EN 50363-4.1.
  • Colour grey (RAL 7001).
Cable Design Parameters :-
Part NumberNo. of Cores & Nominal Cross Sectional Area(Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0414002010502 x 0.55.39.735
0414003110503G 0.55.713.043
0414004110504G 0.56.317.454
0414005110505G 0.56.821.764
0414007110507G 0.58.030.489
04140121105012G 0.59.552.1135
04140181105018G 0.511.478.1198
0414002010752 x 0.755.713.043
0414003110753G 0.756.219.555
0414004110754G 0.756.826.068
0414005110755G 0.757.432.582
0414007110757G 0.758.945.6118
04140121107512G 0.7510.678.1180
04140181107518G 0.7512.7117.2264
04140251107525G 0.7515.2162.7373
0414002000012 x 16.117.451
0414003100013G 16.626.065
0414004100014G 17.334.783
0414005100015G 18.043.4101
0414007100017G 19.660.7144
04140121000112G 111.4104.1220
04140181000118G 113.9156.2329
04140251000125G 116.4216.9457
04140341000134G 118.9295.1614
04140411000141G 120.6355.8735
04140501000150G 122.3433.9877
04140651000165G 125.4564.11139
0414002011052 x 1.57.026.070
0414003111053G 1.57.639.190
0414004111054G 1.58.352.1114
0414005111055G 1.59.365.1143
0414007111057G 1.510.291.1182
04140121110512G 1.513.3156.2312
04140161110516 G 1.514.6208.3395
04140181110518G 1.515.4234.3444
04140251110525G 1.518.1325.4614
04140341110534G 1.520.8442.6822
04140421110542G 1.522.6546.7997
04140501110550G 1.524.7650.81186
0414003112053G 2.59.065.1136
0414004112054G 2.510.086.8174
0414005112055G 2.511.2108.5218
0414007112057G 2.512.5151.9287
04140121120512G 2.516.0260.3482
04140141120514G 2.517.2303.7559
0414004100044G 411.7138.8255
0414005100045G 413.1173.6320
0414001100061 G 66.452.287
0414004100064G 613.9208.6372
0414001100101 G 107.789.6139
0414004100104G 1017.6358.5616
0414005100105G 1019.6448.2767
0414001100161 G 169.2141.2209
0414004100164G 1621.0565.0925
