H05V2-K & H07V2-K

Application :-
  • Heat resistant cable designed for internal wiring in switch control, relay and instrumentation panels of power switch gear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standard :-
  • BS/VDE EN 50525-2-31.
Technical Data :-
  • Voltage Rating : 0.5 to 1 mm² – 300 / 500V, 1.5 to 240 mm² – 450 / 750V
  • Temperature Range : -30°C to +70°C
  • Minimum Bending Radius : Cable diameter ≤ 8 mm : 4 x outer diameter, Approx. diameter > 8 to 12 mm : 5 x outer diameter, Approx. diameter > 12 mm : 6 x outer diameter
  • Test Voltage : 2500V
Cable Construction :-

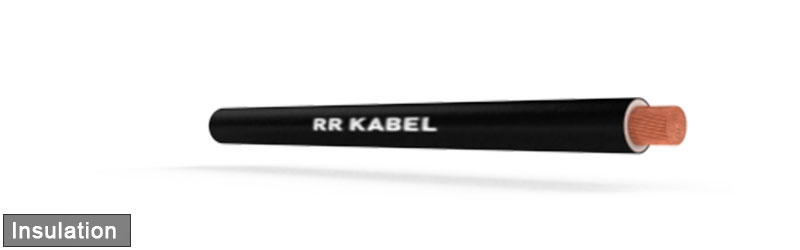

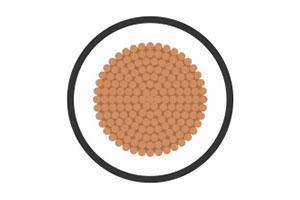

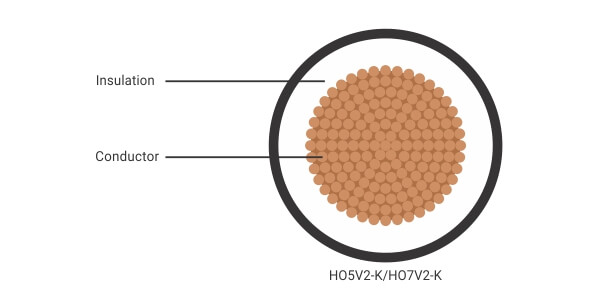

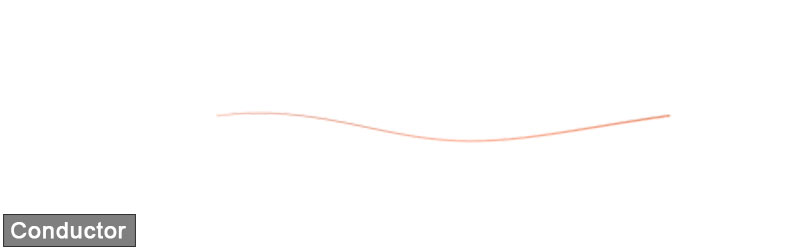

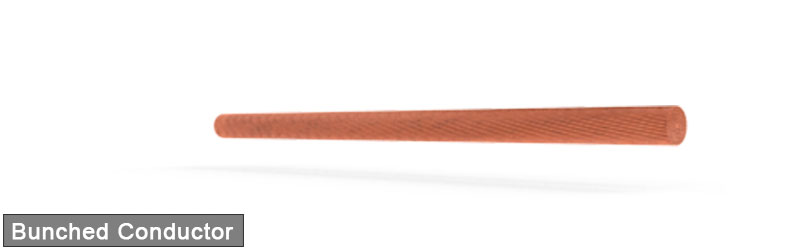

  • Conductor Class 5 flexible plain / metal coated stranded according to EN 60228. Insulation PVC (Polyvinyl chloride) TI1 to BS EN 50363- 3.
Properties :-
  • PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
  • By adding the suffix (in place of ‘c’) for the conductor type required: 0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC)
Nominal CrossSectional Area (Sq. mm)Nominal Thickness of Insulation (mm)Mean Overall DiameterApprox. Cable Weight (kg/km)
Lower Limit (mm)Upper Limit (mm)
H05V2K-0.50.62.12.58.5
02030102xx3c0.750.62.22.711.5
02030103xx3c10.62.42.813.5
H07V2K-02030104xx3c1.50.72.83.420
02030105xx3c2.50.83.44.132
02030106xx3c40.83.94.846
02030107xx3c60.84.45.365
02030108xx3c101.05.76.8110
02030109xx3c161.06.78.1167
02030110xx3c251.28.410.2257
02030111xx3c351.29.711.7358
