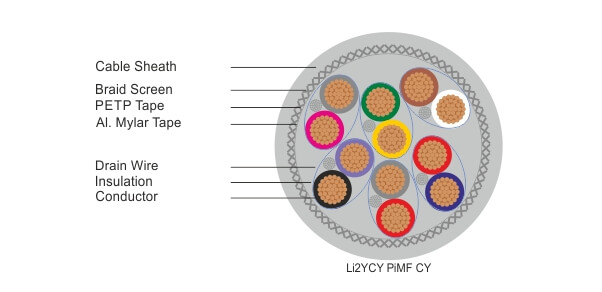

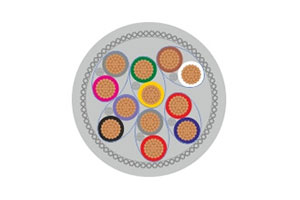

Li2YCY PiMF-CY

Applications :-
  • Absolute disturbance-free data transfer both for installed terminals in all areas of medicine and data technology. Also suitable for use in machine tool and steel producing industries, traffic signal systems, assembly lines and food processing.
Technical Data :-
  • Standard : PE insulated cable for computer insulation
  • Nominal Voltage: Max. 250 V (not for purpose of high current and power installation)
  • Test Voltage : Core / core 2000 V. Core / screen 1000V
  • Insulation Resistance : Min. 5000 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C.
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Fixed 10 x cable ø
  • Mutual Capacitance : 0.22 mm² max., 70 nF/km, 0.34 mm² max., 70 nF/km, 0.5 mm² max., 75 nF/km, 1 mm² max., 85 nF/km
  • Characteristic Impedance : f>1 MHz
  • Cross-talk Attenuation : Min. 80 dB up to 1 MHZ
  • Inductance : Approx. 0.65 mH/km
  • Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Cable Design Parameters :-
Part NumberNo. of Pairs & Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx Cable Weight (kg/km)
507002210222 x 2 x 0.22833.576
507003210223 x 2 x 0.228.347.896
507004210224 x 2 x 0.229.368.8127
507008210228 x 2 x 0.2212.4191.2286
5070102102210 x 2 x 0.2213.8284398
507002210342 x 2 x 0.348.544.190
507003210343 x 2 x 0.348.867.2120
507004210344 x 2 x 0.349.997.5161
507008210348 x 2 x 0.3413.2283.3389
5070102103410 x 2 x 0.3414.7421.5548
507002210502 x 2 x 0.5956.3106
507003210503 x 2 x 0.59.388.8146
507004210504 x 2 x 0.510.4132.7203
507005210505 x 2 x 0.511.4185.7268
507008210508 x 2 x 0.514.1405.5523
5070102105010 x 2 x 0.515.6591.3731
507002200012 x 2 x 110.376.3138
507003200013 x 2 x 110.6116.1187
507004200014 x 2 x 112167.3254
5070102000110 x 2 x 117.7636.3808
