FLYY

Applications :-
  • These cables are ideal for use in automotive and marine applications where higher current carrying capacity and mechnical strength are required.
Standard :-
  • In accordance with ISO 6722.
Specifications :-
  • Voltage Rating : 60V DC, 25V AC (suitable for 12V and 24V systems)
  • Temperature Range : -40°C to +105°C (3000 hours)

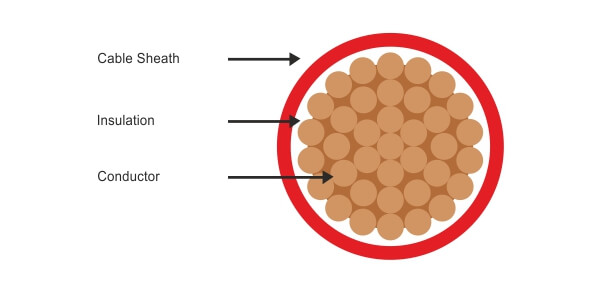

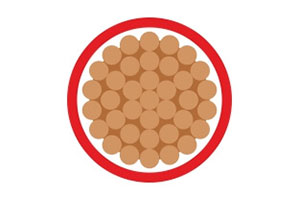

Cable Construction :-

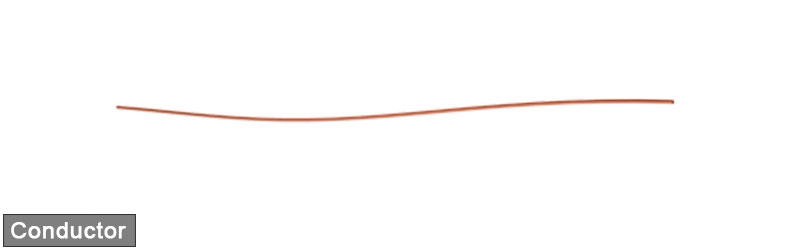

  • Soft annealed electrolytic copper Cu-ETP according to DIN EN 13602.

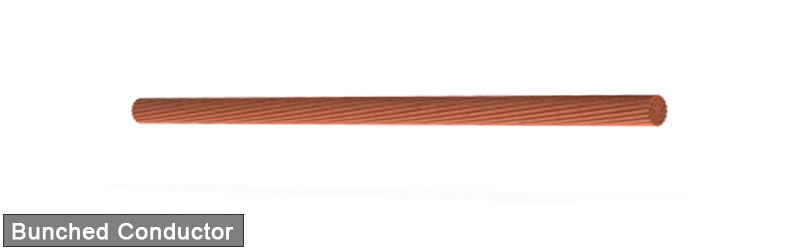

  • Conductor construction according to ISO 6722.

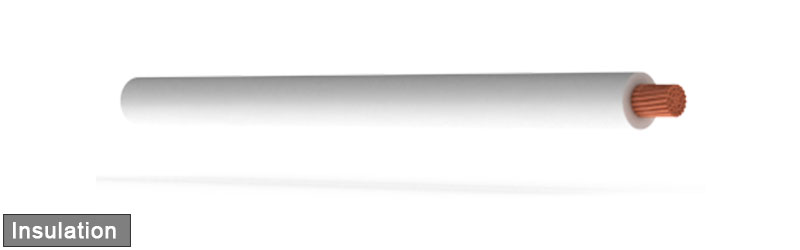

  • PVC insulation, Cl. B to ISO 6722.

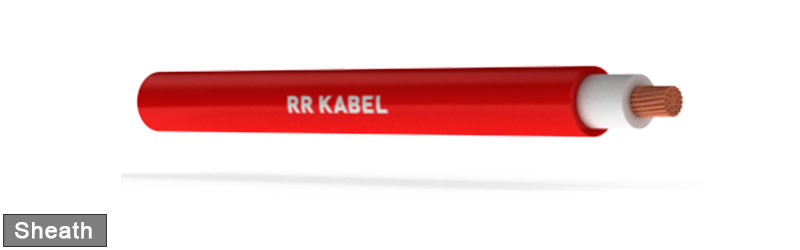

  • PVC sheath, Cl. B to ISO 6722.
  • Packing : Packing available in 100 mtr.
  • Longer length in spools or wooden drums
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required as per the list: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
Part NumberNominal Cross Sectional Area (Sq. mm)No. of StrandsMax. Strand Diameter (mm)Nominal Conductor Diameter (mm)Max. DC Conductor Resistance at 20 C (Ω/km)Nominal Insulation Thickness (mm)Nominal Core Diameter (mm)Sheath Thickness (mm)Overall Diameter
(Min.)(Max.)
09020101xx310.5160.211.037.10.62.10.42.73.1
09020102xx310.75240.211.224.70.62.30.43.03.3
09020103xx311320.211.3518.50.62.50.43.23.6
09020104xx311.5300.261.712.70.62.80.53.74.1
09020105xx312400.262.09.420.63.00.53.94.3
09020106xx312.5500.262.27.60.73.50.54.34.8
