Part Number | Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) | ||||||
---|---|---|---|---|---|---|---|---|---|---|

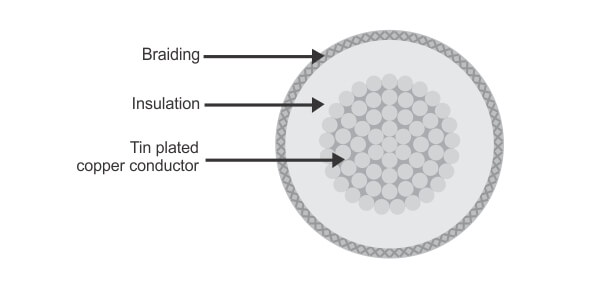

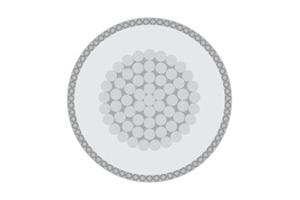

SiF-GL | 80501010180 | 0.25 | 2.4 | 2.4 | 6 | |||||
80501020180 | 0.5 | 2.6 | 4.5 | 9 | ||||||
80501030180 | 0.75 | 2.9 | 6.7 | 12 | ||||||
80501040180 | 1 | 3 | 9 | 14 | ||||||
80501050180 | 1.5 | 3.3 | 12.9 | 20 | ||||||
80501060180 | 2.5 | 3.9 | 21.5 | 31 | ||||||
80501070180 | 4 | 4.7 | 34.1 | 48 | ||||||
80501080180 | 6 | 5.7 | 51.2 | 73 | ||||||
80501090180 | 10 | 7.5 | 87.1 | 126 | ||||||
80501100180 | 16 | 8.9 | 145.1 | 199 | ||||||
80501110180 | 25 | 10.8 | 225.8 | 305 | ||||||
80501120180 | 35 | 12.1 | 317.9 | 415 | ||||||
80501130180 | 50 | 14.1 | 456.2 | 587 | ||||||
80601010180 | 0.2 | 1.7 | 2 | 4.4 | ||||||
SiD | 80601020180 | 0.28 | 1.8 | 2.8 | 5.4 | |||||
80601030180 | 0.5 | 2 | 5 | 8.1 | ||||||
80601040180 | 0.75 | 2.1 | 7.4 | 10.6 | ||||||
80601050180 | 1 | 2.3 | 9.9 | 13.6 | ||||||
80601060180 | 1.5 | 2.5 | 14.9 | 18.9 | ||||||
80601070180 | 2.5 | 3.2 | 24.8 | 31.3 | ||||||
80601080180 | 4 | 3.9 | 39.6 | 49 | ||||||
80601090180 | 6 | 4.4 | 59.4 | 70.3 | ||||||
SiD-GL | 80701010180 | 0.5 | 2.4 | 5 | 11 | |||||
80701020180 | 0.75 | 2.5 | 7.4 | 14 | ||||||
80701030180 | 1 | 2.7 | 9.9 | 17 | ||||||
80701040180 | 1.5 | 2.9 | 14.9 | 22 | ||||||
80701050180 | 2.5 | 3.6 | 24.8 | 35 | ||||||
80701060180 | 4 | 4.3 | 39.6 | 53 | ||||||
80701070180 | 6 | 4.8 | 59.4 | 74 |
