BATTERY CABLE

Applications :-
  • These cables are generally used for electrical and electronic connections for Battery chargers.
Standard :-
  • Adapted to BS 6862
Specifications :-
  • Voltage Rating : Max. 200V
  • Test Voltage : 10kV
  • Temperature Range : -40°C to +90°C

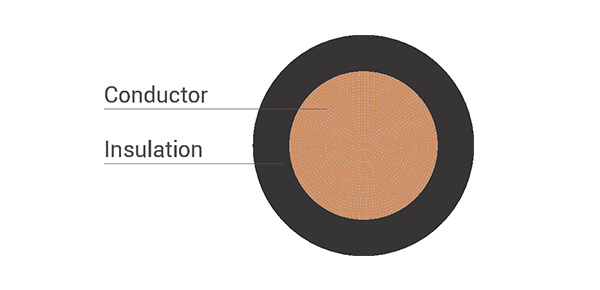

Cable Construction :-
  • Bare copper strands as per EN 60228, Cl. 6
  • Conductor Bunch Variants : Normal flex and Super flex
  • Special Elastomeric Insulation : Thermoplastic Elastomer Vulcanizate
Cable Design Parameters :-
Part NumberNominal Cross Sectional Area (Sq. mm)Max. Strand DiameterMin. InsulationThickness (mm)Approx. Cable Diameter (mm)
Normal Flex120201010001250.22.211.1
120201020001350.22.512.8
120201030001500.22.313.9
120201040001700.22.416.0
120201050001950.22.5518.0
1202010600011200.22.5519.7
Super Flex120201070001250.22.211.1
120201080001350.22.512.8
120201090001500.22.313.9
120201100001700.22.416.0
120201110001950.22.5518.0
