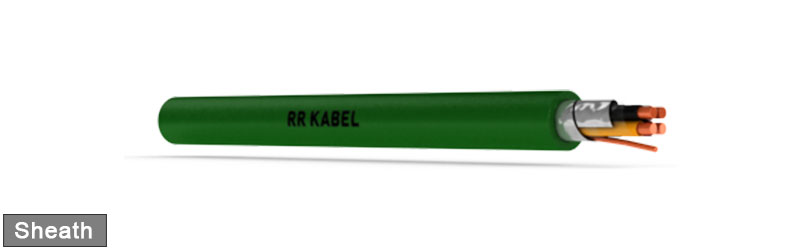

The EIB-BUS cable is used for the transmission of bus signals for intelligent automation systems in buildings. To install and operate a building’s management systems requires a wide range of technologies of different complexities. The control, monitoring and optimization of the various functions and services include heating and cooling, ventilation, lighting, indicator boards, blinds and often even the management of electric appliances.
The basic control technologies have been in existence for some time. Systems are available in various degrees of complexity, ranging from the timer-controlled water heater or thermo static radiator valves (TRVs), to the so-called "intelligent houses" which manage, according to prearranged efficiency criteria, everything from safety and security systems to air conditioning, and from lighting and ventilation systems to telematic services and domestic appliances.
Specifications :-
Based on KNX standard.
Operating Top Level Voltage : Max. 250V (not for purpose of high, current and power installation)
Temperature Range : Flexing -5°C to +50°C
Fixed installation -30°C to +70°C
Minimum Bending Radius : 7.5 x cable ø
Test Voltage : 4000VC

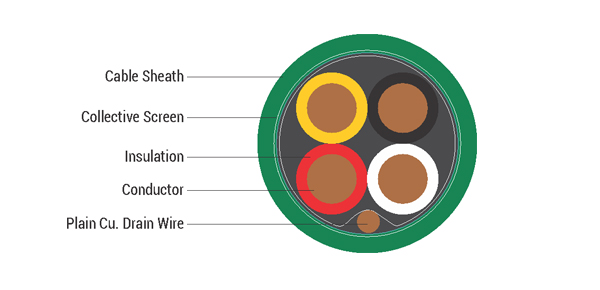

Cable Design Parameters :-
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for colour required: 00 – Transparent, 02 – black, 07 – white, 12 – grey
Part Number
No. of Pairs x Nominal Cross-Section (mm)
Approx. Cable Diameter (mm)
Approx. Copper Weight (kg/km)
Approx. Cable Weight (kg/km)
011000221080
2 x 2 x 0.8 mm
7.2 ± 0.5 mm
20.0
68.0
