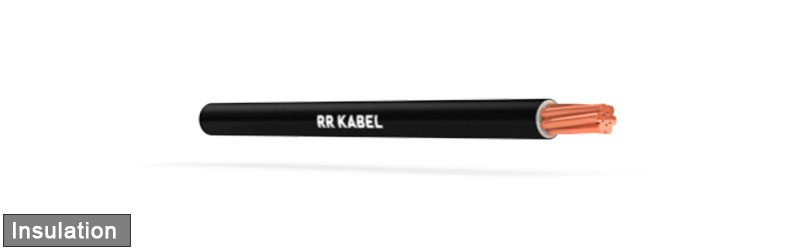

FIXED WIRE (IS 694)

Application :-
  • PVC and FR PVC 70°C cables suitable for wiring in residential and commercial infrastructure.
  • HR PVC 85°C cables are suitable for wiring in residential and commercial infrastructure for a higher ambient temperature.
  • FR-LSH cables are suitable for wiring in public places like schools, hospitals, theatres, etc. These are also suitable for fire prone areas and chemical factories.

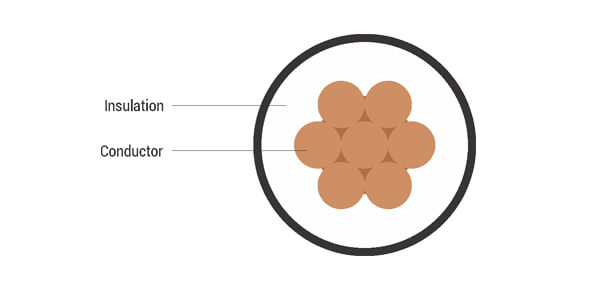

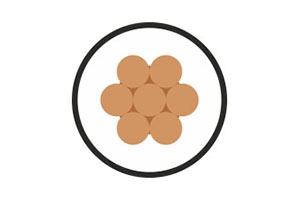

Cable Construction :-
  • Approvals : IS 694 marked, FIA/TAC

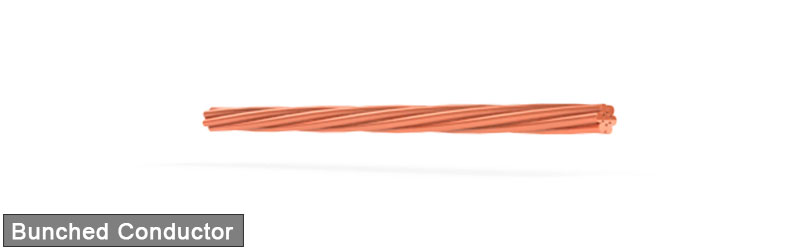

  • Conductor : Electrolytic grade annealed copper
  • Voltage : Up to and including 1100V
  • Packing : Standard packing of 100 mtr. in coil. Longer length available on request.
Chart Variants Available :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – grey, 07 – white..
Product TypeCable Size Range (Sq. mm)Specifications
PVC 70°C/HR 85°C1 x 0.5 to 630IS 694, IS 8130 Class 1 & 2,IS 5831 Type A & C
FR 70°C/HR 85°C + FR1 x 0.5 to 630S 694, IS 8130 Class 1 & 2, IS 5831 Type A & C ( FR )
FR-LSHC1 x 0.5 to 630IS 694, IS 8130 Class 1 & 2, IS 5831 Type A ( FR-LSH )
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required as per the list: 02 – black, 03 – red, 04 – blue, 05 – yellow, 07 – white, 12 – grey and (in place of ‘y’) for the insulation material required as per the list: 1 – PVC 70°C, 2 – PVC FR 70°C, 3 – PVC HR 85°C, 4 – PVC HR 85°C + FR, 5 – PVC FR-LSH.
Part NumberNominal Cross Sectional Area (Sq. mm)Conductor ClassNo. of ConductorMax. DC Conductor Resistance at 20°C (Ώ/km)Nominal Insulation Thickness (mm)Maximum Diameter Over Insulation (mm)
01110101xxy00.51136.00.62.3
01110102xxy00.751124.50.62.5
01110103xxy011118.10.62.7
01110104xxy01.51112.10.73.2
01110105xxy02.5117.410.83.9
01110106xxy04114.610.84.4
01110107xxy06113.080.85.0
01110108xxy010111.51.06.4
