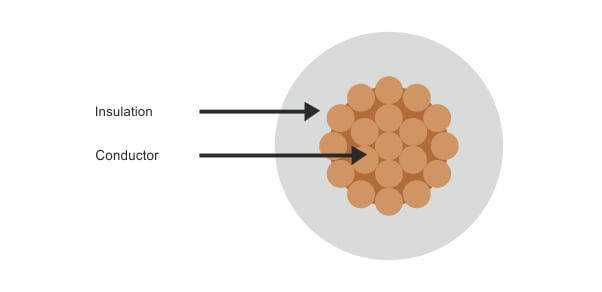

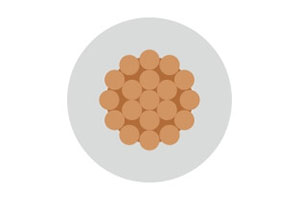

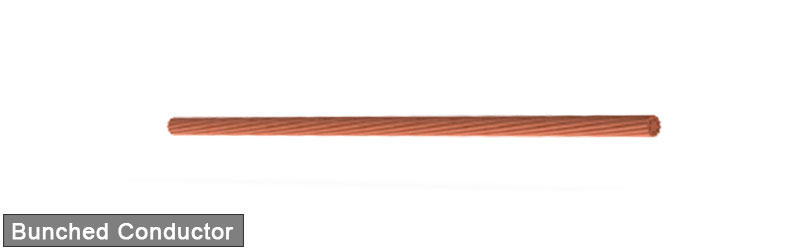

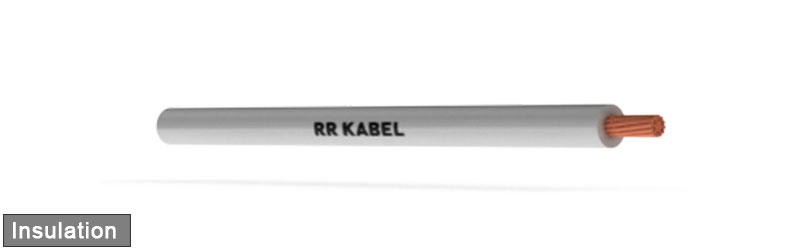

Part Number | Nominal Cross Sectional Area (Sq. mm) | No. of Strands | Max. Strand Diameter (mm) | Nominal Diameter of Conductor (mm) | Max. DC Conductor Resistance at 20 C (Ω/km) | Nominal Insulation Thickness (mm) | Nominal Overall Diameter (mm) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bare/Tinned | |||||||||||||||||
(Min.) | (Max.) | ||||||||||||||||
09030101xx30 | 0.22 | 7 | 0.21 | 0.7 | 77.9/- | 84.8/86.5 | 0.2 | 1.2 | |||||||||
09030102xx30 | 0.35 | 7 | 0.26 | 0.8 | 47.8/- | 52.0/54.5 | 0.2 | 1.3 | |||||||||
09030103xx30 | 0.5 | 19 | 0.19 | 1.0 | 34.1/- | 37.1/38.2 | 0.22 | 1.6 | |||||||||
09030104xx30 | 0.75 | 19 | 0.23 | 1.2 | 22.7/- | 24.7/25.4 | 0.24 | 1.9 | |||||||||
09030105xx30 | 1 | 19 | 0.26 | 1.35 | 17.0/- | 18.5/19.1 | 0.24 | 2.1 | |||||||||
09030106xx30 | 1.5 | 19 | 0.32 | 1.7 | 11.7/- | 12.7/13.0 | 0.24 | 2.4 | |||||||||
09030107xx30 | 2 | 19 | 0.37 | 2.0 | 8.66/- | 9.42/9.69 | 0.28 | 2.8 | |||||||||
09030108xx30 | 2.5 | 19 | 0.41 | 2.2 | 7.0/- | 7.60/7.80 | 0.28 | 3.0 |
