Our Products

POWER CORDS

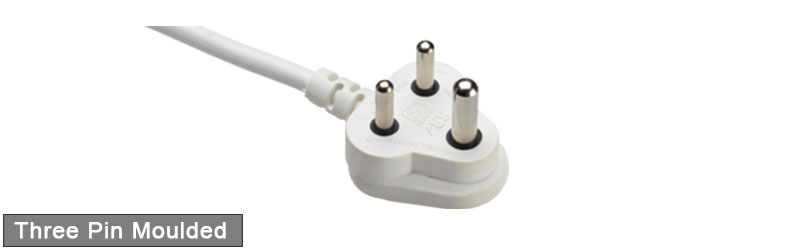

Moulded 3 Pin Cords :-
  • We provide a wide assortment of non rewireable moulded cords. Our range offers efficient performance and durability for rugged use.
  • These cords are tested for conformity to required standards. We can offer these cords in various sizes and specifications. These are extensively used in electronic industry, especially in TV, video games, DVD player, voltage stabiliser, heat convector, water immersions rods, instant water heaters and others electrical & electronic Home Appliances.

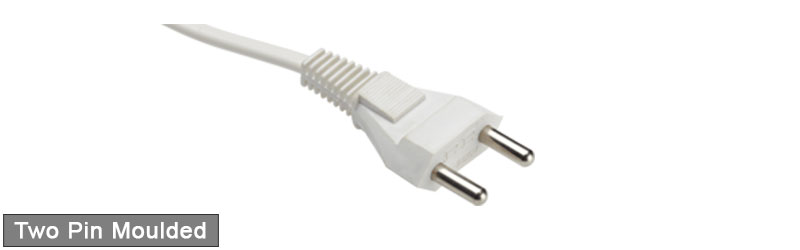

Moulded Two Pin Plug :-
  • We also produce a wide range of two pin plugs for various applications. These cords have a wide usage on various domestic electrical and electronic appliances and gadgets on which earthing is not required. Customised moulding and cable selection is also offered. The standard offer is done with cable twin flat sheathed 0.5 Sq mm.

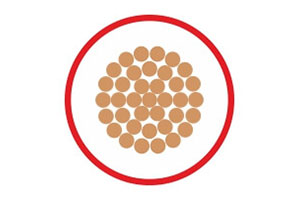

Cable Construction :-
  • The power supply cords are manufactured by using ISI marked cables. The cords are manufactured with the brass pins soldered to the cable cores. Such pins are then firstly moulded with polypropyelene which offers a high degree of dielectric strength, thereafter a final layer of coloured PVC matching to the cable jacket is moulded bearing the necessary marks and approvals. The cords for the Indian market are according to the IS 1293: 2005 approval marks.
Cable Design Parameters :-
Part NumberItemNo. of Cores and Nominal
Cross Sectional (Sq. mm)
Current Rating (A)Length
120301010001Main Power Cords3 x 0.56Available in specific length as
req. by Customer/Retail packs
1203010200013 x 0.756/16
1203010300013 x 16/16
1203010400013 x 1.516
Part NumberItemNo. of Cores and Nominal
Cross Sectional (Sq. mm)
Current Rating (A)Length
120301010001Main Power Cords3 x 0.56Available in specific length as
req. by Customer/Retail packs
