Application :-

• For flexible use with medium and free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). These cables are used for manufacturing machines, machine tools. Also used in conveyor belts and product lines.

Standard :-

• Adapted to DIN VDE 0262, DIN VDE 0281 Part 13 with increased insulation thickness for 1 kV.

Technical Data :-

• Nominal Voltage : U / U 0.6 / 1 kV O
• Insulation Resistance : Min. 20 GΩ x cm
• Temperature Range : Occasional flexing -5°C to +70°C.
• Fixed installation -30°C to +70°C
• Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 4 x cable ø
• Test Voltage : 4000V
• Breakdown Voltage : Min. 8000V

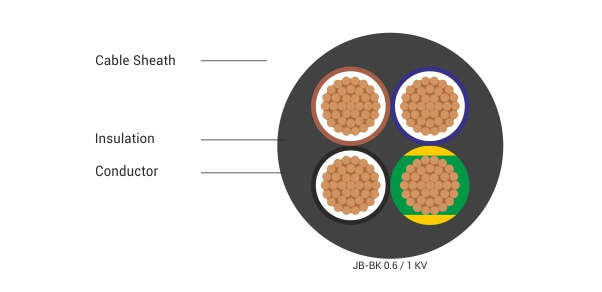

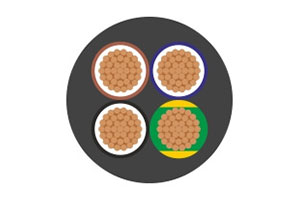

Cable Construction :-

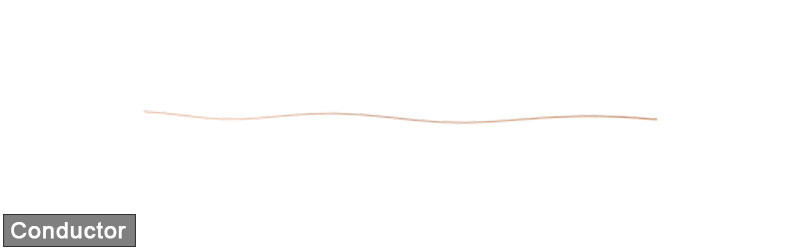

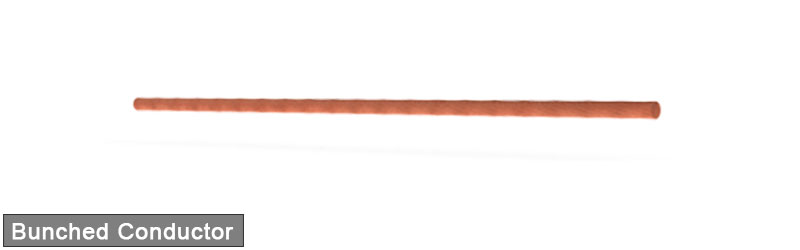

• Bare copper, fine wire conductors, to EN 60228 Cl.5.

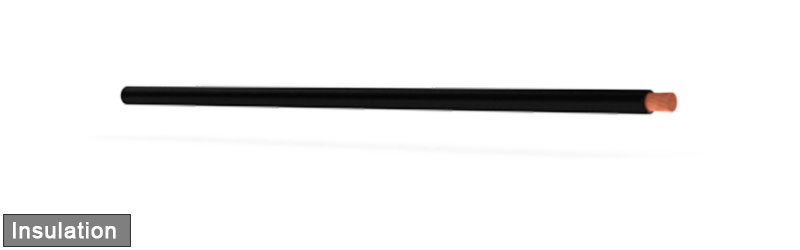

• Core insulation of PVC, TI2 to EN 50363-3.
• Cores colour coded as per JB/OB colour code.

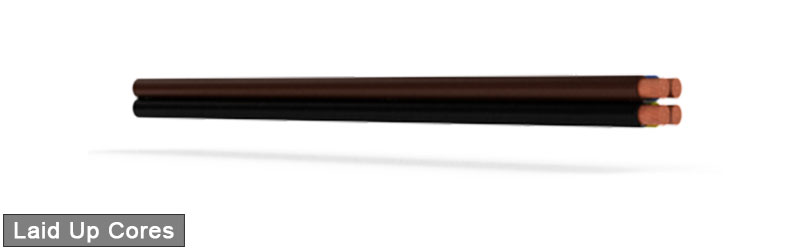

• Cores stranded in layers with optimal lay-length.

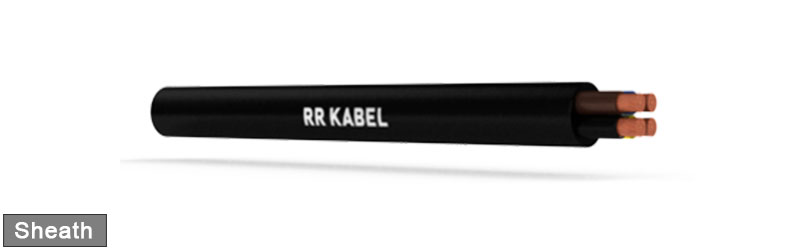

• Jacket of TM2, EN 50363-4-1, color black RAL 9005.
• Core identification code : As per VDE 0293-302/HD 308 S2

Cable Design Parameters :-

• Please complete the part numbers for these cables by adding the suffix (in place of ‘z’) for the sheath colour required, 1 – black (RAL 9005), 2 – grey (RAL 7001), 3 – white (RAL 9010).
