A2XY/2XY-3 CORE

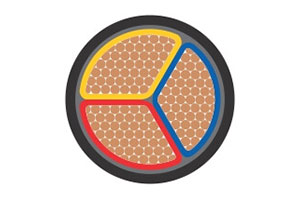

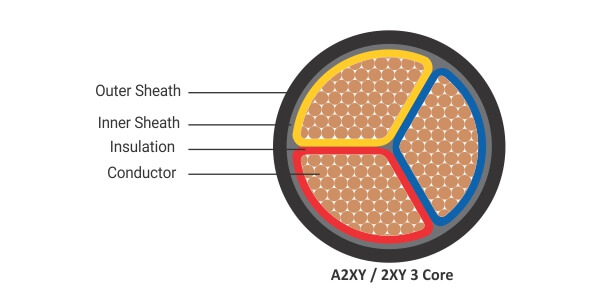

Cable Construction :-
  • 1.1 kV, 3 Cores AL / CU conductor, XLPE insulated, unarmoured cables as per IS 7098 Part – 1.

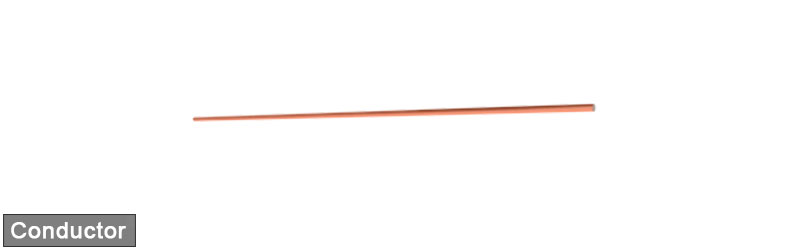

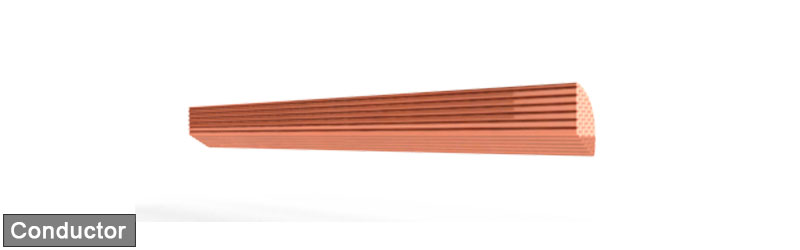

  • Conductor : AL up to 10 Sq. mm conductor are solid Cl.1 as per IS 8130. And above 10 Sq. mm conductor are stranded compacted shape Cl. 2 as per IS 8130
  • In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded Cl. 2 round as per IS 8130.
  • Above 10 Sq. mm conductor are stranded compacted shaped Cl. 2 as per IS 8130

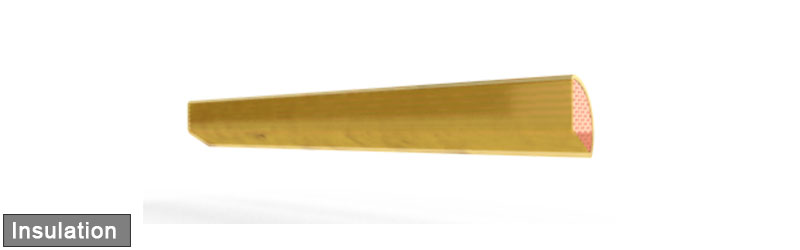

  • Insulation Material : Crosslinked polyethylene (XLPE)

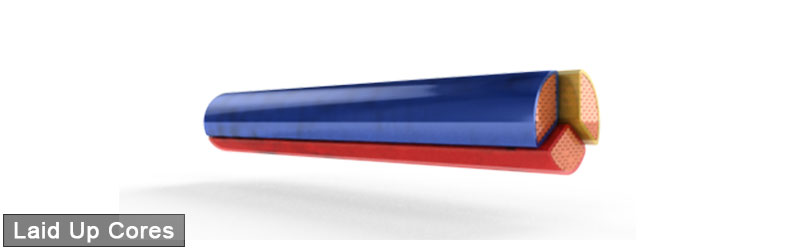

  • Core Colours : Red, yellow, blue

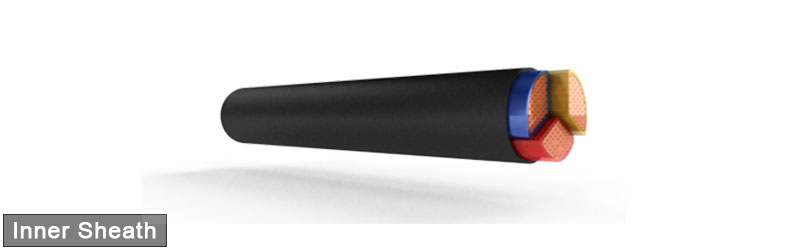

  • Inner Sheath : PVC / PVC tape as per IS 7098 (P – 1)

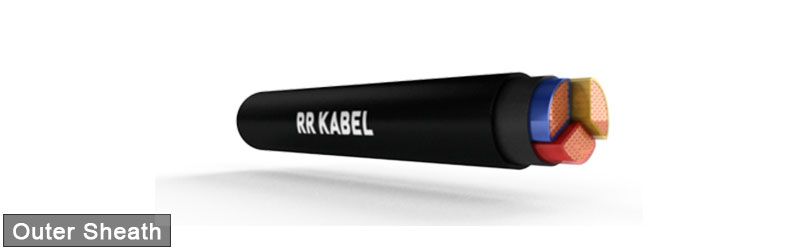

  • Outer Sheath : PVC Type ST – 2 as per IS 5831 (Option : FR Type / FRLS Type)
  • Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters :-
  • While ordering, in addition to the part number the following details shall also be advised: Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2). Sheath Type – PVC Type ST – 2 (FR or FRLS).
Part NumberNominal Cross Sectional Area(Sq. mm)Nominal Thickness of Insulation(mm)Minimum Thickness of Inner Sheath(mm)Nominal Thicknessof Outer Sheath(mm)Approx.Overall Diameter(mm)Approx. Net Wt. of Cable (kg/km)
AL Cable A2XYCU Cable 2XY
11150030000440.70.31.814170240
11150030000660.70.31.816200300
111500300010100.70.31.818250430
111500300016160.70.31.818310600
111500300025250.90.32.021470920
111500300035350.90.32.0225701210
111500300050501.00.32.0257201590
111500300070701.10.42.2309502200
111500300095951.10.42.23212502980
1115003001201201.20.42.23515203720
1115003001501501.40.52.43918404550
1115003001851851.60.52.64323105700
1115003002402401.70.62.84930107390
1115003003003001.80.63.05336009190
1115003004004002.00.73.259456011700
1115003005005002.20.73.666578014940
1115003006306302.40.73.873736019230
