SERVO FD 30810 CP

Application :-
  • Connecting between the frequency convertor and the motor for power circuits in machine cabling. In dry damp or wet interiors with normal mechanical stress conditions. For outdoor usage within the permitted range of temperature.
Technical Data :-
  • Standard :Adapted toVDE 0250/0281 / 0282
  • Nominal Voltage : UO / U 600 / 1000V.
  • Control cores 250V AC
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 12 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V
  • Control cores C / C : 1500V, C / S : 750V

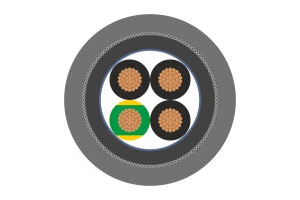

Cable Construction :-

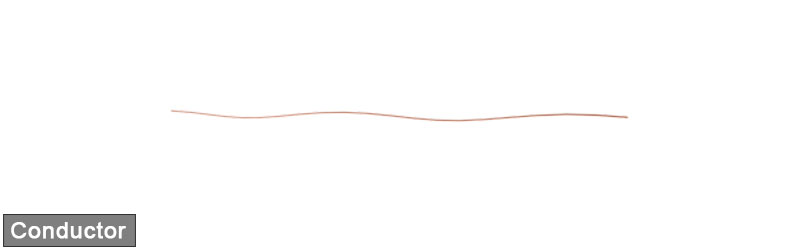

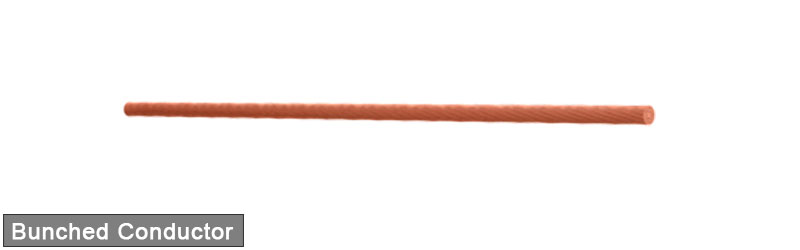

  • Bare copper, fine wire conductors, according to EN 60228 cl. 6.

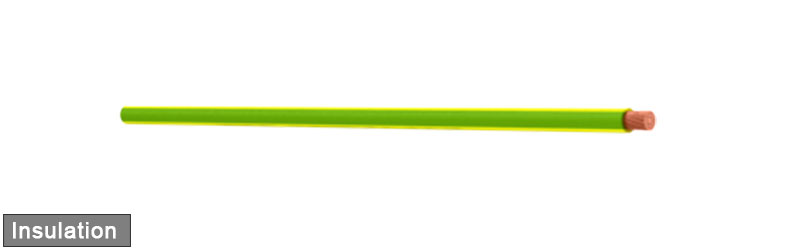

  • Core insulation of special PVC or TPE (control cores).

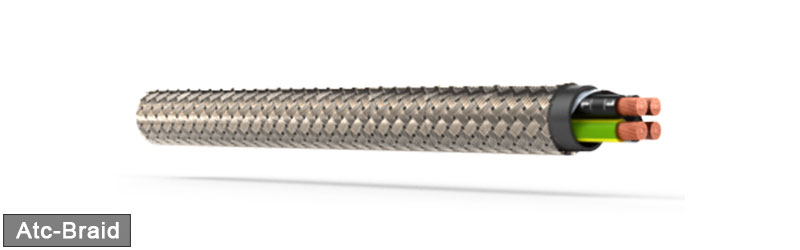

  • Control core pairs : screened with laminated film and a la yer of tinned-copper wires.

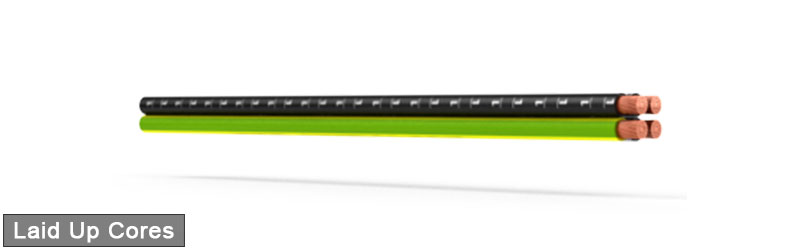

  • Cores and pairs are twisted together.

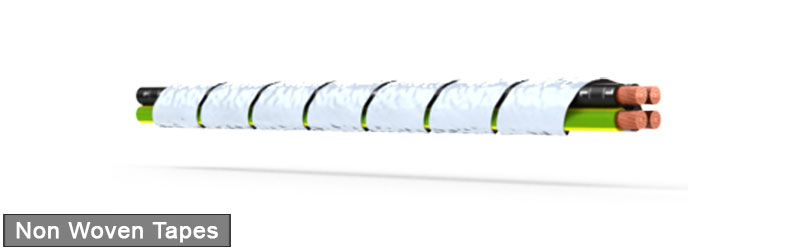

  • Non woven wrapping.

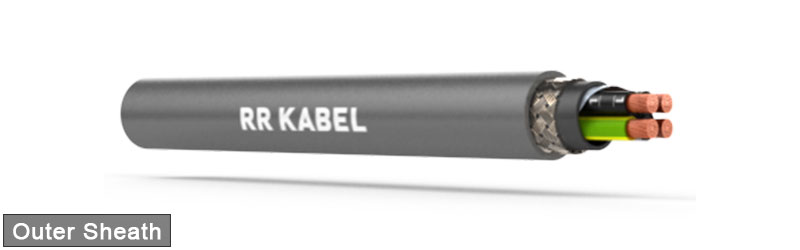

  • Outer sheath : Extruded PUR compound, grey (RAL 7001).
Cable Design Parameters :-
Part NumberNo. of Cores & Nominal Cross Sectional Area(Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0415002010502 x 0.57.224.572
0415003110503G 0.57.530.281
0415004110504G 0.58.136.396
0415005110505G 0.58.642.4110
0415007110507G 0.59.154.3130
04150121105012G 0.511.584.2207
0415002010752 x 0.757.630.683
0415003110753G 0.758.139.599
0415004110754G 0.758.647.2114
0415005110755G 0.759.156.6132
0415007110757G 0.759.971.7160
04150121107512G 0.7512.5117.1261
04150161107516 G 0.7513.8149.1325
04150181107518G 0.7514.4166.1358
04150251107525G 0.7516.5221.4475
0415002000012 x 18.137.397
0415003100013G 18.447.3111
0415004100014G 18.958.8130
0415005100015G 19.769.4154
0415007100017G 110.492.1189
04150121000112G 113.2145.7305
04150181000118G 115.4210.4426
04150251000125G 117.4286.0563
0415002011052 x 1.58.948.2120
0415003111053G 1.59.364.0142
0415004111054G 1.510.082.3172
0415005111055G 1.510.596.8196
0415007111057G 1.511.5128.8247
04150121110512G 1.515.2216.8424
04150181110518G 1.517.7317.5598
04150251110525G 1.520.7426.7814
0415003112053G 2.510.3100.7194
0415004112054G 2.511.3129.4241
0415005112055G 2.512.6158.5298
0415007112057G 2.513.9211.5380
04150121120512 G 2.517.5341.9609
04150141120514 G 2.518.2394.5684
0415014100044G 413.4192.3347
0415014100064G 615.8254.9477
0415014100104G 1019.3414.4737
0415014100164G 1622.0635.71049
