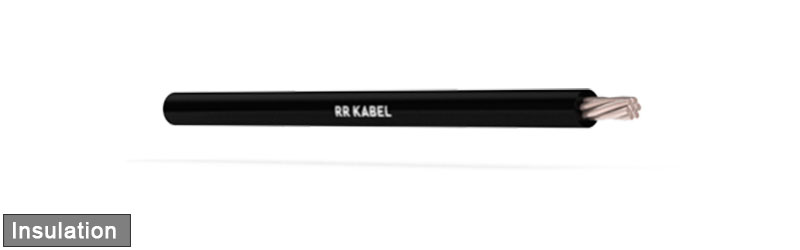

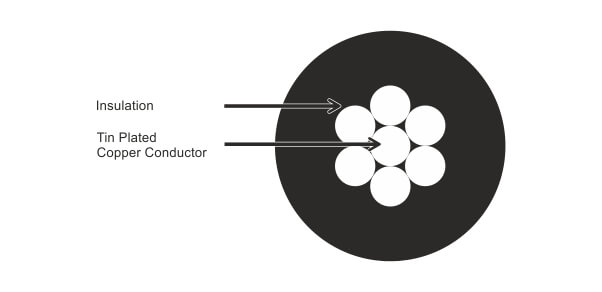

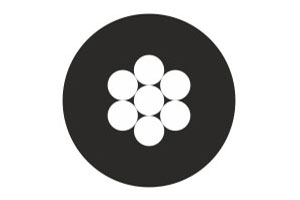

UL 1569

Applications :-
  • These cables are used for internal wiring of switchboards, electronic and electrical equipment, e. g. households, radio of televisions, monitor and control desks.
Technical Data :-
  • Standard : UL – Std. 758 , CSA C 22.2 No.210
  • NominalVoltage : 300V
  • TestVoltage : 2000V
  • TestVoltage (spark test) AWG 26-20 : 4kV, AWG 10 -18 : 5kV
  • Temperature at Conductor : Max. UL and CSA : +105°C
  • Bending Radius : Flexing 10 x cable ø’. Fixed installation 5 x cable ø

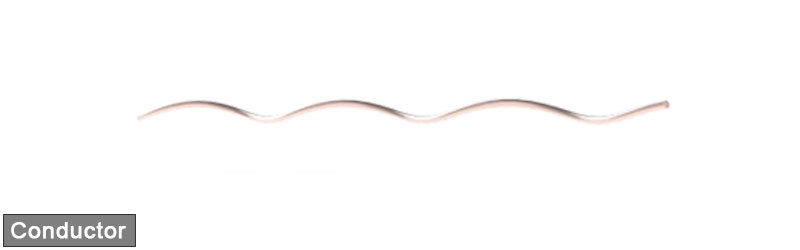

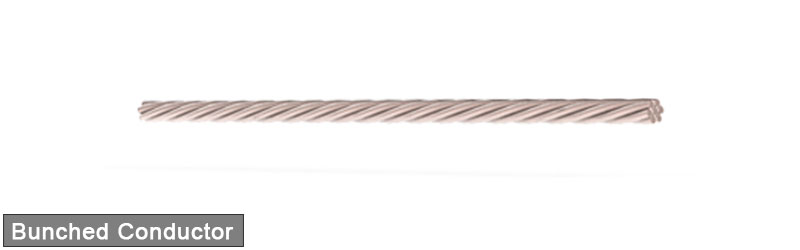

Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue
Part NumberAWG No.No. of Cores & Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx Cable Weight (kg/km)
06040101xx30261 x 0.141.31.43
06040102xx30241 x 0.211.52.14.3
06040103xx30221 x 0.331.63.55.8
06040104xx30201 x 0.521.85.28
06040105xx30181 x 0.822.18.312
06040106xx30161 x 1.322.513.518.4
06040107xx30141 x 2.08320.427.3
06040108xx30121 x 3.313.532.541.3
06040109xx30101 x 5.264.151.762.8
