SiHF

Applications :-
  • These are silicone multicore cables for use at the areas where extreme temperature changes. Silicone cables are halogen – free cables and are especially suited for installation in power stations. They have also found their use in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Due to elastical characteristic of core insulation, these are used as flexible connection cable.
Standard :-
  • Adapted to DIN VDE 0250 part 1 and part 816.
Specifications :-
  • Voltage Rating : U / U – 300 / 500V O
  • Test Voltage : 2000V
  • Temperature Range : -50°C to +180°C (up to + 200°C for short time with adequate ventilation)
  • Breakdown Voltage : Min. 5000V
  • Insulation Resistance : Min. 200 MΩ x km
  • Minimum Bending Radius : Flexing 20 x cable ø. Fixed installation 4 x cable ø

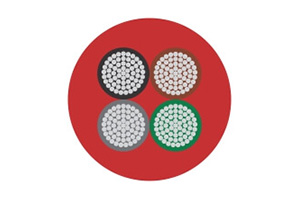

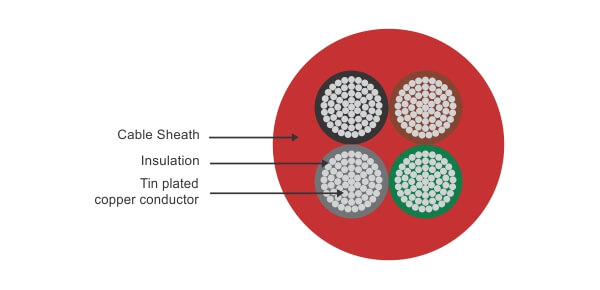

Cable Construction :-

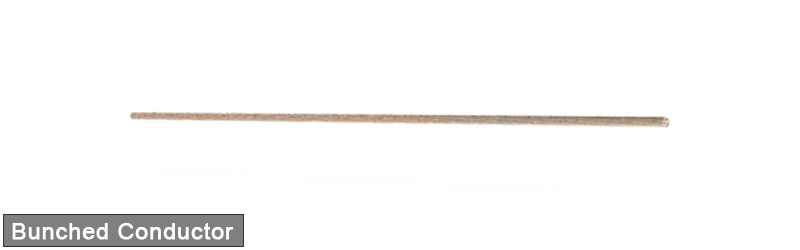

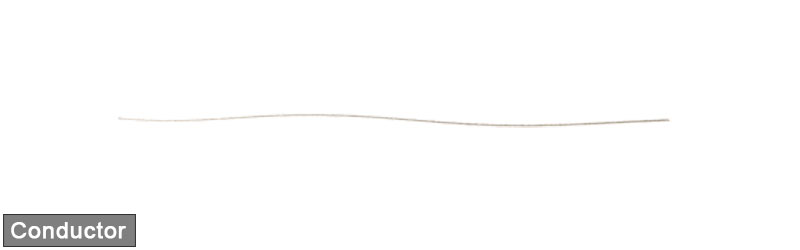

  • Tinned copper conductor to Cl. 5, EN 60228.

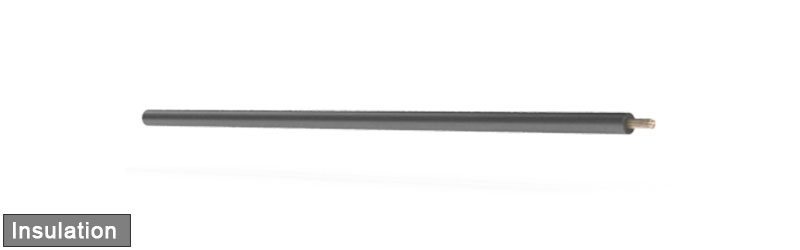

  • Silicone core insulation.
  • Core identification to DIN VDE 0293 – 308 colour coded or black cores with continuous white numbers.
  • For 2 – cores brown, blue., For 3 – cores and above cable provided without protective conductor., For 6 – cores and above all black cores with number coding.

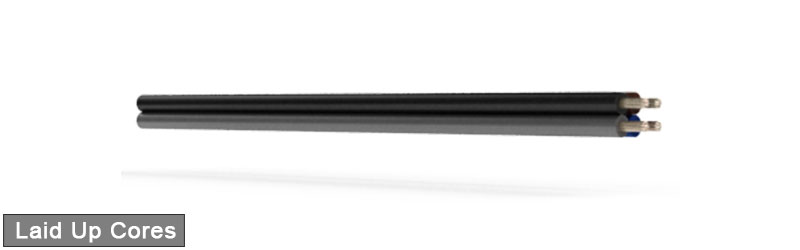

  • Cores stranded in layers with optimal lay – length.

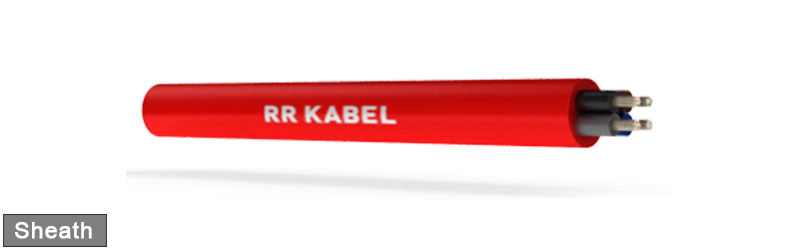

  • Outer jacket of Silicone.
  • Jacket colour preferably red brown.
Cable Design Parameters :-
Part NumberNominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
803002010502 x 0.55.6836
803003110503 x 0.55.91243
803004110504 x 0.56.51653
803005110505 x 0.57.12064
803006110506 x 0.57.72476
803007110507 x 0.57.92882
803008110508 x 0.58.832100
8030101105010 x 0.510.240131
8030121105012 x 0.510.547.9144
8030161105016 x 0.511.763.9182
8030181105018 x 0.512.371.9203
8030251105025 x 0.514.799.9287
803002010752 x 0.756.21246
803003110753 x 0.756.61856
803004110754 x0.757.22469
803005110755 x 0.757.93084
803006110756 x 0.758.636100
803007110757 x 0.758.942110
803008110758 x 0.759.947.9132
8030101107510 x 0.7511.459.9172
8030111107512 x 0.7511.871.9191
8030161107516 x 0.7513.195.9242
8030181107518 x 0.7513.8107.9270
803002000012 x 16.41652
803003100013 x 16.82464
803004100014 x 17.53279
803005100015 x 18.24096
803006100016 x 18.947.9115
803007100017 x 19.255.9127
803008100018 x 110.263.9152
8030101000110 x 111.879.9198
8030121000112 x 112.295.9221
8030161000116 x 113.6127.8281
8030181000118 x 114.3143.8314
