H05Z1-K & H07Z1-K

Application :-
  • Halogen-free single-core wires are used for installation in dry environments for wiring up lighting fixtures and units where valuable asset are to protected from further damage resulting from fire. These cables may be installed on, in and beneath plaster, as well as in close installation ducts. For use in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, etc., as well a in computer rooms, offices, production plants, switchboard wiring, laboratories, etc.
Standard :-
  • BS EN 50525-3-31.
Technical Data :-
  • Nominal Voltage : H05Z-K U / U 300 / 500V, H07Z-K U / U 450 / 750V O O
  • Harmonised Designation : 0.5 mm2 to 1 mm2 – H05Z-K, 1.5 mm2 to 240 mm2 – H07Z-K
  • Temperature Range : -30°C to +70°C
  • Minimum Bending Radius : Cable diameter ≤ 8 mm : 4 x outer diameter, Approx. diameter > 8 to 12 mm : 5 x outer diameter, Approx. diameter > 12 mm : 6 x outer diameter
  • Test Voltage : 2500V

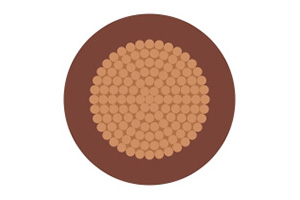

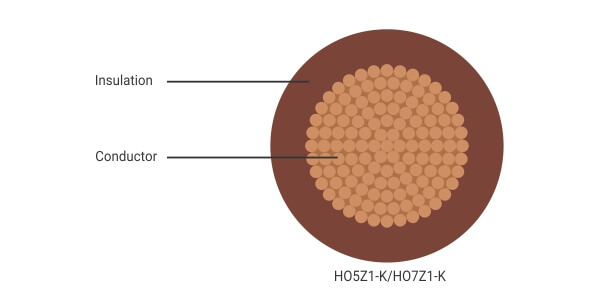

Cable Construction :-

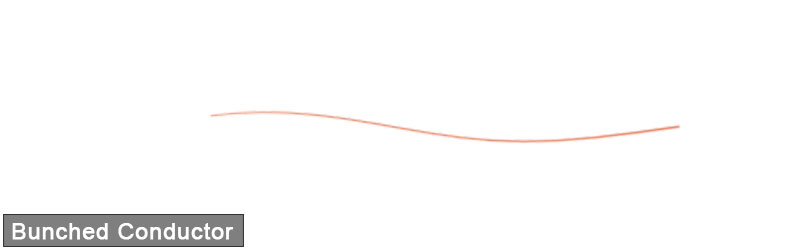

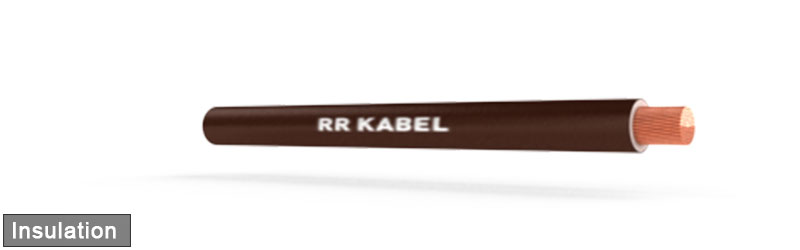

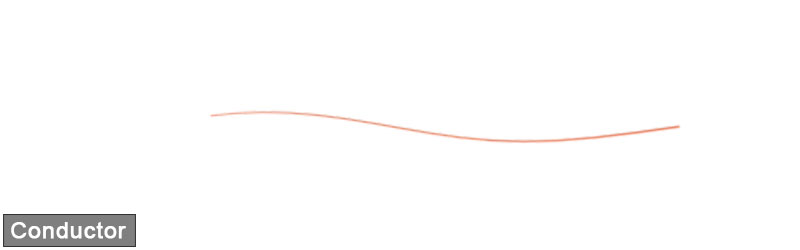

  • Conductor Class 5 flexible plain / metal coated stranded according to EN 60228. *Core insulation of thermoplastic halogen-free compound type TI7 to EN 50363-7.
Tests :-
  • Smoke density to acc. to EN 61034-2.
  • Halogen free acc. to EN 50525-1, EN 60754-1.
  • Corrosivity acc. to EN 60754-2 Ozone resistant according to EN 60811-2-1.
  • Self-extinguishing and flame retardant according to EN 60332-1-2.
  • LSOH = Low Smoke Zero Halogen-Free.
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
  • By adding the suffix (in place of ‘c’) for the conductor type required: 0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC)
Nominal CrossSectional Area (Sq. mm)Nominal Thickness of Insulation (mm)Mean Overall DiameterApprox. Cable Weight (kg/km)
Lower Limit (mm)Upper Limit (mm)
H05Z1-K02050101xx7c0.50.62.12.59.5
02050102xx7c0.750.62.22.712.5
02050103xx7c10.62.42.815.5
H07Z1-K02050104xx7c1.50.72.83.421.5
02050105xx7c2.50.83.44.133.5
02050106xx7c40.83.94.848
02050107xx7c60.84.45.367
02050108xx7c101.05.76.8113
02050109xx7c161.06.78.1171
02050110xx7c251.28.410.2262
02040111xx6c351.29.711.7360
02050112xx7c501.411.513.9513
02050113xx7c701.413.216.0705
02050114xx7c951.615.118.2931
02050115xx7c1201.616.720.21175
02050116xx7c1501.818.622.51264
02050117xx7c1852.020.624.91783
02050118xx7c2402.223.528.42341
