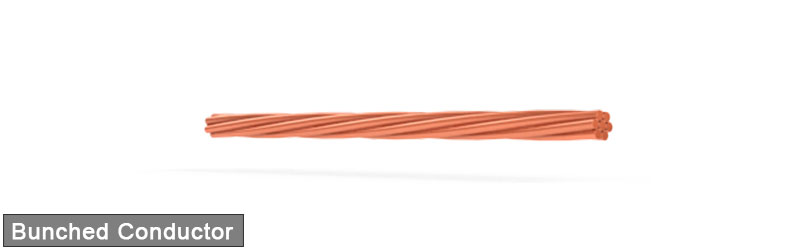

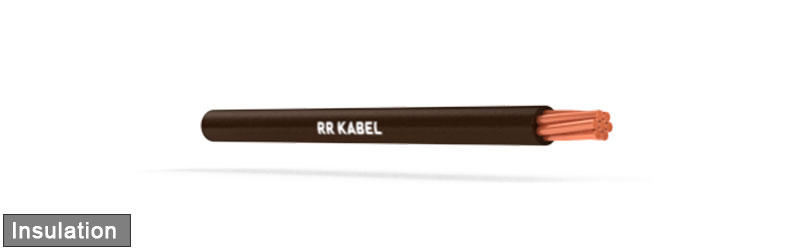

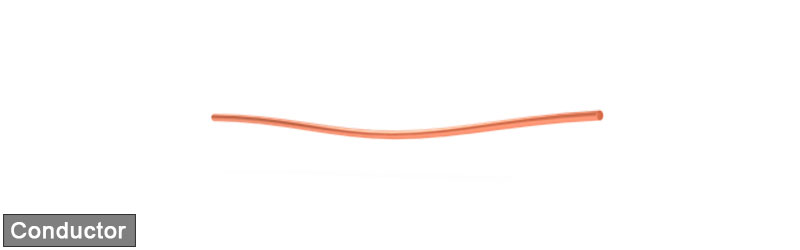

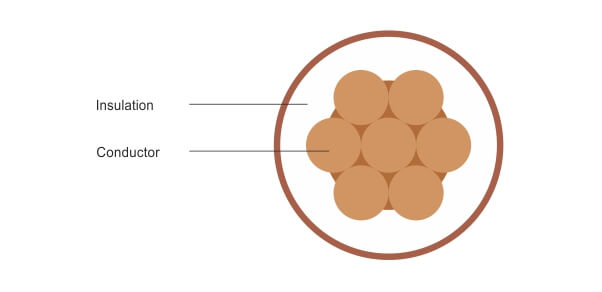

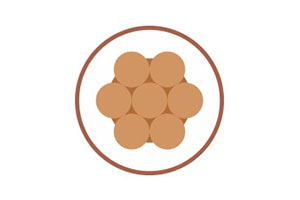

Part Number | Nominal Cross Sectional Area (Sq. mm) | Nominal Insulation Thickness (mm) | Overall Diameter Lower Limit (mm) | Overall Diameter Upper Limit (mm) | Approx. Net Weight (kg/km) |
---|---|---|---|---|---|
01140101xx10 | 1.5 | 0.70 | 2.70 | 3.30 | 19 |
01140102xx10 | 2.5 | 0.80 | 3.30 | 4.00 | 33 |
01140103xx10 | 4 | 0.80 | 3.80 | 4.60 | 50 |
01140104xx10 | 6 | 0.80 | 4.30 | 5.20 | 74 |
01140105xx10 | 10 | 1.00 | 5.60 | 6.70 | 126 |
01140106xx10 | 16 | 1.00 | 6.40 | 7.80 | 184 |
01140107xx10 | 25 | 1.20 | 8.10 | 9.70 | 295 |
01140108xx10 | 35 | 1.20 | 9.00 | 10.90 | 375 |
01140109xx10 | 50 | 1.40 | 10.60 | 12.80 | 510 |
01140110xx10 | 70 | 1.40 | 12.10 | 14.60 | 710 |
01140111xx10 | 95 | 1.60 | 14.10 | 17.10 | 950 |
01140112xx10 | 120 | 1.60 | 15.60 | 18.80 | 1240 |
01140113xx10 | 150 | 1.80 | 17.30 | 20.90 | 1530 |
01140114xx10 | 185 | 2.00 | 19.30 | 23.30 | 1800 |
01140115xx10 | 240 | 2.20 | 22.00 | 26.60 | 2500 |
01140116xx10 | 300 | 2.40 | 24.50 | 29.60 | 2990 |
01140117xx10 | 400 | 2.60 | 27.50 | 33.20 | 3860 |
01140118xx10 | 500 | 2.80 | 30.50 | 36.90 | 4900 |
01140119xx10 | 630 | 2.80 | 34.00 | 41.10 | 6370 |
Test | Test Method | Values |
---|---|---|
Limited Oxygen Index | IS 10810 P-58 | > 29% |
Limited Temp. Index | IS 10810 P-64 | >250 °C |
