JB-500

Application :-
  • For use in connections of household appliances, plant and machinery, wiring purposes and for manufacturing cords.
Standard :-
  • BS EN 50525-2-11, DIN EN 50525-2-11; VDE 0285-525-2-11, EN 50525-2-11.
Technical Data :-
  • Nominal Voltage : 300/500V (H05VV-F & H05VVH2-F); 300/300V (H03VV-F & H03VVH2-F)
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C.
  • Fixed Installation : -30°C to +70°C
  • Minimum Bending Radius : Fixed installation 5 x cable ø
  • Test Voltage : 4000V
  • Breakdown Voltage : Min. 8000V

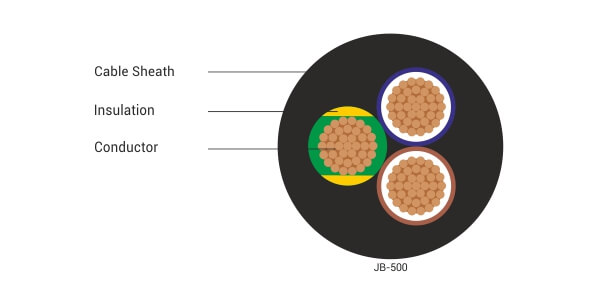

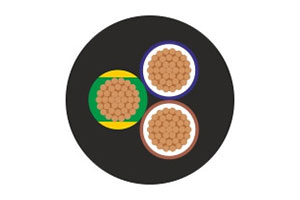

Cable Construction :-

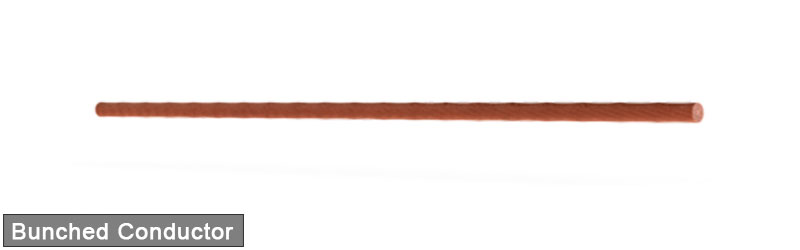

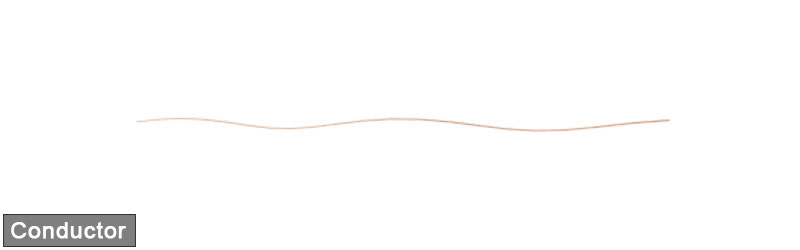

  • Bare copper, fine wire conductors, as per EN 60228 Cl.5.
  • PVC core insulation TI2, to EN 50363-3.
  • Harmonised core colour to HD 308.

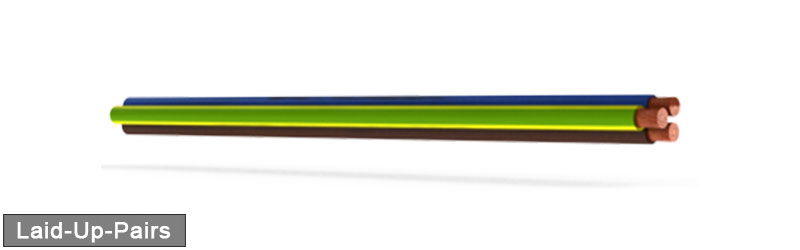

  • Cores stranded in layers with optimal lay-length.

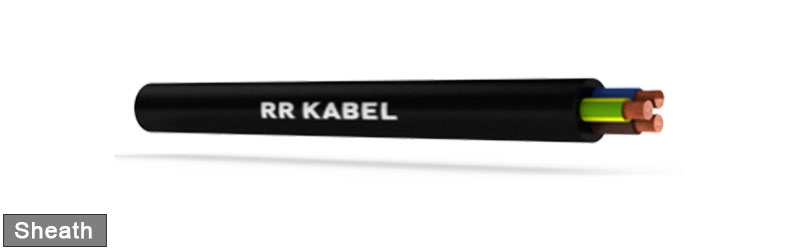

  • PVC outer sheath TM2, to EN 50363-4.1.
  • H05VV-F is also available in oil resistant variant as H05VV5-F.
  • The outer sheath provided here is of special PVC, TM5 to BS EN 50363-4.1.
Cable Design Parameters :-
Part NumberNo. of Cores and Nominal Cross Sectional Area (Sq. mm)Approx. CableDiameter (mm)
H03VV-F03030101001z2x
03030102001z2x
03030103001z3x
03030104001z3G
03030105001z3x
03030106001z3G
03030107001z4x
03030108001z4G
03030109001z4x
03030110001z4G
H03VVH2-F03030111001z2x
03030112001z2x
H05VVH2-F03030113001z2x
03030114001z2x
03030115001z2x
H05VV-F03030116001z2x
03030117001z2x
03030118001z2x
03030119001z2x
03030120001z2x
03030121001z3G
03030122001z3x
03030123001z3G
03030124001z3x
03030125001z3G
03030126001z3x
03030127001z3G
03030128001z3x
03030129001z3G
03030130001z3x
03030131001z4G
03030132001z4x
03030133001z4G
03030134001z4x
03030135001z4G
03030136001z4x
03030137001z4G
03030138001z4x
03030139001z4G
03030140001z4x
03030141001z5G
03030142001z5x
03030143001z5G
03030144001z5x
03030145001z5G
03030146001z5x
03030147001z5G
03030148001z5x
03030149001z5G
03030150001z5x
