YY/YFY/YWY-1.5 Sq. mm

Cable Construction :-
  • 1.1 kV, 1.5 Sq. mm copper conductor, PVC insulated unarmoured & galvanised steel strip / wire armoured control cables as per IS 1554 Part – 1.

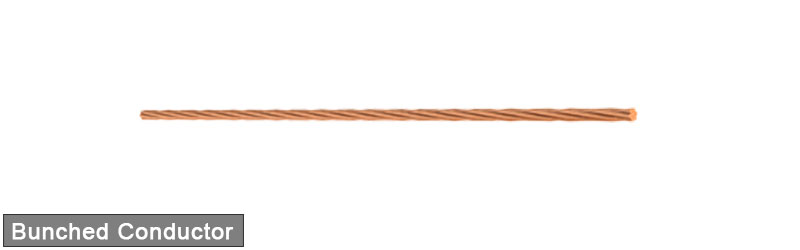

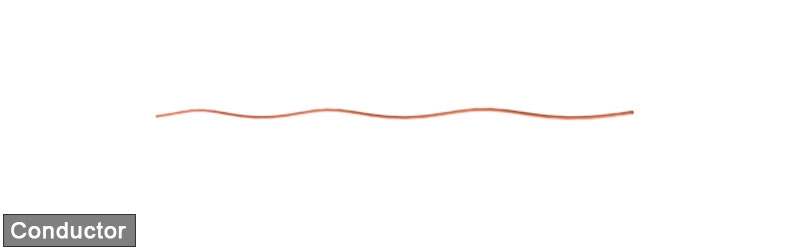

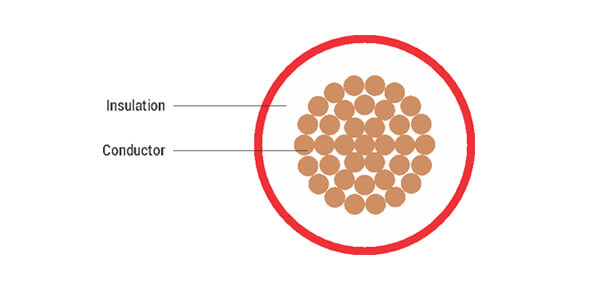

  • Conductor : CU conductor solid as per Cl.1 IS 8130 or stranded as per Cl. 2 IS 8130

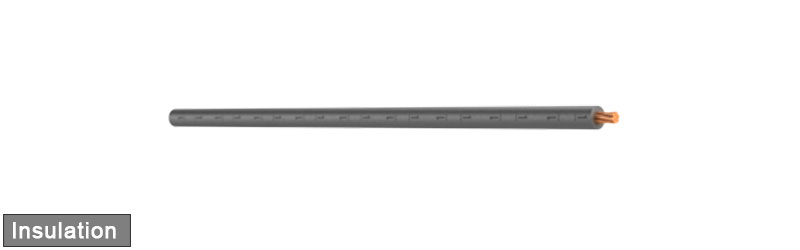

  • Insulation Material : PVC Type – A as per IS 5831 / Option : HR PVC (Type – C ) as per IS 5831. Nominal Thickness of Insulation is 0.8 mm.

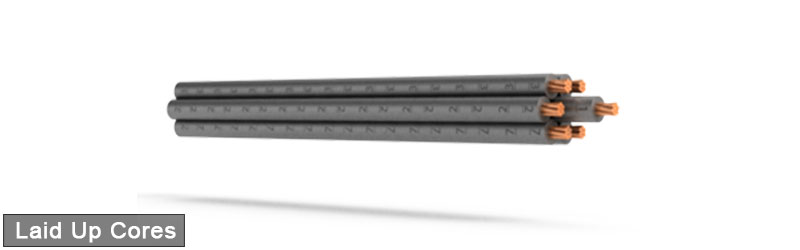

  • Core Colours : Up to 5 cores by colour coding & more than 5 cores number printing on core as per IS 1554 (P-1)

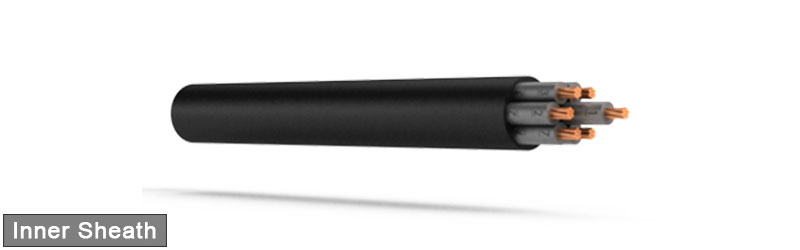

  • Inner Sheath : PVC / PVC tape as per IS 1554 (P – 1)

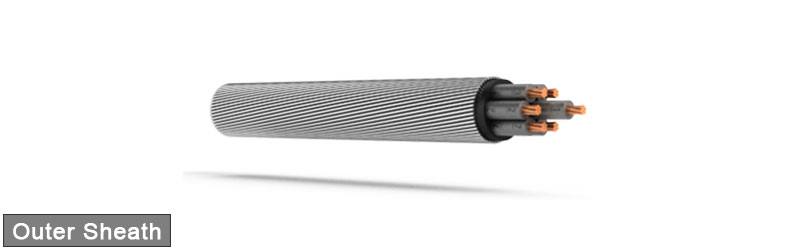

  • Armouring : Single armouring of galvanised steel strip / wire

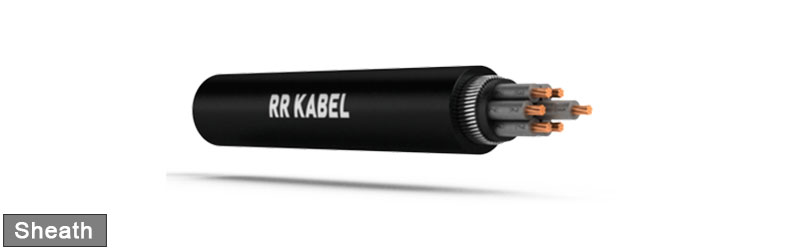

  • Outer Sheath : PVC Type ST – 1 as per IS 5831 (Option : PVC Type ST – 2 as per IS 5831, FR Type / FRLS Type)
  • Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters :-
  • While ordering, in addition to the part number the following details shall also be advised: Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2). Insulation Type – PVC Type A / C. Sheath Type – PVC Type ST-1 / FR / FRLS; PVC Type ST-2 / FR / FRLS.
PartNumberNo.of CoresMinimum Thickness of Inner Sheath (mm)Armouring with Flat AL Strip (AYFaY/YFaY)Armouring with Round Wire (AYWaY/YWaY)Armoured With Round Wire (YWY)
Nominal Thick. of Arm. Strip (mm)Approx. Overall Dia. (mm)Approx. Net Wt.of Cable(kg/km)Nominal Thickness of Stripfor Arm.(mm)Minimum Thick. of Out. Sheath (mm)Approx. Overall Dia. (mm)Approx Net Wtof Cable (kg/km)Nominal Thickness of Stripfor Arm. (mm)Minimum Thickness of Outer Sheath (mm)Approx. Overall Dia. (mm)Approx. Net Wt. (kg/km)
11110020110520.31.812180N/AN/AN/AN/A1.41.2413380
11110030110530.31.812.5200N/AN/AN/AN/A1.41.2414440
11110040110540.31.813230N/AN/AN/AN/A1.41.2415480
11110050110550.31.814250N/AN/AN/AN/A1.41.2416510
11110060110560.31.815290N/AN/AN/AN/A1.41.2417570
11110070110570.31.815310N/AN/AN/AN/A1.41.2417630
111101001105100.31.818420N/AN/AN/AN/A1.41.2420780
111101201105120.31.8194700.81.24197001.61.4021900
111101401105140.31.8205300.81.40208001.61.4022980
111101601105160.31.8216000.81.40218501.61.40231050
111101901105190.32.0227000.81.40229501.61.40241160
111102401105240.32.0258500.81.402511501.61.40271400
111102701105270.32.0269200.81.402612501.61.40281480
111103001105300.32.02710000.81.402713301.61.40291600
111103701105370.32.02812000.81.402915301.61.40301800
111104001105400.32.02912700.81.403016501.61.56321980
111104401105440.32.03114000.81.563218501.61.56342150
111105201105520.42.03316500.81.563420502.01.56362650
111106101105610.42.23518500.81.563523002.01.56382950
