SERVO FD 10855 CP

Application :-
  • In power chains or moving machine parts suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipments used in automation engineering, assembly lines, production lines, in all kinds of machines and plant engineering.
Technical Data :-
  • Standard : Requirement adapted to DINVDE 0245, 0281
  • Nominal Voltage : U / U 300 / 500V O
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -40°C to +80°C.
  • Fixed installation -50°C to +80°C
  • Minimum Bending Radius : Flexible use 7.5 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V

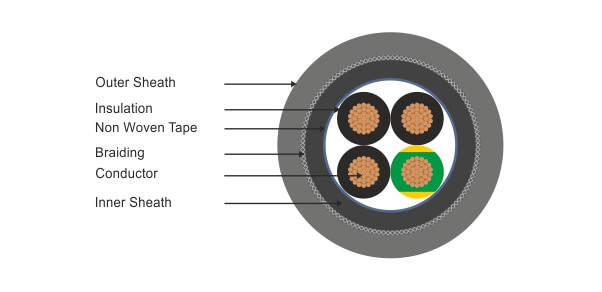

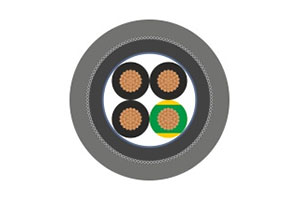

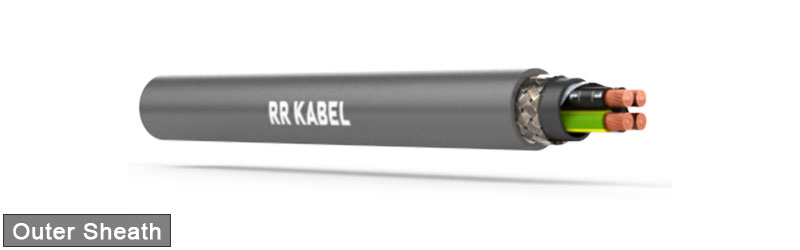

Cable Construction :-

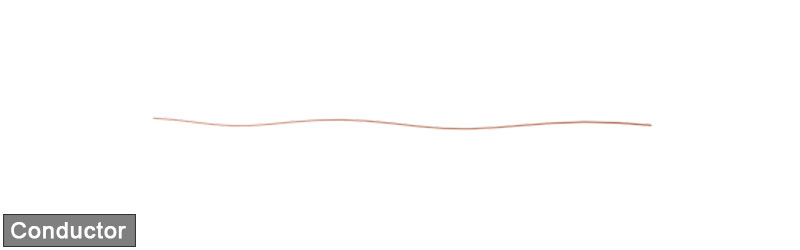

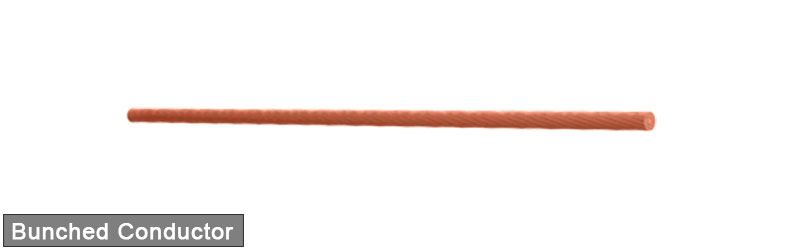

  • Bare copper, fine wire conductors, to EN 60228 Cl.6.

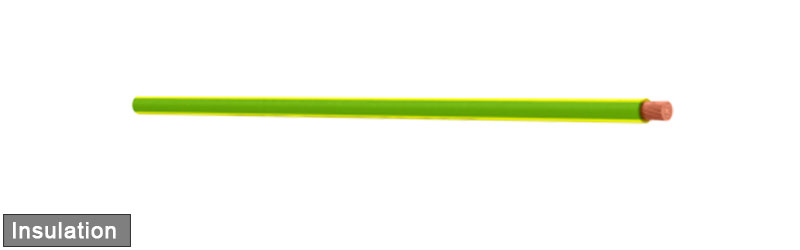

  • Core insulation of TPE.
  • Black core with continuous white numbering according to DINVDE 0293.
  • Green/yellow earth core in the outer layer (3 cores and above).

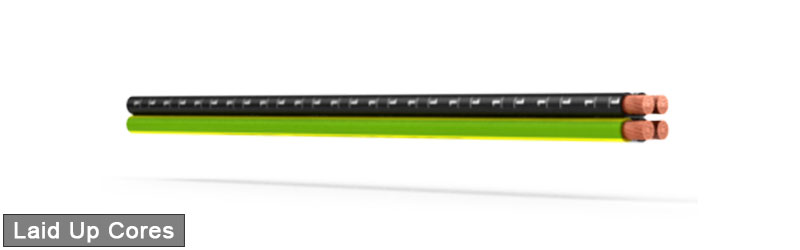

  • Cores stranded in layers with short lay-length.
  • Non woven wrapping.

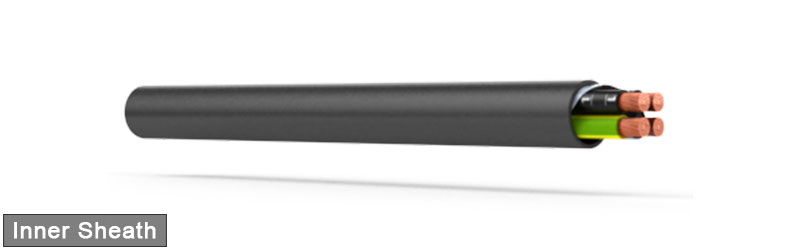

  • TPE inner sheath, grey.

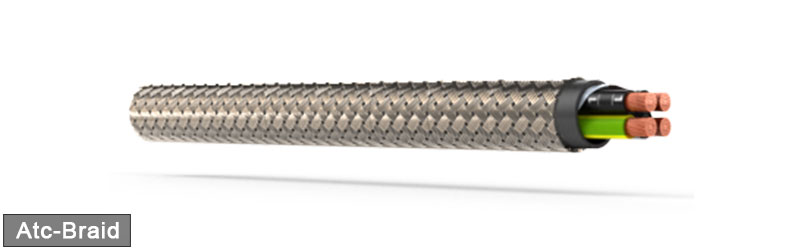

  • Tinned copper braiding.
  • Outer sheath of PUR.
  • Colour grey (RAL 7001).
Cable Design Parameters :-
Part NumberNo. of Cores & Nominal Cross Sectional Area(Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0417002010502 x 0.56.725.558
0417003110503G 0.57.130.667
0417005110505G 0.58.242.390
0417006110506 G 0.58.749.2103
0417007110507G 0.59.553.7120
04170121105012G 0.510.984.2168
04170181105018G 112.9210.4313
04170201105020 G 0.513.5128.1259
04170251105025G 0.515.0156.9319
04170301105030 G 0.515.8181.7362
04170361105036 G 0.516.9214.5420
0417002010752 x 0.757.230.667
0417003110753G 0.757.639.580
0417004110754G 0.758.347.296
0417005110755G 0.758.956.6113
0417007110757G 0.7510.671.7155
04170121107512G 0.7512.1117.1220
04170181107518G 0.7514.6166.1319
04170251107525G 0.7517.7221.4452
04170361107536G 0.7519.4306.5576
0417002000012 x 17.637.378
0417003100013G 18.147.394
0417004100014G 18.858.8114
0417005100015G 19.669.4135
0417007100017G 111.392.1185
04170121000112G 113.2145.7269
04170181000118G 115.9210.4392
04170251000125G 119.5286.0568
04170301000130 G 119.6335.1612
04170361000136 G 121.2397.8722
0417002011052 x 1.58.948.2106
0417003111053G 1.59.364.0126
0417004111054G 1.510.082.0153
0417005111055G 1.510.596.8172
0417007111057G 1.511.5128.8219
04170121110512G 1.515.2223.8385
04170181110518G 1.517.7317.5535
04170251110525G 1.520.3426.7709
04170361110536 G 1.522.7593.0938
0417003112053G 2.510.796.6178
0417004112054G 2.511.7123.6220
0417005112055G 2.512.8151.0266
0417007112057G 2.514.0211.5344
04170121120512 G 2.517.5346.5553
04170181120518G 2.520.2499.1771
04170251120525G 2.523.6675.31044
