SERVO FD 05855 P

Application :-
  • For use in power chains or moving machine parts. Suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipment used in automation engineering assembly lines, production lines and in all kinds of machines and plant engineering.
Technical Data :-
  • Standard : Requirement adapted to DINVDE 0250/0281/0282
  • Nominal Voltage : U / U 300 / 500V O
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 5 x cable ø. Fixed installation 3 x cable ø
  • Test Voltage : 4000V

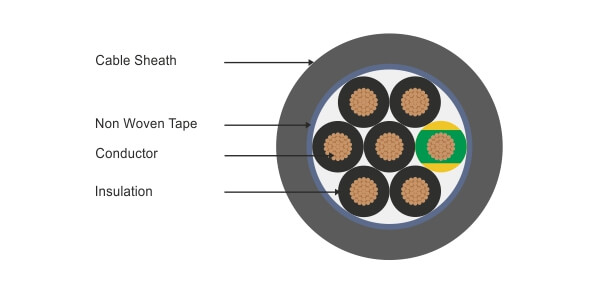

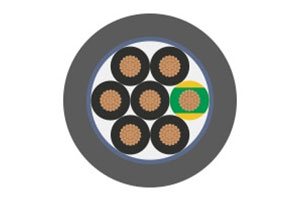

Cable Construction :-

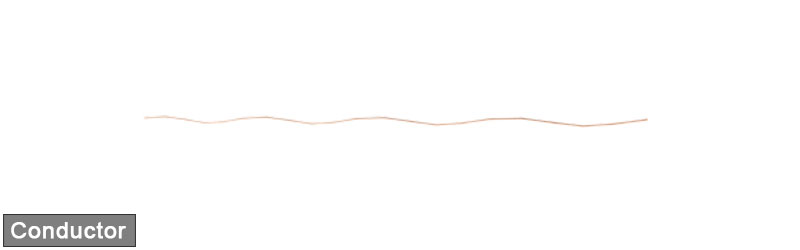

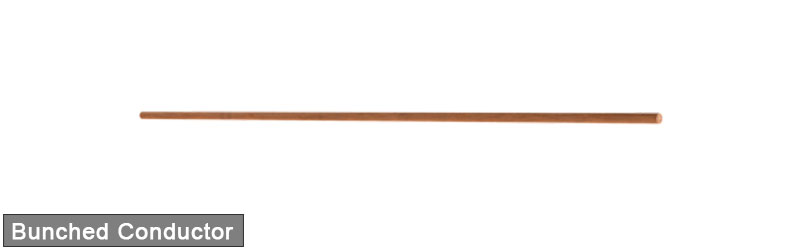

  • Bare copper, fine wire conductors, to EN 60228 Cl.6.

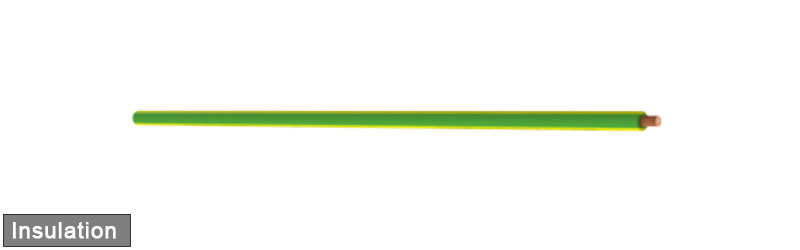

  • Core insulation of TPE.
  • Black core with continuous white numbering according to DINVDE 0293.
  • Green/yellow earth core in the outer layer (3 cores and above).

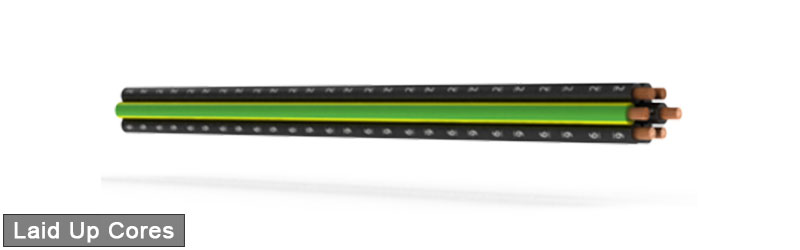

  • Cores stranded in layers with short lay-length.

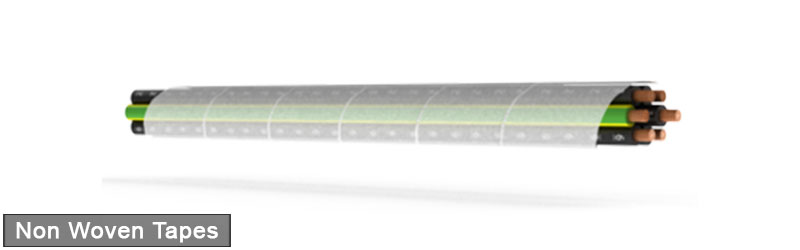

  • Non woven wrapping.

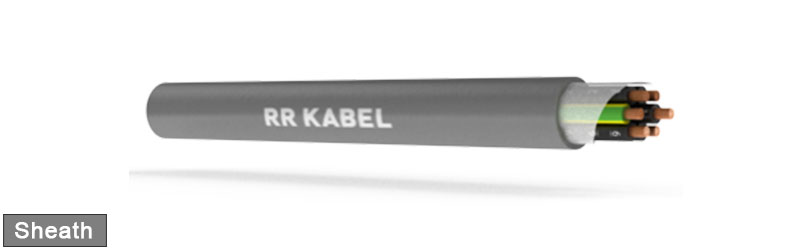

  • Outer sheath of PUR.
  • Colour grey (RAL 7001).
Cable Design Parameters :-
Part NumberNo. of Cores & Nominal Cross Sectional Area(Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0416002010502 x 0.55.19.733
0416003110503G 0.55.513.039
0416004110504G 0.56.017.449
0416005110505G 0.56.621.759
0416006110506 G 0.57.126.070
0416007110507G 0.57.730.482
04160121105012G 0.59.152.1122
04160181105018G 0.510.978.1179
04160201105020 G 0.511.586.8199
04160251105025 G 0.513.4108.5262
04160301105030 G 0.513.6130.2286
04160361105036 G 0.514.7156.2338
0416002010752 x 0.755.613.040
0416003110753G 0.756.019.551
0416004110754G 0.756.726.064
0416005110755G 0.757.332.578
0416007110757G 0.758.845.6112
04160121107512G 0.7510.378.1167
04160161107518G 0.7512.4117.2245
04160201107520 G 0.7513.3130.2278
04160251107525G 0.7515.5162.7366
04160361107536 G 0.7516.9234.3471
0416002000012 x 16.017.449
0416003100013G 16.526.062
0416004100014G 17.234.779
0416005100015G 17.843.495
0416007100017G 19.560.7137
04160121000112G 111.2104.1208
04160181000118G 113.7156.2311
04160201000120 G 114.4173.6345
04160251000125G 116.8216.9452
04160301000130 G 117.0260.3497
04160361000136 G 118.6312.4595
0416002011052 x 1.56.726.064
0416003111053G 1.57.339.184
0416004111054G 1.58.052.1105
0416005111055G 1.59.065.1132
0416007111057G 1.510.791.1186
04160121110512G 1.512.7156.2287
04160181110518G 1.515.2234.3420
04160251110525G 1.518.8325.4614
04160301110530 G 1.518.8390.5671
04160361110536 G 1.520.6468.6805
04160411110541 G 1.522.4533.7934
0416003112053G 2.58.965.1131
0416004112054G 2.59.986.8167
0416005112055G 2.511.0108.5207
0416007112057G 2.513.4151.9300
04160121120512G 2.515.8260.3460
04160181120518 G 2.518.9390.5674
04160251120525 G 2.523.5542.4989
