WELDEX-SI (Single Insulated)

Applications :-
  • The welding cable is specially designed for the transmission of high currents from the electric welding machine to the welding tool. It is suitable for flexible use under rugged conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, shipbuilding and for spot welding machines.
Technical Data :-
  • Voltage Rating : 450V a.c.r.m.s.
  • Test Voltage : 3000V
  • Temperature Range : -30°C to + 70°C
  • Minimum Bending Radius : 5 x cable diameter

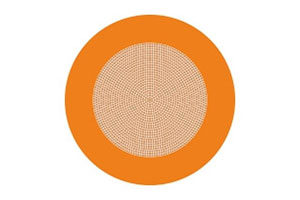

Cable Construction :-

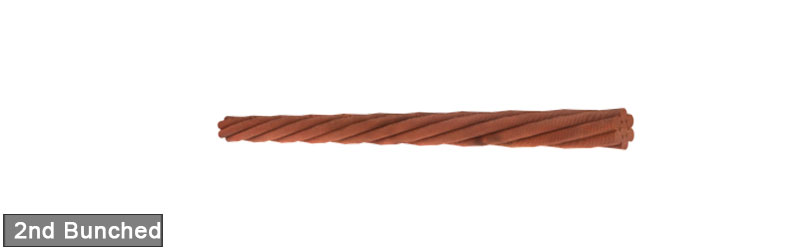

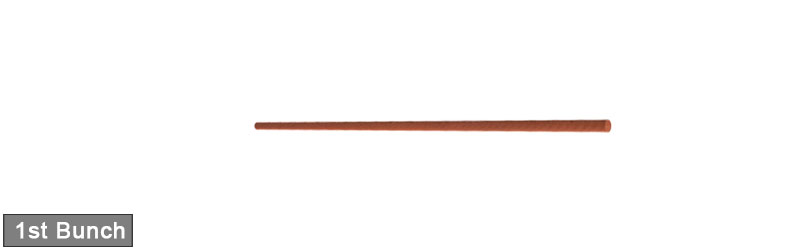

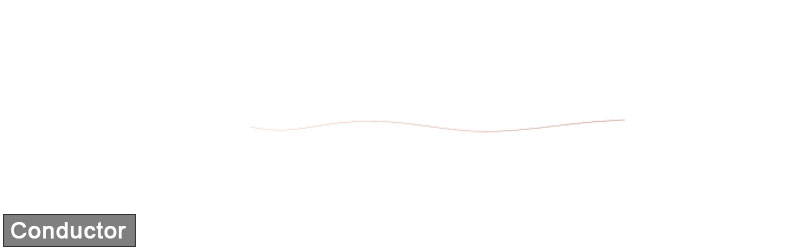

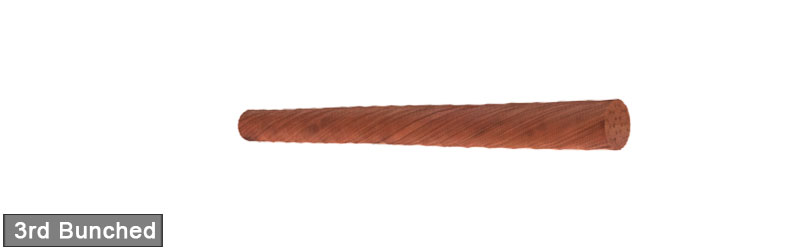

  • Super fine strands of annealed bare copper as per EN 60228, Cl. 6.

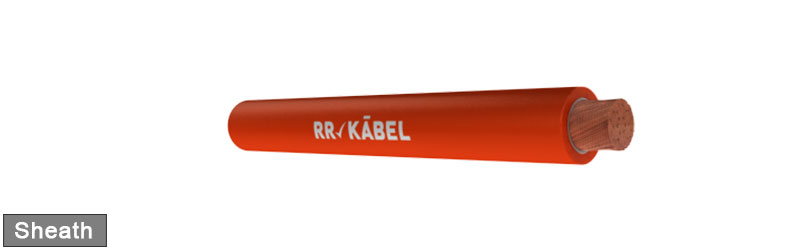

  • Elastomeric PVC insulation.
  • *Also available with TPE insulation 105°C
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘y’) for the insulation material required: 0 – TPE, 1 – Elastomeric PVC.
Part NumberNominal Cross-Sectional Area (Sq. mm)Max. Strand Diameter (mm)Max. DC Conductor Resistance (Ω/km)Total Radial Thickness of Covering (mm)Maximum Cable Diameter (mm)Approx. Weight (kg/km)
1206y0100010100.311.912.010.0140
1206y0100016160.311.212.011.5200
1206y0100025250.310.782.013.0285
1206y0100035350.310.5542.014.5375
1206y0100050500.310.3862.217.0540
1206y0100070700.310.2722.419.0740
1206y0100095950.310.2062.621.51000
1206y01001201200.310.1612.824.01230
1206y01001501500.310.1293.026.01500
