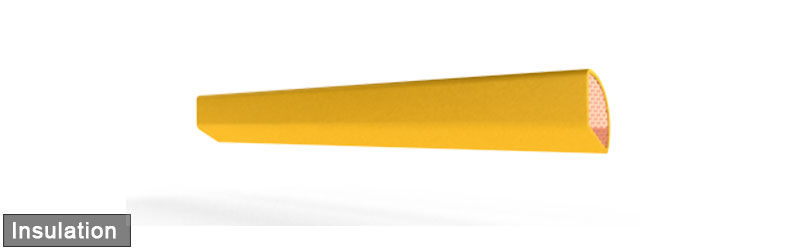

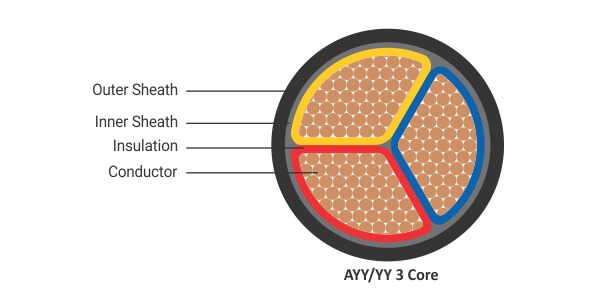

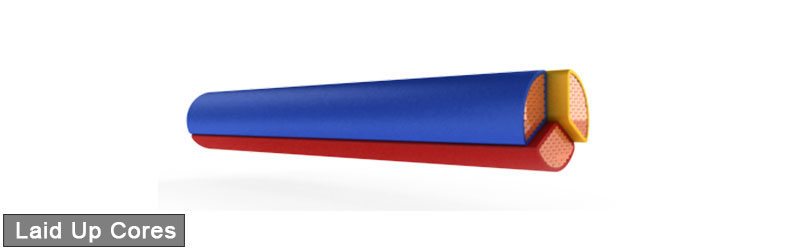

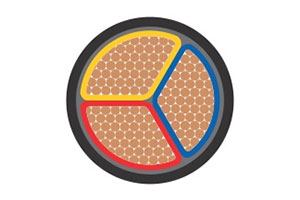

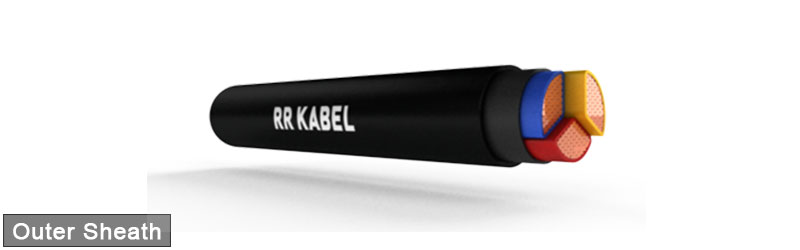

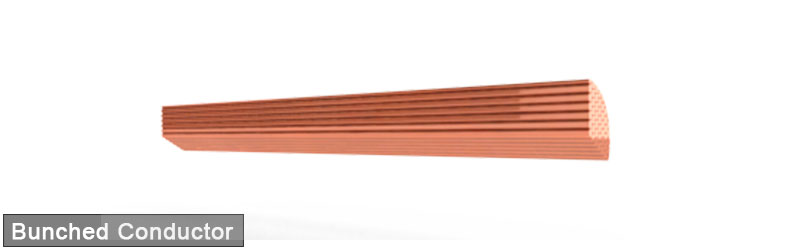

PartNumber | Nominal Cross Sectional Area (Sq. mm) | Minimum No. of Strands in Conductor | Nominal Thickness of Insulation (mm) | Minimum Thickness of Inner Sheath(mm) | Nominal Thickness of Outer Sheath(mm) | Approx. Overall Diameter(mm) | Approx. Net Wt.of Cable (kg/km) | ||
---|---|---|---|---|---|---|---|---|---|
AL | CU | AL CableAYY | CU CableYY | ||||||
110300300004 | 4 | _ | 1/7 | 1.0 | 0.3 | 1.8 | 16 | 280 | 330 |
110300300006 | 6 | 1 | 1/7 | 1.0 | 0.3 | 1.8 | 18 | 350 | 460 |
110300300010 | 10 | 1 | 6 | 1.0 | 0.3 | 1.8 | 19 | 430 | 640 |
110300300016 | 16 | 6 | 6 | 1.0 | 0.3 | 1.8 | 19 | 450 | 720 |
110300300025 | 25 | 6 | 6 | 1.2 | 0.3 | 2.0 | 22 | 610 | 1070 |
110300300035 | 35 | 6 | 6 | 1.2 | 0.3 | 2.0 | 24 | 730 | 1390 |
110300300050 | 50 | 6 | 6 | 1.4 | 0.3 | 2.0 | 27 | 930 | 1860 |
110300300070 | 70 | 12 | 12 | 1.4 | 0.4 | 2.2 | 30 | 1190 | 2490 |
110300300095 | 95 | 15 | 15 | 1.6 | 0.4 | 2.2 | 34 | 1590 | 3340 |
110300300120 | 120 | 15 | 18 | 1.6 | 0.4 | 2.2 | 37 | 1890 | 4090 |
110300300150 | 150 | 15 | 18 | 1.8 | 0.5 | 2.4 | 40 | 2290 | 5090 |
110300300185 | 185 | 30 | 30 | 2.0 | 0.5 | 2.6 | 44 | 2740 | 6190 |
110300300240 | 240 | 30 | 34 | 2.2 | 0.6 | 2.8 | 50 | 3490 | 7940 |
110300300300 | 300 | 30 | 34 | 2.4 | 0.6 | 3.0 | 55 | 4290 | 9890 |
110300300400 | 400 | 53 | 53 | 2.6 | 0.7 | 3.4 | 62 | 5430 | 12790 |
110300300500 | 500 | 53 | 53 | 3.0 | 0.7 | 3.6 | 69 | 6900 | 16190 |
110300300630 | 630 | 53 | 53 | 3.4 | 0.7 | 4.0 | 77 | 8690 | 20390 |
