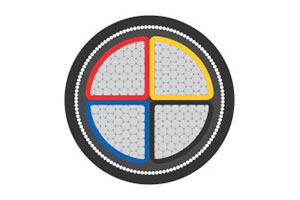

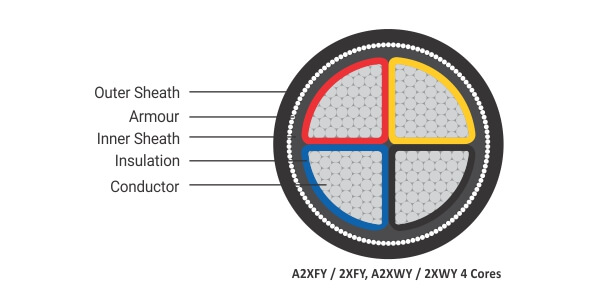

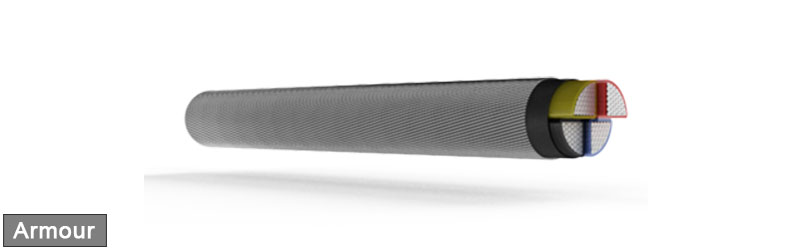

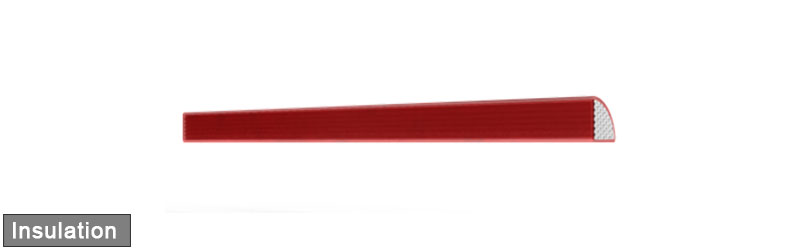

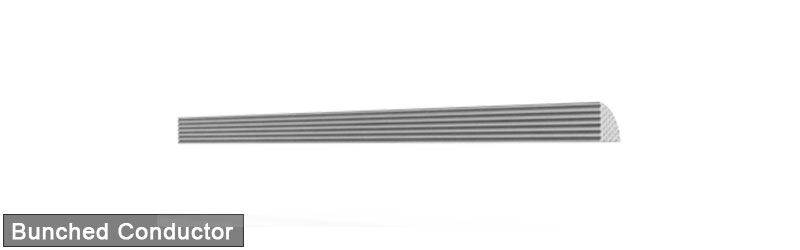

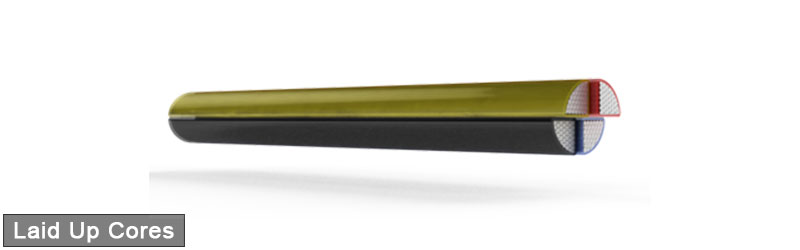

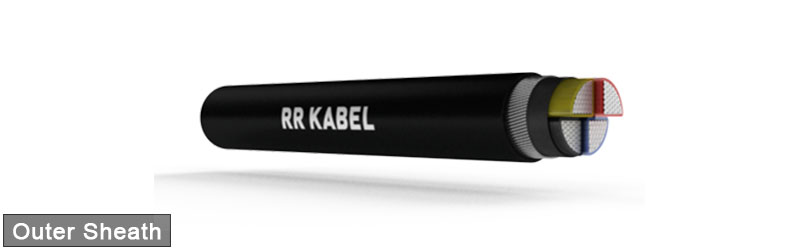

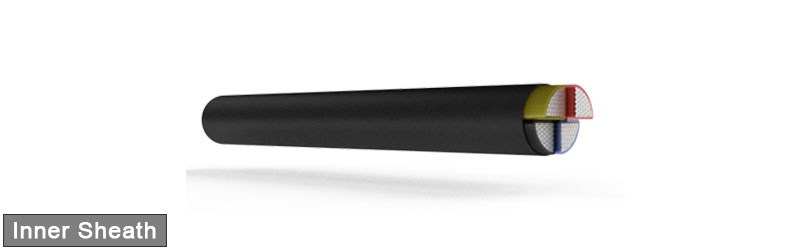

| PartNumber | Size Cores x Sq. mm +Neutral(Sq. mm) | Nominal Thickness of Insulation (mm) | Minimum Thickness of Inner Sheath(mm) | Armouring with flat strip (A2XFY/ 2XFY) | Armouring with round wire (A2XWY/ 2XWY) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Thickness of Arm.Strip(mm) | Minimum Thickness of OuterSheath(mm) | Approx.OverallDia.(mm) | Approx. Net Wt.of Cable (kg/km) | Nominal Diameter of Wire(mm) | Minimum Thickness of OuterSheath (mm) | Approx. Overall Dia.(mm) | Approx. Net Wt.of Cable (kg/km) | ||||||
| AL Cable A2XFY | CU Cable2XFY | AL Cable A2XFY | CU Cable 2XWY | ||||||||||
| 112200400004 | 4 | 0.7 | 0.3 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 18 | 540 | 640 |
| 112200400006 | 6 | 0.7 | 0.3 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 19 | 590 | 760 |
| 112200400010 | 10 | 0.7 | 0.3 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.40 | 21 | 655 | 940 |
| 112200400016 | 16 | 0.7 | 0.3 | 0.8 | 1.40 | 20 | 700 | 1100 | 1.6 | 1.40 | 22 | 920 | 1280 |
| 112200400025 | 25 | 0.9 | 0.3 | 0.8 | 1.40 | 24 | 900 | 1500 | 1.6 | 1.40 | 26 | 1185 | 1750 |
| 112200400035 | 35 | 0.9 | 0.3 | 0.8 | 1.40 | 27 | 1100 | 2000 | 1.6 | 1.40 | 28 | 1420 | 2185 |
| 112200400050 | 50 | 1.0 | 0.3 | 0.8 | 1.56 | 30 | 1400 | 2500 | 1.6 | 1.56 | 32 | 1730 | 2830 |
| 112200400070 | 70 | 1.1 | 0.4 | 0.8 | 1.56 | 34 | 1800 | 3400 | 2.0 | 1.56 | 37 | 2375 | 3980 |
| 112200400095 | 95 | 1.1 | 0.4 | 0.8 | 1.56 | 37 | 2200 | 4400 | 2.0 | 1.72 | 40 | 2870 | 5130 |
| 112200400120 | 120 | 1.2 | 0.5 | 0.8 | 1.72 | 41 | 2700 | 5600 | 2.0 | 1.88 | 44 | 3475 | 6285 |
| 112200400150 | 150 | 1.4 | 0.5 | 0.8 | 1.88 | 46 | 3200 | 6800 | 2.5 | 2.04 | 49 | 4480 | 7980 |
| 112200400185 | 185 | 1.6 | 0.5 | 0.8 | 2.04 | 51 | 3900 | 8300 | 2.5 | 2.20 | 54 | 5185 | 9680 |
| 112200400240 | 240 | 1.7 | 0.6 | 0.8 | 2.20 | 57 | 4850 | 10500 | 2.5 | 2.36 | 65 | 6385 | 11985 |
| 112200400500 | 500 | 2.2 | 0.7 | 0.8 | 2.84 | 79 | 9000 | 21000 | 4.0 | 3.00 | 86 | 13480 | 24985 |
| 112200400630 | 630 | 2.4 | 0.7 | 0.8 | 3.00 | 88 | 11000 | 27000 | 4.0 | 3.00 | 94 | 15975 | 30485 |
